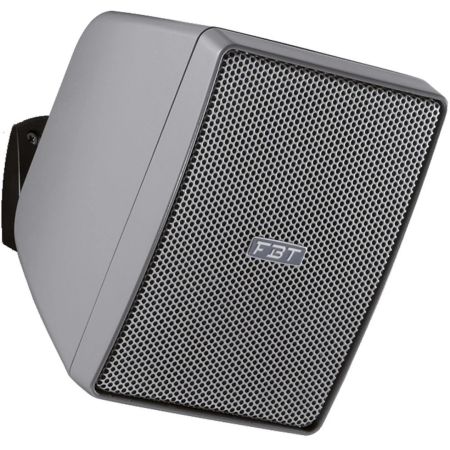

FBT SHADOW 105CT

Weatherproof Surface-Mount Speaker for Commercial Installations

The FBT SHADOW 105CT is a compact, IP55-rated 2-way loudspeaker designed for demanding indoor and outdoor audio installations. Engineered for durability and high-quality audio performance, it features a 5" woofer and 1" dome tweeter in a rugged, UV-protected polyethylene enclosure. This speaker is ideal for distributed sound systems in retail, hospitality, educational, and public environments where consistent audio coverage and weather resistance are critical.

FBT SHADOW 105CT Competitive Differences

• IP55-rated weather-resistant design for indoor and outdoor use
• Built-in 70V/100V line transformer with selectable power taps
• Wide 100° x 100° dispersion for even coverage in large areas
• Compact and lightweight at only 7.7 lbs, easy to install
• Rugged UV-protected enclosure with custom steel grille
• Includes die-cast aluminum wall bracket with multi-angle adjustment

FBT SHADOW 105CT Description

The FBT SHADOW 105CT loudspeaker delivers professional-grade sound in a compact, weatherproof design tailored for commercial and fixed-install environments. Its 2-way configuration includes a 5" low-frequency woofer with a 1" voice coil and a 1" dome tweeter, achieving a broad frequency response of 90Hz to 20kHz. With a peak SPL of 112dB, it ensures loud and clear audio in both speech and background music applications.

Built to withstand harsh environmental conditions, the SHADOW 105CT features a rotationally molded, UV-protected polyethylene cabinet and an IP55 ingress protection rating, making it suitable for outdoor venues such as patios, parks, or stadiums. Its neutral gray finish (RAL 7011) allows for discrete integration into various architectural settings.

For distributed audio applications, the integrated 70V/100V transformer and 7-wire cable provide multiple tap settings for flexible installation. A die-cast aluminum wall bracket with multi-angle tilt capabilities is included, allowing precise speaker positioning. This versatile and durable loudspeaker is ideal for any application requiring reliable, high-quality sound with minimal visual impact.

SHADOW 105CT Features

• 2-way system with 5" woofer (1" voice coil) and 1" dome tweeter
• Weatherproof IP55-rated enclosure for outdoor use
• Wide 100° x 100° dispersion for even coverage
• Built-in 70V/100V line transformer with selectable power taps
• UV-protected, rotationally molded polyethylene cabinet
• Custom perforated steel grille for driver protection
• Die-cast aluminum bracket with multi-angle adjustment
• 7-wire input cable for distributed audio configurations

SHADOW 105CT Specifications

• Configuration: 2-way passive speaker
• Power Handling: 120W RMS recommended, 60W long-term, 240W peak
• Nominal Impedance: 8Ω
• Frequency Response: 90Hz – 20kHz (-6dB)
• Low-Frequency Driver: 5" woofer with 1" voice coil
• High-Frequency Driver: 1" dome tweeter
• Sensitivity (1W/1m): 89dB
• Max SPL (Continuous/Peak): 109 / 112dB
• Dispersion: 100° x 100°
• Crossover Frequency: 3kHz
• Recommended HP Filter: 70Hz, 24dB/oct
• Input Connection: 7-wire cable with selectable transformer taps
• Enclosure: UV-protected polyethylene with steel grille
• Bracket: Die-cast aluminum, included
• Finish: Neutral gray (RAL 7011)
• Dimensions (H x W x D): 8.74" x 6.61" x 7.87" (222 mm x 168 mm x 200 mm)
• Weight: 7.7 lbs (3.5 kg)

FBT SHADOW 105CT (FBT SHADOW-105CT)
