Electro-Voice EVID-C6.2-G2

Ceiling Installation Loudspeaker

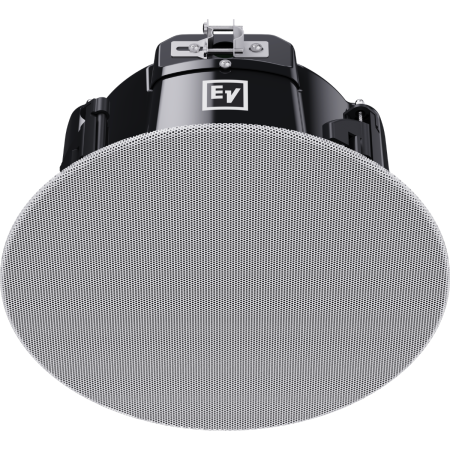

Electro-Voice EVID-C6.2-G2 is a white 6.5-inch coaxial two-way ceiling loudspeaker designed for commercial background music, foreground audio, and paging systems. Its bezel-less grille, 110° conical coverage, and SwiftLock mounting system make it practical for restaurants, retail spaces, offices, hospitality venues, and other indoor installed sound applications.

Electro-Voice EVID-C6.2-G2 Competitive Differences

• SwiftLock mounting system supports quick, safe, and reliable installation
• Front baffle wattage tap adjustment provides easy access to 70V, 100V, and 8-ohm settings

Electro-Voice EVID-C6.2-G2 Description

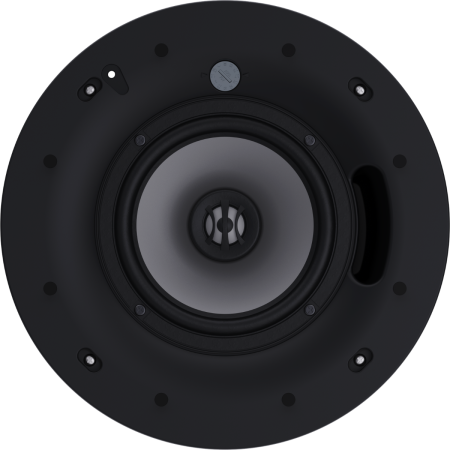

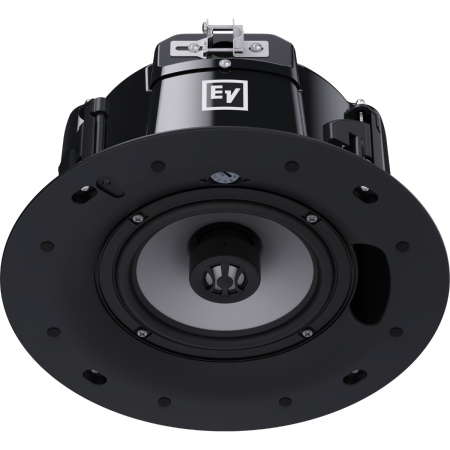

The Electro-Voice EVID-C6.2-G2 delivers clear, consistent audio from a coaxial point-source design with a 6-inch low-frequency driver and 1-inch high-frequency driver. Its 110° conical coverage helps provide uniform sound across the listening area, making it useful for distributed ceiling speaker systems.

The integrated transformer supports 70V and 100V constant-voltage systems, with selectable wattage taps on the front baffle for convenient setup. An 8-ohm bypass is also available for low-impedance amplifier configurations.

Built for commercial installation, the speaker features a UL 94V-0 rated ABS baffle, heavy-gauge coated steel rear enclosure, and semi-gloss white powder-coated steel grille. The low-profile enclosure helps fit tight ceiling spaces, while the included tile bridge and mounting ring support secure installation in drop ceilings.

EVID-C6.2-G2 Features

• White 6.5-inch coaxial two-way ceiling loudspeaker
• SwiftLock mounting system for fast and secure installation

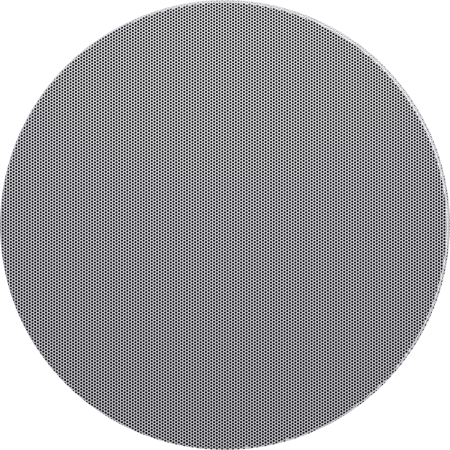

• Bezel-less design with easy-attach grille
• Front baffle wattage tap adjustment
• Point-source design for improved off-axis response
• 110° conical coverage
• 70V, 100V, and 8-ohm operation
• Includes tile bridge and mounting ring

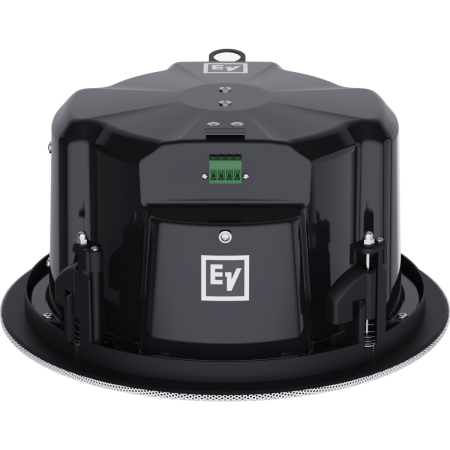

• 4-pin Euroblock connector with pass-through wiring
• Low-profile enclosure for tight ceiling spaces
• UL 1480A, UL 2043, CSA 22.2 205, and IEC 62638 certified

EVID-C6.2-G2 Specifications

• Speaker Type: Passive 2-Way Coaxial Ceiling Loudspeaker
• Frequency Range: 65 Hz – 20 kHz (-10 dB)
• Max SPL: 109 dB Continuous / 115 dB Peak
• Sensitivity: 90 dB SPL, 1W/1m
• Coverage: 110° Conical
• Power Handling: 80W Continuous / 320W Peak
• Long-Term Power Handling: 70W Continuous / 280W Peak
• Nominal Impedance: 8 Ohms
• Recommended High Pass: 60 Hz
• Transformer Taps: 70V: 30W / 15W / 7.5W / 3.75W / 1.88W
• Transformer Taps: 100V: 30W / 15W / 7.5W / 3.75W
• LF Driver: 6 in
• HF Driver: 1 in
• Connector: 4-Pin Euroblock
• Maximum Wire Size: 12 AWG / 3.3 mm²
• Material: Steel Rear Enclosure
• Grille Material: Powder-Coated Steel
• Color: White / RAL 9003 Signal White
• Mounting Cutout: 10.7 in (272 mm)
• Dimensions: 11.9 x 6 in (302 x 153.8 mm)
• Mounting Depth: 5.9 in (163 mm)
• Ceiling Thickness: 0.5 - 1.5 in (12.5 - 38 mm)
• Weight: 9 lb (4.1 kg)
• IP Rating: IP34
• Weatherization: Indoor
• Operating Temperature: 32°F – 122°F (0°C – 50°C)

What's In The Box

• Electro-Voice EVID-C6.2-G2 Ceiling Loudspeaker
• Tile Bridge
• Mounting Ring
• Easy-Attach Grille

Electro-Voice EVID-C6.2-G2 (Electro-Voice EVIDC6.2G2)
