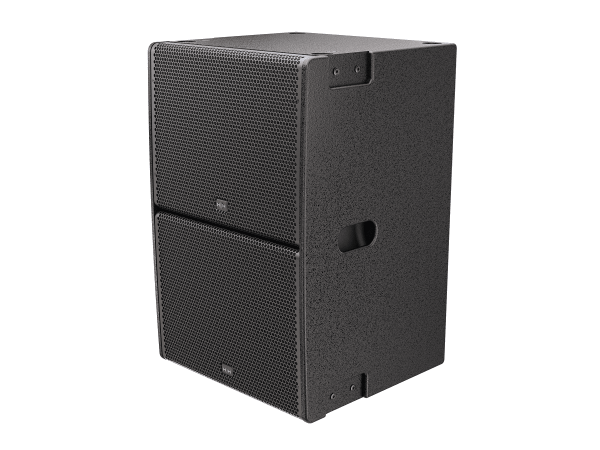

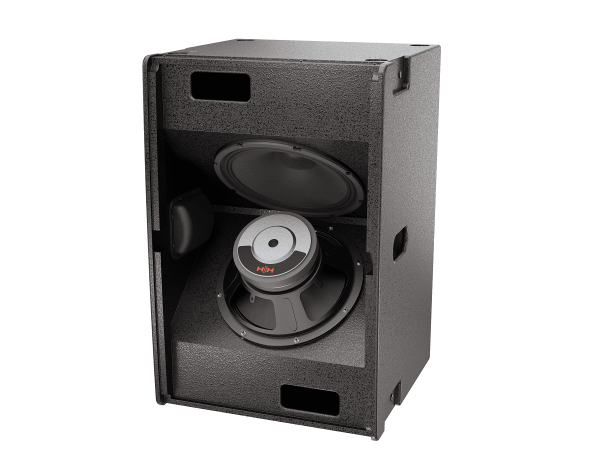

System Type 2 x12-inch Active Subwoofer, Bass Reflex, with Three channel internal amplifier (Two HF Amplifier Channels for external satellites) Frequency Response (-10) 52Hz - 200Hz Frequency Response (-3) 52Hz - 150Hz * Tuned with internal DSP Presets LF Driver 2 x 12-inch HH designed high performance driver Max SPL 134dB continuous, 137dB Peak Power System Amplifier Power Rating: 4800W Peak, 2400W Continuous, 1200W RMS
Subwoofer Amplifier Power Rating: 2400W Peak, 1200W Continuous, 600W RMS

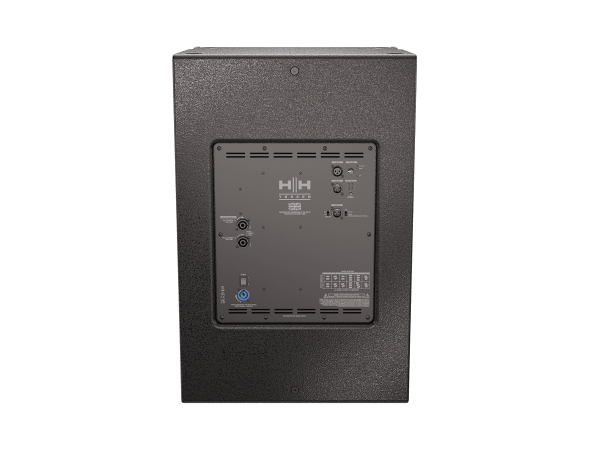

Satellite Amplifier Power Rating: Two Channels of 1200W Peak, 600W Continuous, 300W RMS Inputs Balanced XLR Connector Outputs 1 x Balanced XLR Link Out, 1 x Balanced XLR Sub out with 2 way/3 way mode switch and Ground Lift Switch. 2 x locking speakon connectors for external TNA-2051 cabinets Indicators Power, Mute/Protect, Clip Indicator, Preset Mode DSP 56bit DSP controlling Crossover, EQ, phase and time optimisation for array cabinets. Six built in DSP presets for typical use cases Protection Comprehensive protection and clip free limiting + clip indicator Controls Master Volume, DPS Preset Switch Input Impedance (Bal/Unbal) 22K Balanced, 10K unbalanced Cabinet 15mm Plywood Grille 1.5mm Thickness, Hexagonal mesh Mounting Points 8 x M8 fixings for included metal side brackets, and optional TNA-BRK1 flying bracket assembly Finish Painted Black (White finish optional, subject to MOQ) Accessories TNA-DF1 - Dolly frame Mounting Bracket TNA-BRK1 Unit Dimensions (Hwd) 730 x 475 x 460mm, 28.7" x 18.7" x 18.1" Unit Weight 36.7Kg, 80.9 lbs Carton Dimensions (Hwd) 910 x 610 x 580mm, 35.8" x 24" x 22.8" , 0.322 M3 Packed Weight 42.8Kg, 94.4 lbs
