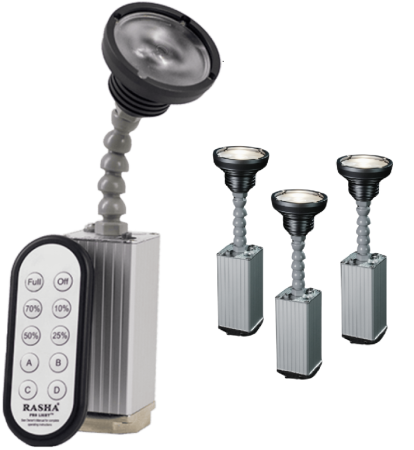

Bullet Pin Spot
Product Code: Bullet Pin Spot 10w
Bullet Pin Spot is the perfect solution for pin-spotting in a reception hall, wedding venues, and makes for the perfect pin-spotting fixture for event production professionals. Bullet Pin Spot features incredible luminous output with the monochromatic source procession calibrated at 2800 degrees Kelvin, and its new highly efficient optics produce perfect projection without hard edges and hot spots. It also has a 1 is to 5 manual zoom ratio, a range of 3 to 15 degrees, is IR remote controllable with the option to manually select brightness. Its magnetic base surface enables users to quickly mount and adjust projection direction as needed to achieve the perfect effect with its flexible gooseneck. Not only that, built in rechargeable battery features runs Bullet Pin Spot up to 10 hours in a single charge. User Friendly programming/operating, magnetic mounting, Projection direction and manual adjustable focus simplicity makes Bullet Pin Spot even better.
Easy battery operated pin spot.
Can produce soft edge projection on any object.
Flexible heads which can bend the projection angles.
Most easy, compact pinspot ever made.
User Friendly Interface.
Technical Specification
PHYSICAL
Weight 1.2 Lbs
Goose Neck 80x15x15mm (3.14x 0.59x 0.59 In.)
Head 63x63x45 mm (2.48x2.48x1.77 In.)
Dimensions 45 x 45 x 223 mm (1.75x 1.75x 8.75 in.)
DYNAMIC EFFECTS
Color Warm White
Electronic Dimming 10%/ 25%/50%/70%/100%
Color Temp 2800 K
OPTICS
Light Source 1x10 W Warm White LED Chips
LEDs Beam Angle 3° Minimum
Manual Zoom 3° to 15°
Minimum LED Lifetime 50,000 Hrs (to >70% Luminous Output)*
*Manufacturer's Figure Obtained Under Manufacturer's Test Conditions
CONTROL AND PROGRAMMING
Control Options IR Wireless Remote Control
Manual Code Selector A,B,C,D Channels
Remote Type Superior IR Technology
Controllable Distance 10 Feets
IR Remote Channels 10 Channels
Brightness Selector 0%, 10%, 50%, 100%
CONSTRUCTION
Materials Body|Head(Anodized Aluminum)
Goose Neck Thermal Plastic
Color Natural
Base Magnet Heavy Duty Magnet, Anodized
Protection Rating IP 20
ELECTRICAL
AC Power 100-240 V, 50/60 Hz
Power Consumption 10W
Battery High-Powered Lithium Battery
Battery Backup Time 6 Hrs
Battery Charging Time 4 Hrs
APPROVALS
EU Safety EN 60598-1, EN 60598-2-1, I EC/EN 60825-1 EU
EMC EN 55103-1, EN 55103-2, EN 61000-3-2
Canadian Safety (US Model) CAN/CSA C.22.2 No. 250
INCLUDED ITEMS
Charger P/N 891501
Remote ( 1 Remote per 10 Units ) P/N 891502
ACCESORIES
IR Remote* P/N 891502
Road Case 20 in 1* P/N 901306
*All Accessories Sold Separately
ORDERING INFORMATION
Bullet Pin Spot in Cardboard Box P/N 820010
Bullet Pin Spot in Charging Case 20 in 1 P/N 820012
INSTALLATION
Orientation Any
Location Indoor Use Only
THERMAL
Maximum Ambient Temperature (Ta Max.) 50° C (122° F)
Minimum Ambient Temperature (Ta Min.) 0°c (32°F)
Natural Cooling System No Fan Inside
