High-Powered 2-Channel Digital Amplifier for Installations & Touring
The

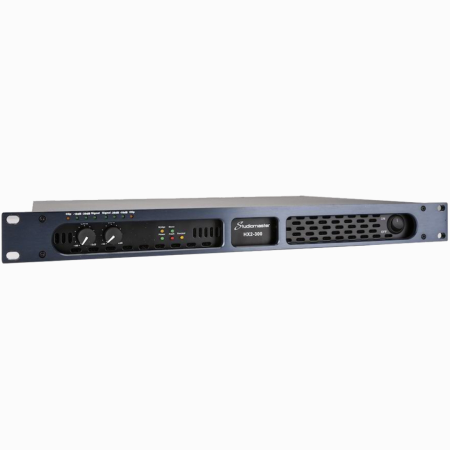

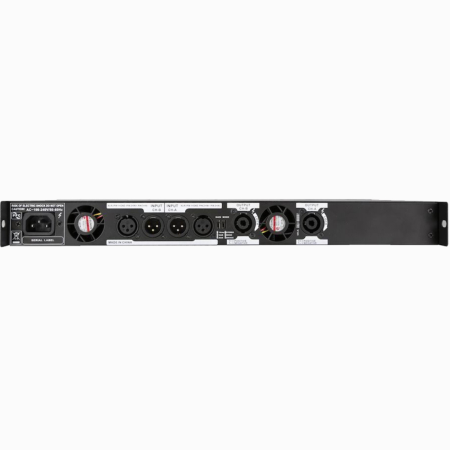

Studio Master HX2-900 is a compact, 2-channel digital power amplifier designed to deliver robust and reliable performance in demanding applications. Ideal for fixed installations, rental setups, conferences, and smaller touring rigs, the HX2-900 combines high output power, ultra-lightweight construction, and professional-grade protection circuitry—all in a space-saving 1U form factor.
Studio Master HX2-900 Competitive Differences
- Delivers up to 2 x 900 watts at 2 ohms
- Universal power supply (90–260VAC) with Power Factor Correction (PFC)
- Extremely lightweight design at just 11 lbs. (5.0 kg)
- Compact 1U rackmount chassis for space-saving integration
- Supports 2-ohm operation—ideal for low-impedance setups
- Comprehensive protection: overload, thermal, and DC output
Studio Master HX2-900 Description
The
Studio Master HX2-900 from the HX Series of digital power amplifiers is engineered to provide professional-grade audio power in a lightweight and compact format. Built to support low-impedance operation down to 2 ohms, it’s perfect for demanding environments where space and efficiency matter. The amplifier’s universal power supply with integrated PFC ensures consistent performance anywhere in the world, regardless of voltage fluctuations.
With ultra-low distortion (THD+N of 0.02%) and an impressive signal-to-noise ratio of 105dB (A-weighted), the HX2-900 ensures clean, detailed audio reproduction. Designed for durability and performance, it includes full protection against overload, thermal issues, and DC output failures, giving users peace of mind in live and installed sound environments.
HX2-900 Features
- 2-channel digital power amplifier
- Delivers high output performance in a lightweight chassis
- Universal power supply with PFC (90–260VAC, 50/60Hz)
- Compact 1U rackmount design
- Low distortion and high damping factor for superior audio clarity
- Suitable for 2-ohm operation
- Comprehensive system protections
HX2-900 Specifications
- Channels: 2
- Maximum Output Power: 900W x 2 at 2 ohms (model dependent)
- Slew Rate (1kHz, Bypass LPF): 50V/μs
- Input Sensitivity: 1Vrms @ 1kHz
- THD+N (10% rated output power): 0.02%
- IMD-SMPTE (10% rated output power): 0.05%
- DIM30 (10% rated output power): 0.05%
- Crosstalk Rejection: >80dB (20Hz – 1kHz)
- Frequency Response: ±0.2dB (20Hz – 20kHz @ 8Ω)
- Input Impedance: 20kΩ balanced / 10kΩ unbalanced
- Damping Factor (8Ω, 20Hz–100Hz): 300
- Signal-to-Noise Ratio (A-weighted): 105dB
- Power Supply: 90–260VAC, 50/60Hz
- Protection Features: Overload, thermal, and DC output
- Dimensions (W x H x D): 19.0" x 1.73" x 12.7" (483mm x 44mm x 323mm)
- Net Weight: 11 lbs. (5.0 kg)
StudioMaster HX2900
(Studio Master HX2 900)
