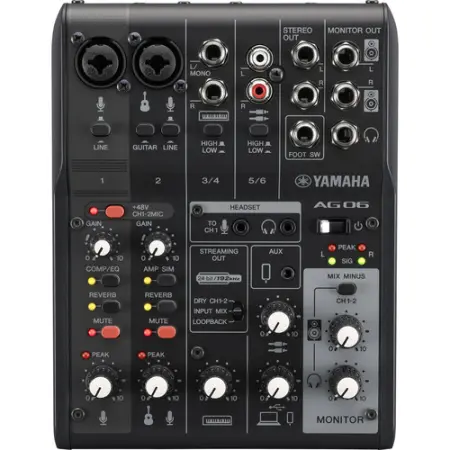

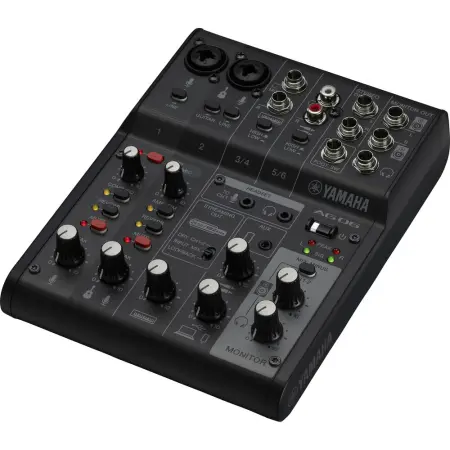

The black AG06MK2 from Yamaha is a compact 6-channel mixer and USB interface with built-in DSP for streaming, sound reinforcement, and recording small performances, podcasts, lectures, and similar applications. This updated MK2 version adds a mute button and 3.5mm TRRS input for more flexible live streaming work. It also features an improved build design with updated circuitry for better sound. Capable of recording and playback of high-resolution 24-bit / 192 kHz sound, this mixer features two XLR-1/4" combo mic/line inputs, as well as a stereo 1/4" line input pair, a stereo RCA input pair, and a 3.5mm aux input for portable music players and headsets. The mixer is compatible with Windows/Mac computers as well as iPads and iPhones.
The XLR-1/4" combo mic/line inputs feature switchable 48V phantom power for use with condenser microphones, and input 2 offers a Hi-Z switch for use with electric guitar and bass. The AG06MK2 mixer has stereo 1/4" and stereo RCA outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring.
Features:
Two Mic/Line Combo Inputs
Two 1/4" Line Inputs, Two RCA Inputs
3.5mm TRRS In/Out for Smartphone
Record & Playback up to 24-Bit / 192 kHz
Zero-Latency DSP FX, Loopback Function
48V Phantom, Hi-Z Switch for Guitar
3.5mm TRS Input for Headset/AUX
1/4" and RCA Stereo Outs
Powered via USB
Works With PC, Mac, iPhone, and iPad
Specifications:
Meters Main Meter:
2 x 2-Segment LED
Signal Processing
Dynamic Processing Input Channels:
Compressor
EQ Input Channels:
4-Band Parametric
Built-In Effects 1 x Stereo Reverb
Compatibility
Mobile Device Compatibility iPad
iPhone
Internet Connection Required for Software/Driver Download, Media Streaming
Required Hardware USB Port
Power
DC Input Power 5 VDC at 900mA (USB Bus Power)
Power Consumption 4.5 W (Maximum)
Physical
Operating Temperature 32 to 104°F / 0 to 40°C
Packaging Info
Package Weight 2.875 lb
Box Dimensions (LxWxH) 9.6 x 9.1 x 4.5"
