JMAZ Gotham Panel W8 | 96W RGB+Lime Outdoor LED Pa...
$549.95

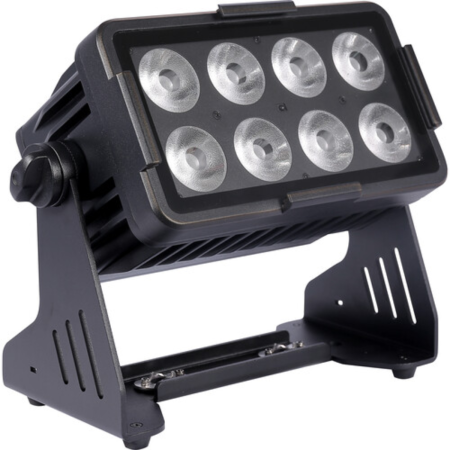

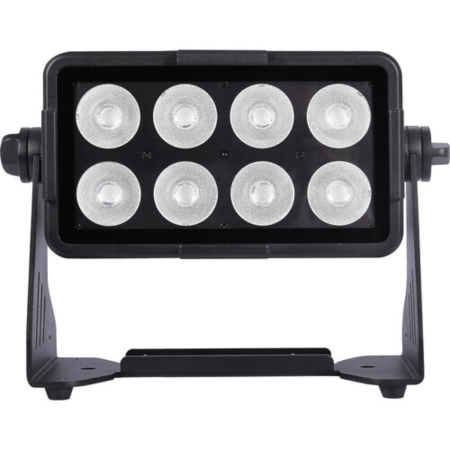

The JMAZ Gotham Panel W8 is a compact IP65-rated LED panel powered by eight 12W RGB+Lime LEDs. It delivers saturated colors, enhanced pastel tones, tunable white light, and silent fanless operation for outdoor productions, architectural lighting, houses of worship, installations, and other professional applications.
The JMAZ Gotham Panel W8 is designed for lighting professionals who need flexible color control and outdoor-ready performance in a smaller fixture. Eight high-output 12W RGB+Lime LEDs provide 96W of LED output, with the lime component helping produce nuanced pastel colors and smoother white-light reproduction.

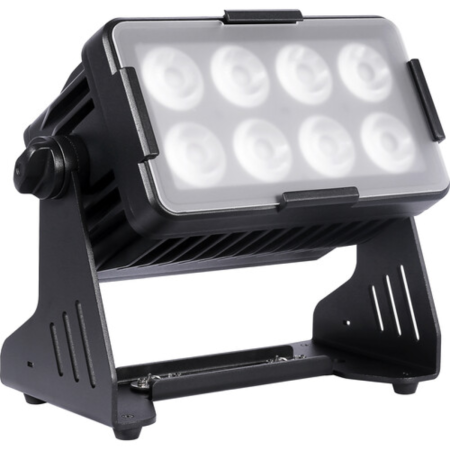

A variable color temperature range from 2300K to 8500K allows the fixture to shift from warm tungsten-style looks to cooler daylight tones. The native 20° beam angle supports focused projection, while the included 40° diffuser creates a softer and more uniform wash.
Integrated CRMX by LumenRadio enables wireless DMX operation, while DMX512, RDM, and sealed 5-pin XLR connections provide professional wired control. Seven personality options include HSV, HSI, and 3-, 4-, 6-, 11-, and 16-channel modes for both simplified and detailed programming.
For operation without a lighting console, the fixture includes 73 preset color programs, 72 automatic and fade effects, standalone color mixing, and four customizable favorite colors. These functions can be accessed through DMX, the included IR remote, or the onboard OLED graphical display.

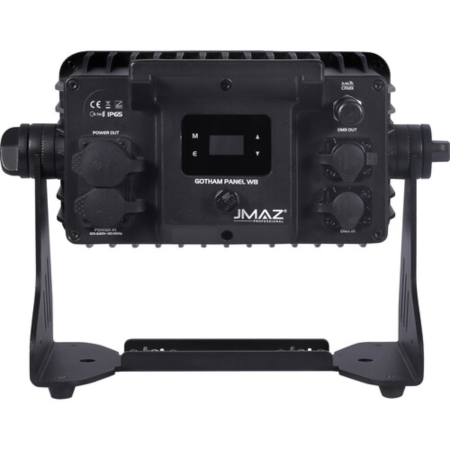

The die-cast aluminum and steel housing is IP65 rated and uses fanless cooling for silent performance. Seetronic powerCON TRUE1 IP65 connections and sealed 5-pin DMX ports support scalable touring, installation, architectural, outdoor, and house-of-worship systems.
| Beam Angle | 20° degrees |
| Frequency Response | 2300K to 8500K K |
| IP Rating | IP65 |
| LED Type | 8 RGB+Lime LEDs, 12W each |
| Power Consumption | 120W W |
| Power Rating | 96W total LED output W |
| Voltage Range | 100 to 240VAC, 50/60Hz VAC |
| Wattage | 96W W |
| Brand | JMAZ |
| Name | JMAZ Gotham Panel W8 |
| Primary Category | Outdoor RGB+Lime LED panel |
| Build Material | Die-cast aluminum and steel housing |
| Dimensions | 12.56 x 5.51 x 9.77 in inches |

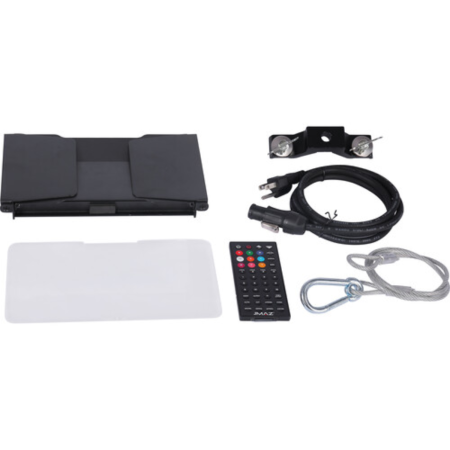

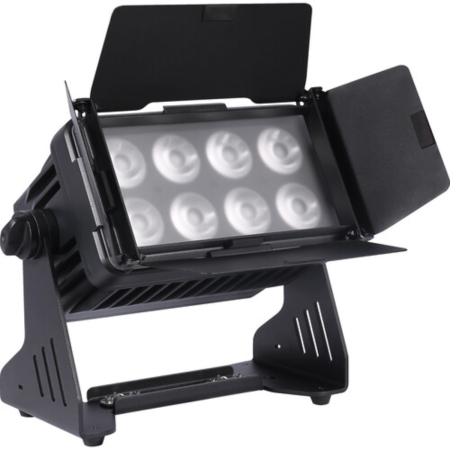

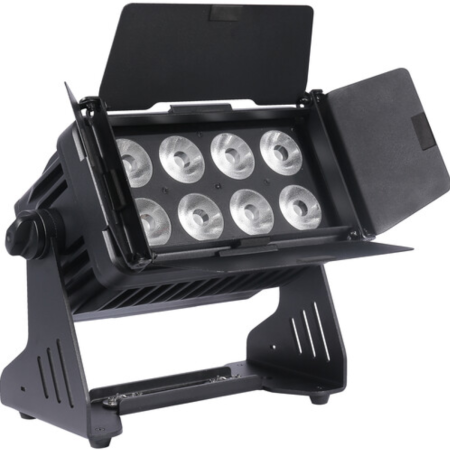

| Included Accessories | powerCON TRUE1 IP65 power cable, 40° diffuser, Barndoors, IR remote, Quick start guide, User manual |
| Weight | 11.2 lb (5.1 kg) kg |
| CE Certified | Yes |
| ETL Listed | Pending cETL certification |
| FCC Certified | Yes |
| RoHS Compliant | Yes |
| Warranty Length | Not specified years |
| Color Mixing | RGB+Lime, 8-bit and 16-bit |
| Control Interfaces | DMX512, RDM, CRMX wireless DMX, IR remote, OLED graphical display |
| Physical Controls | Onboard OLED graphical display, IR remote |
| Preset Storage | 73 preset colors, 72 automatic effects, 4 customizable favorite colors |
| Wireless Capabilities | CRMX by LumenRadio wireless DMX |
