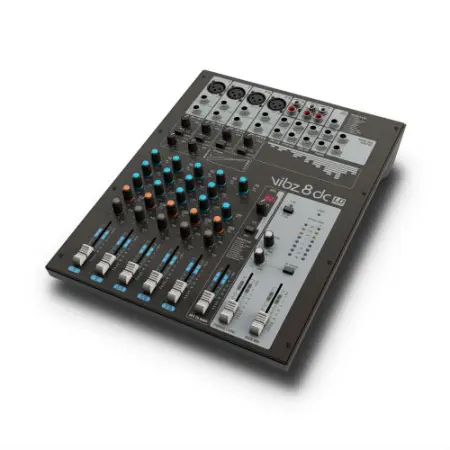

LD Systems VIBZ 8 DC

VIBZ 8 DC
8 CHANNEL MIXING CONSOLE WITH DFX AND COMPRESSOR

Four balanced microphone inputs with high quality preamplifiers, mono compatible stereo channels, an integrated compressor and 100 digital effects with 24-bit resolution turn the VIBZ 8 DC into a flexible sound control unit.

The microphone channels are switchable to line level and are equipped with high quality preamplifiers and a reduction in bass; two of them also feature inserts for individual signal processing. For an effective sound adjustment, the VIBZ 8 DC has very precise 3-band EQs with practical selectable mids.

The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 8 DC also has inputs and outputs for recording and playback devices, is extremely easy to use and impresses with its transparent and detailed sound. It is ideal for small bands, installations, home recording, and for use as a sub-mixer.

It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 8 DC on microphone stands are available as accessories.


Inputs:
• 4x XLR Mic Inputs
• 8x 1/4" Jack Mono Line
• Stereo RCA Tape In
• 2x Mono 1/4" AUX Return (balanced)

Outputs:
• 2x 1/4" Jack Main Outs (unbalanced)
• 2x 1/4" Jack CTRL Outs (unbalanced)
• 1x 1/4" Stereo AUX (unbalanced)
• RCA Tape Out
• 1x Stereo 1/4" Jack Headphones
Other Connections: 1x 1/4" TRS Footswitch for DFX Mute
THD: 0.0045 % (Mic)
Signal to Noise: 113dB (Mic)
EQ Type: 3 Band parametric
Compressor: Channel 1 and 2
Effects Processor: Digital 24-Bit Resolution
Number of FX presets: 100
48V Phantom Power: Yes
Dimensions: 265 x 78 x 352mm
Weight: 2.2kg

LD Systems LDS-VIBZ8DC (LD Systems VIBZ8DC)
