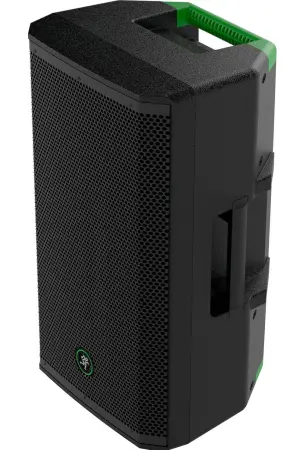

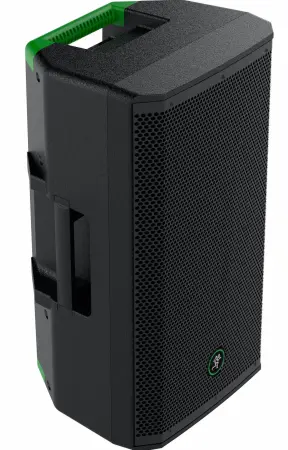

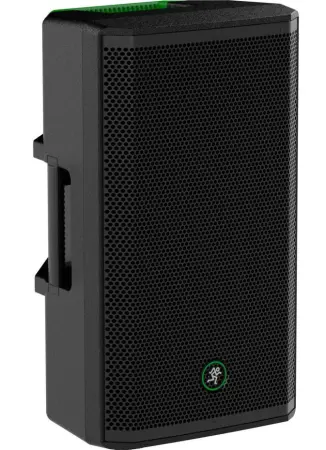

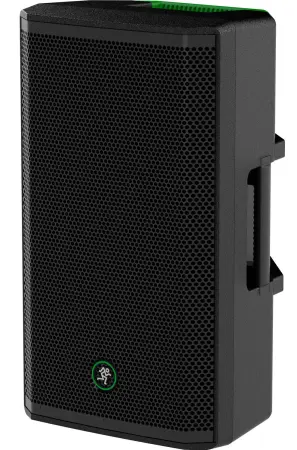

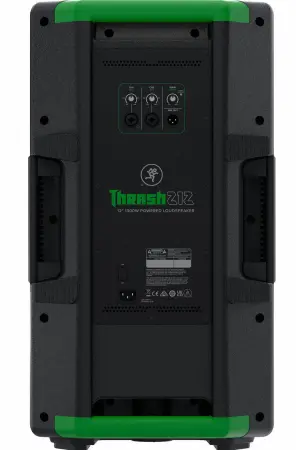

Looking for a portable and versatile active speaker for live sound applications? Then, look no further than the Mackie Thrash212, a 2-way powered PA speaker that includes a 2-channel mixer, great for small club/band PA systems, singer/songwriters, boardrooms, A/V presentations, classrooms, or as a personal monitor for practice or performance.

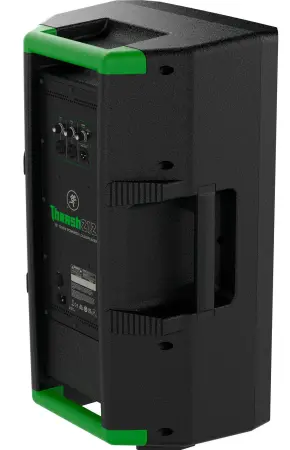

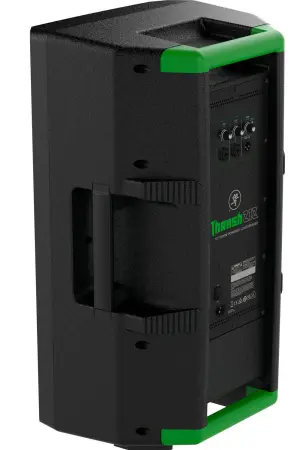

The Thrash212's mixer features two combo XLR-1/4" mic/line/Hi-Z channels with dedicated gain controls, while an XLR output is provided for daisy-chaining additional speakers.

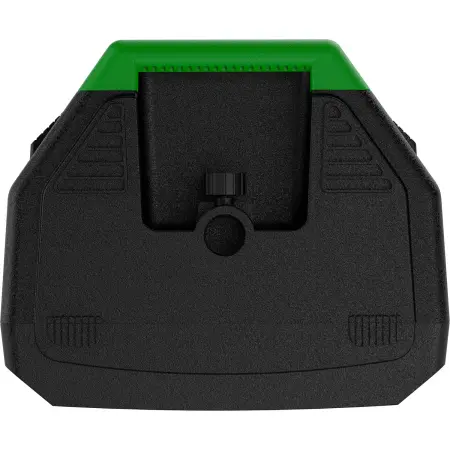

The tough, impact-resistant enclosure ensure protection from on-the-road wear and tear. The bottom of the cabinet provides a pole cup for mounting on a speaker pole or stand. The angled design allows the speaker to be used as a floor monitor for onstage performance monitoring.
Features:
1300W ultra-efficient Class-D amplifier
Built-Like-A-Tank to conquer every gig while lightweight for easy loading
Frequency Response: 65 Hz to 20 kHz (-3 dB)
Max SPL: 125 dB
Inputs 1 and 2 feature XLR/TRS combo inputs and accept both line and mic levels
Mix output sums audio from both input channels
12” high-performance woofer
1” titanium compression driver
Standard pole mount

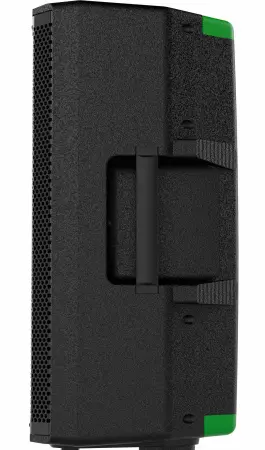

Equipped with 4 handles for easy loading
Dual-angle monitor wedge for use as a floor monitor
Rotatable grille badge
The Power to Perform
With 1300W of ultra-efficient, reliable power, Thrash is the perfect start to your PA system. If you are a band that is ready to gig or even upgrade your rehearsal space, Thrash is ready to make it happen.
The Sound of Rock
From Punk to Metal to Djent, Thrash is voiced to make your voice and instruments cut through in loud basement shows, garage rehearsals, and dusty old venues.
No Fuss I/O
Want to plug in, crank it, and get playing? Thrash won't get in your way. Dual combo XLR-1/4" inputs plus a Mix Out are easy and versatile for connecting to your gear. You can even connect a microphone directly into either input when you just need simple vocal reinforcement.
Take the Heat
When things get hot, the automatic thermal limiting within Thrash will keep things in check so you can focus on your performance.
Specifications:
Portable PA System
Speaker Configuration 1 x 2-Way Loudspeaker
Number of Input Channels 2 (2 x Mono)
Amplifier Power Rating Total:
1300 W Peak
LF:
1 x 1000 W Peak
HF:
1 x 300 W Peak
Amplifier Class Class-D
Speakers
Enclosure Type Bass-Reflex
HF Driver 1 x 1" / 25.4 mm Titanium Compression Driver
LF Driver 1 x 12" / 304.8 mm Woofer
Magnet LF Driver:
Ferrite
Signal Processing
Crossover 2.4 kHz, 24 dB/Octave
Input Pad None
EQ None
Semi-Parametric EQ None
Effects None
Filters None
Dynamic Processing Peak Limiter
Performance
Frequency Response 65 Hz to 20 kHz -3 dB
Frequency Range 52 Hz to 20 kHz -10 dB
Maximum SPL 125 dB
Coverage Angle 90° H x 60° V
I/O Impedance XLR Mic Input:
20 Kilohms (Balanced)
1/4" Hi-Z Input:
1 Megohms (Unbalanced)
XLR Line Output:
600 Ohms (Balanced)
THD <1%
Protections Output Limiter, Power Supply, RMS, Thermal
Connectivity
Audio I/O 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line/Hi-Z Input
1 x XLR 3-Pin Male Balanced Line Output
USB None
Network I/O None
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
Power Consumption 75 W
AC Power Connector 1 x IEC Input
Physical
Transport Options 4 x Handle
Mounting 1 x Pole Socket (Bottom)
Cooling Convection
Construction Material Metal Grille, Polypropylene
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 26.4 x 14.8 x 12.3" / 670.6 x 375.9 x 312.4 mm
Weight 36.4 lb / 16.5 kg
