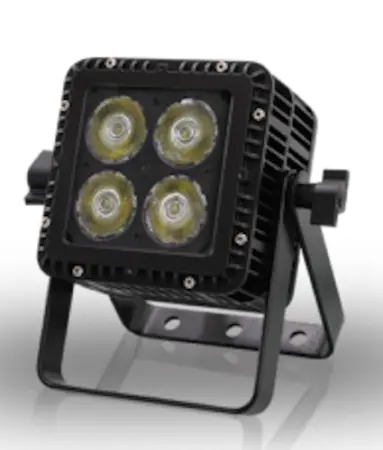

Introducing the Tuff Baby Q-60, an LED ETL listed lighting fixture that’s weathered for outdoors and can still be used indoors. This compact IP 65 rated unit packs a punch with 4 quad RGBW 15-watt LEDs. The addition of white LEDs allows for pastel hues that cannot be achieved with RGB LEDs alone. It has an 8º beam angle and also comes with a removable diffuser that creates a 30º diffused beam angle. The Tuff Baby Q-60 has 3-pin XLR DMX connectors and a weather seal screw-type power connection. The fixture has a double mounting yoke for simple rigging or ground stacking. It is controlled via DMX 512, featuring 7 channels, and master-slave control options.
SPECIFICATIONS:
ITEM ID:4101

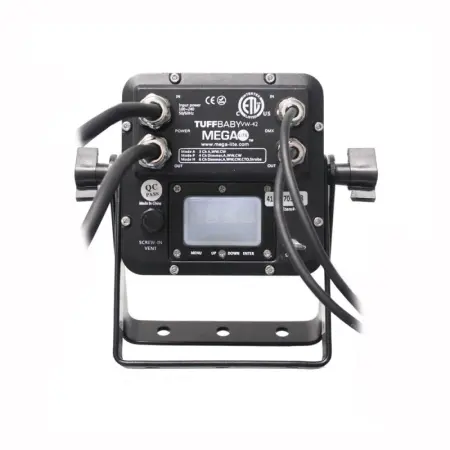

SIGNAL CONNECTORS:WEATHER 3 PIN XLR CONNECTORS IN/OUT
POWER CONNECTION:WEATHER SEAL SCREW TYPE
THERMAL:MAXIMUM AMBIENT TEMPERATURE 104º F MAXIMUM SURFACE TEMPERATURE 140º F
DISPLAY:DIGITAL

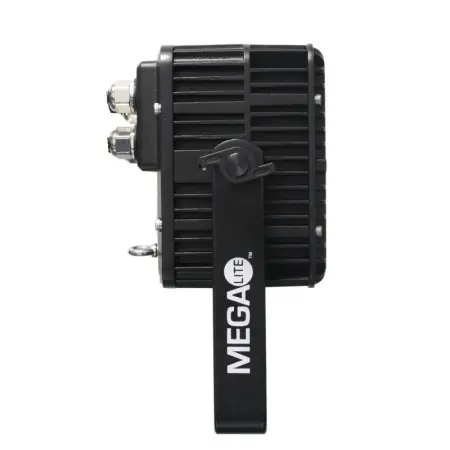

FASTENING SYSTEM:DOUBLE MOUNTING YOKE
IP RATING:IP65
LED QUANTITY:4
LED WATTS:15W
LED LIFETIME:60 TO 100,000 AVERAGE
LED ANGLE:8º
DIFFUSION BEAM ANGLE:30º
POWER SUPPLY:110V≈240V 50/60HZ
BALLAST:ELECTRONIC AUTO SWITCHING
POWER CONSUMPTION:WATTS: 45W / AMPS: .68
PROTOCOL:DMX 512
DMX CHANNELS:3 MODES OF OPERATION
MODE 1:3 CHANNELS RED, GREEN, BLUE
MODE 2:5 CHANNELS DIMMER, RED, GREEN, BLUE, WHITE
MODE 3:7 CHANNELS DIMMER, RED, GREEN, BLUE, WHITE, MACRO
CONTROL OPTIONS:MASTER SLAVE
Mega Lighting TUFF BABY Q60-4101
(Mega Lite 4101)
