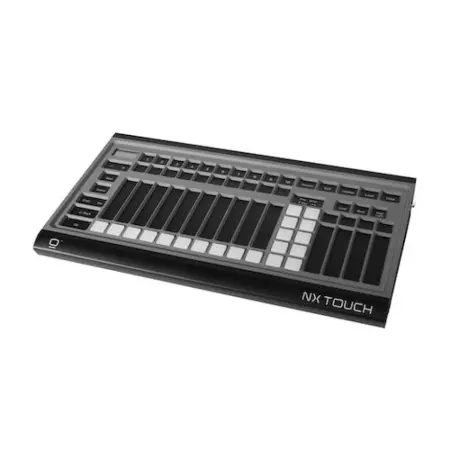

The NX Touch (which Replaces the Martin MTouch) is a powerful yet simple control surface for the ONYX platform, fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console.
14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the NX Touch control panel. NX Touch includes one DMX port for direct control of any compatible DMX device.
Features:
USB control surface for both smaller applications and professional use
Combined playback and programming surface with innovative touch fader technology
Pressure sensitive flash buttons
10 Playbacks, 10 multi-purpose function keys, 4 digital encoders
Portable, rugged and lightweight design
USB connection for ONYX on PC systems or as expansion wing for all ONYX consoles
Integrated DMX output, expandable up to 128 Universes
Plug and Play USB device without external power supply
Rackmount option
VESA Mounting 75x75, 100x100
Security K-Lock Locking Slot
Specifications:
SURFACE
Bank Navigation Up/Down with numerical display
Main Go section: Snap, Release, Pause and Go buttons
Command Buttons: Record, Edit, Update, Load, Clear
Multifunction Mode Select button
Fixture Selection buttons: Last, Next, Highlight
4 x Parameter Select buttons
4 x Parameter Adjust touch faders
10 x Function velocity pads
10 x Playback touch faders with 3 buttons
(2 x touch pad, 1 x velocity pad)
CONNECTIONS
1x DMX Out: 5-pin locking XLR
USB Input: USB 2.0-B
SIZE / WEIGHT
Length: 15.5” (394mm)
Width: 8.6” (219mm)
Height: 1.8” (47mm)
Weight: 3.3 Lbs. (1.5 kg)
ELECTRICAL
Power: 5VDC over USB
Maximum current 500mA
INCLUDED ITEMS
USB Cable
