The QSC K.2 Series represents the best-inclass loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.
Features:
Best in class audio performance
2000 Watt Class-D amplifier module
Intrinsic Correctionâ„¢ tuning and loudspeaker management
DMTâ„¢ (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening are
Refined, professional appearance looks great in any application
Rugged ABS enclosure for long life and lasting durability
Deployment in either main PA or floor monitor position
Factory Presets and savable/recallable Scenes for commonly-used application
Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
Dual pole cup mounts (standard and 7.5 degree down-tilt)
M10 fittings for flown applications
Optional security panel prevents unauthorized tampering of controls
Complete EASE and CAD information available online
6-Year Warranty (with product registration)
Specifications:
Configuration Multi-purpose, 2-way powered loudspeaker
Transducers LF Transducer: 10" / 254 mm, cone
HF Transducer: 1.4" / 35.6 mm titanium diaphragm compression driver
Frequency Response Frequency Response (-6 dB): 56 Hz - 20 kHz
Frequency Range Frequency Range (-10 dB): 50 Hz - 20 kHz
Nominal Coverage Angle 90° Axisymetric
Maximum SPL 130 dB @ 1 M, peak 124 dB @ 1 M, continuous
Amplifier Class-D
Peak: 1800 W (LF), 225 W (HF)
Cooling Low-noise, variable speed fan
Controls Power switch
Level Dial: 3
Rotary encoder (push)
Selection Buttons: 2
Indicators Monochrome LCD Display 1.8 x 1.0" / 45.0 x 25.4 mm
Power LED (Front and Rear): 2
Input Signal LED: 3
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED
Connectors Mic/Line Input and Hi-Z/Line Input: 2 x locking XLR/F 1/4" / 6.35 mm combo
Stereo Input: 1 x 1/8" / 3.5 mm TRS
Loop-Thru Output: 2 x XLR/M
Mix Output: 1 x XLR/M
Power Connector: 1 x locking IEC connector
Power AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption (1/8th Power): 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
Enclosure Characteristics Enclosure: Impact resistant ABS
Attachment Points: 2 x M10 threaded inserts plus pull-back
Color: Black (RAL 9011)
Grille: 18 Gauge powered coated steel, internal cloth lining
Regulation Compliance CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Dimensions (H x W x D) 20.4 x 12.6 x 11.8" / 518.2 x 320.0 x 299.7 mm
Weight 32.0 lb / 14.5 kg

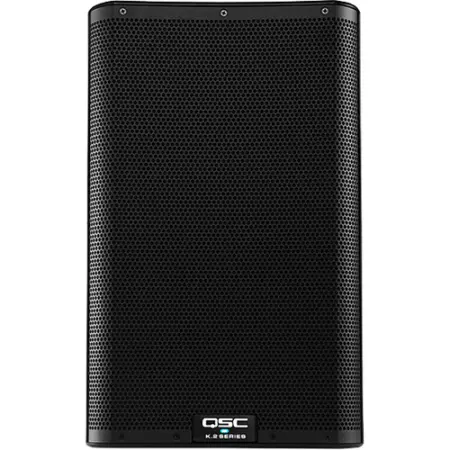

QSC K10 mk2
(QSC K10.2)
