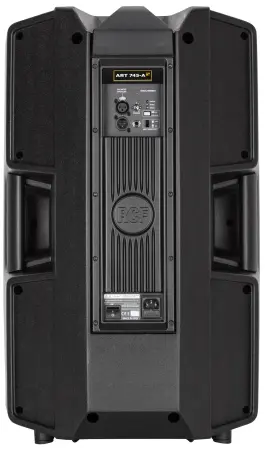

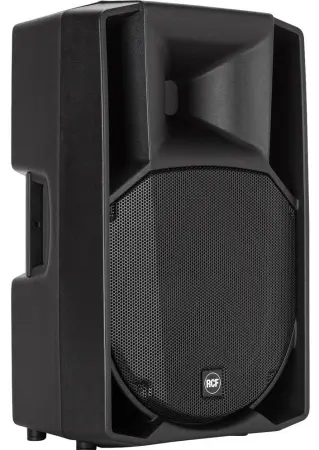

The ART 745-A MK4 is the flagship speaker in its category. The titanium dome, 4.0” voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
Features:
133 dB Max SPL
1400 WATT 2-way peak power
Innovative DSP Processing
1.4" Titanium Compression Driver, 4.0" v.c. Neodimium
15" Neodimium Woofer
650 Hz crossover point for perfect vocal reproduction
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology
Specifications:
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:45 Hz ÷ 20000 Hz
Max SPL:133 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1.4" neo, 4.0" v.c.
Woofer:15" neo, 3.5" v.c.
INPUT/OUTPUT SECTION
Input signal:Bal / unbal
Input connectors:XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies:650 Hz
Protections:Thermal, rms
Limiter:Soft limiter
Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Cooling:Convection
Connections:VDE connector in
CABINET
Cabinet Material:Composite PP
Hardware:2xM10 flying p.
Handles:2 side, 1 top
Pole Mount/Cap:Yes
Grille:Steel
Colour:Black
PHYSICAL SPECIFICATIONS
Height:708 / 27.87 mm/inch
Width:437 / 17.2 mm/inch
Depth:389 / 15.31 mm/inch
Net Weight:18.8 / 41.45 kg/lbs
RCF Art-745 MK4
(RCF Art745)
