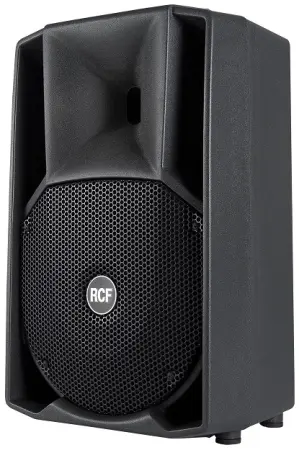

RCF ART425A MK2

RCF ART 425-A MK2 (RCF ART 425A MKII)

RCF ART 425-A Mk II is an active, wide dispersion 2 way sound reinforcement speaker. It integrates a high power 400 W digital amplifier, a complete electronic processor section and RCF low distortion, high power transducers. The system is unique in its class for output and vocal intelligibility.

A new 15”  woofer design with 3” voice coil has been specifically developed for the ART 425-A MK II. Combined with the perfect reflex port design of the speaker, the new woofer delivers an extremely accurate reproduction of the mid-bass frequencies and a punchy bass.
The new 2” compression driver with a pure titanium dome features a complex geometry suspension and direct drive coil offering a transparent midrange sound and extreme fidelity in high frequencies reproduction.
Thanks to its features the ART 425-A MK II offers the ultimate intelligibility for any portable sound application.

FEATURES:

800 Watt Peak, 400 Watt RMS digital bi-amplification
129 dB max spl
Wide dispersion 90 x 60 constant directivity horn
15" High power woofer, 3" voice coil
2" Titanium dome, high frequency driver
DSP processing, boost eq, soft limiter and protection
Xlr/jack input, xlr signal output

ACOUSTICAL SPECIFICATIONS:

Frequency Response -3 dB:45 Hz ÷ 20000 Hz
Max SPL:129 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:2" 2.5" voice coil
Woofer:15" 3" voice coil

INPUT/OUTPUT SECTION:

Input connectors:xlr-jack
Output connectors:xlr

PROCESSOR SECTION:

Crossover frequencies:1300 Hz
Controls:Flat, Boost

AMPLIFIER SPECIFICATIONS:

Total power:800 W PEAK
   High frequencies:200 W PEAK
   Low frequencies:600 W PEAK
Total power:400 W RMS
   High frequencies:100 W RMS
   Low frequencies:300 W RMS

CABINET:

Cabinet Material:Composite PP
Handles:1 on top, 2 on sides
Pole Mount/Cap:yes
Grille:steel

PHYSICAL SPECIFICATIONS:

Height:708/27.8 mm/inch
Width:437/17.2 mm/inch
Depth:389/15.3 mm/inch
Net Weight:26/57.32 kg/lbs
