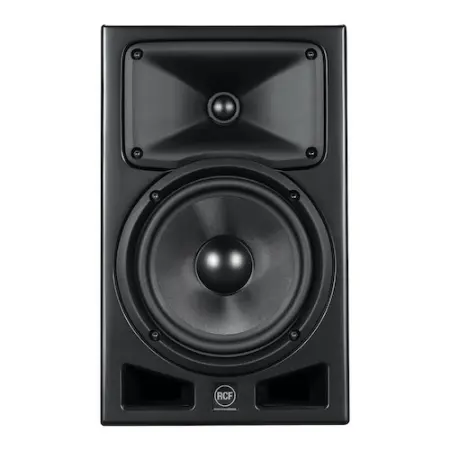

AYRA PRO8
PROFESSIONAL ACTIVE TWO-WAY STUDIO MONITORS
AYRA PRO8 studio monitor works perfectly in any listening environment, whether large or small production facilities, with absolute clarity. It delivers accurate monitoring and provides the engineer or producer with a neutral tool to analyze recordings and optimize the mix; for this reason, we call it PRO. Featuring a dedicated powerful internal DSP that optimizes frequency response and dynamics together with the exclusive RCF FiRPHASE processing and selected components, the AYRA PRO is the first Studio Monitor in its class to boast an outstanding 0° phase response.
Features:
45 – 20 kHz Frequency Response
0° Phase Response
100W + 40W Class-D Amplifiers
8” Composite Fiberglass Woofer
1” ferrofluid cooled Soft Dome tweeter
RCF Precision Waveguide
DSP Processing with FiRPHASE
Low distortion frontal Vented Ports
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz
MAX SPL @ 1M:
111 dB
HORIZONTAL COVERAGE ANGLE:
110°
VERTICAL COVERAGE ANGLE:
70°
Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c
WOOFER:
8'', 1.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, Jack, RCA
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
2000Hz
LIMITER:
Soft Limiter
CONTROLS:
HF Adjust -1dB,0,+1dB LF Adjust -2dB,0,+2dB
Power section
TOTAL POWER:
280 W Peak, 140 W RMS
HIGH FREQUENCIES:
80 W Peak, 40 W RMS
LOW FREQUENCIES:
200 W Peak, 100 W RMS
CONNECTIONS:
XLR, Jack, RCA
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
MDF
COLOR:
Black - RAL 9005
Size
HEIGHT:
410 mm / 16.14 inches
WIDTH:
253 mm / 9.96 inches
DEPTH:
320 mm / 12.6 inches
WEIGHT:
8.6 kg / 18.96 lbs
PACKAGE HEIGHT:
510 mm / 20.08 inches
PACKAGE WIDTH:
416 mm / 16.38 inches
PACKAGE DEPTH:
329 mm / 12.95 inches
PACKAGE WEIGHT:
9.5 kg / 20.94 lbs
