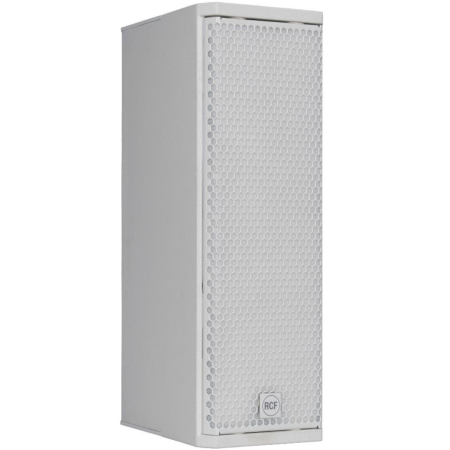

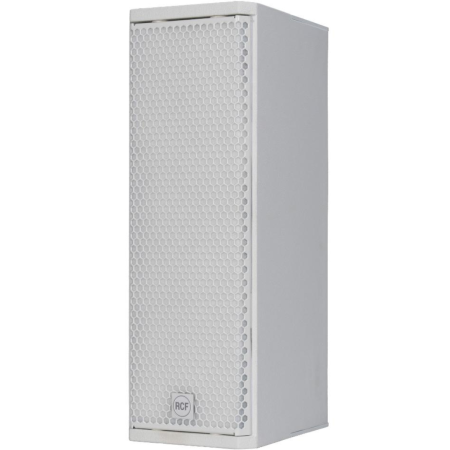

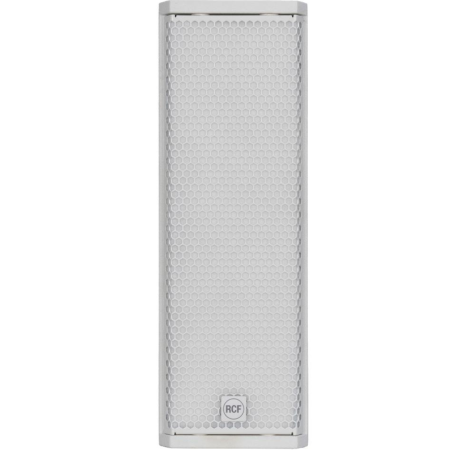

High-Powered Compact Loudspeaker for Installations and Portable Systems
The
RCF KX 515-A W is a premium 2-way active speaker that combines compact size, elegant white finish, and high-output performance, making it ideal for both installed and portable pro audio applications. With 2000 watts of peak Class-D amplification and RCF's signature DSP processing, it delivers 127 dB SPL with pristine clarity and control.
RCF KX 515-A W Competitive Differences
- Up to 127 dB max SPL in a lightweight, compact enclosure
- Dual 5” neodymium woofers and a 1.75” titanium compression driver
- Rotatable 100° x 70° CMD waveguide for horizontal or vertical deployment
- Integrated RDNet for advanced networked control and real-time monitoring
- Advanced DSP with FiRPHASE and Bass Motion Control (BMC)
- Durable Baltic birch enclosure with weather-resistant steel grille
- Quick-fit socket and integrated rigging hardware for versatile mounting
- Available in white for seamless architectural integration
RCF KX 515-A W Description
The
KX 515-A W offers an unbeatable combination of compact size, modern aesthetic, and powerful sound. This active 2-way speaker is engineered with dual 5” neodymium woofers and a rotatable CMD waveguide surrounding a 1.75” titanium compression driver for wide, even coverage. The result is exceptional clarity and detail across a 70 Hz to 20 kHz frequency range.
Equipped with onboard RDNet, FiRPHASE linear phase filtering, and BMC processing, this speaker delivers studio-grade sound with minimal distortion. Whether used in fixed installations, worship spaces, or portable systems, the KX 515-A W is quick to deploy, easy to tune, and built to endure.
KX 515-A W Features
- 127 dB max SPL output
- Rotatable 100° x 70° CMD horn for flexible coverage
- 1 x 1.75” titanium dome neodymium compression driver
- 2 x 5” neodymium woofers with 2” voice coils
- 2000W peak Class-D amplifier (1400W LF / 600W HF)
- FiRPHASE and BMC DSP for phase-accurate, balanced sound
- Onboard RDNet for remote management and control
- XLR and RDNet Ethercon input/output connectors
- PowerCON TRUE1 TOP mains IN/OUT
- Durable Baltic birch plywood cabinet with white finish
- Quick-fit pole mount socket, M10 mounting points
KX 515-A W Specifications
- Frequency Response: 70 Hz – 20,000 Hz
- Max SPL @ 1m: 127 dB
- Horizontal Coverage: 100°
- Vertical Coverage: 70°
- Input Sensitivity: -2 dBu / +4 dBu
- Input Connectors: XLR, RDNet Ethercon
- Output Connectors: XLR, RDNet Ethercon
- Crossover Frequency: 1200 Hz
- Protections: Excursion, Fast Limiter
- Controls: Bypass, Linear/High Pass, Volume
- Cabinet Material: Baltic birch plywood
- Handles: 2 (top and bottom)
- Mounting: Quick-fit socket, 2x M10 mounting points
- Color: White
KX 515-A W Dimensions & Weight
- Height: 17.95 in (456 mm)
- Width: 6.06 in (154 mm)
- Depth: 9.35 in (237.5 mm)
- Weight: 21.61 lbs (9.8 kg)
Shipping Dimensions
- Height: 20.08 in (510 mm)
- Width: 11.42 in (290 mm)
- Depth: 7.87 in (200 mm)
- Shipping Weight: 24.91 lbs (11.3 kg)
RCF KX 515-A W
(RCF 13000869)
