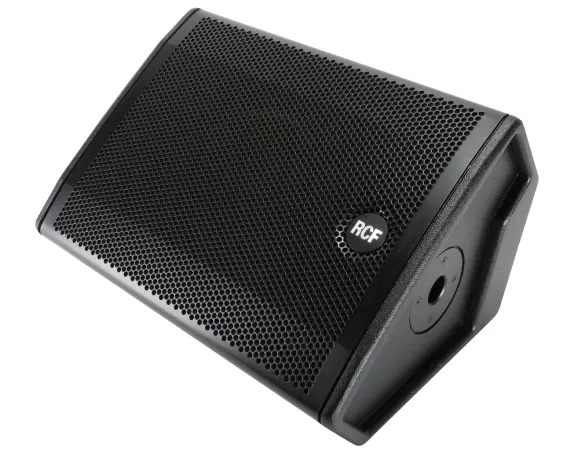

Compact Coaxial Powered Floor Monitor and Portable PA Speaker
The
RCF NX 12-SMA is a powerful and versatile 12" coaxial active stage monitor designed for live performance, stage monitoring, and portable PA use. With 700W RMS bi-amplification, DSP-controlled EQ presets, and a rugged touring-ready cabinet, this lightweight monitor delivers high-definition sound and clarity in a compact footprint.
RCF NX 12-SMA Competitive Differences
- 12" coaxial neodymium transducer with integrated 1.7" HF driver
- 129 dB max SPL with constant 60° x 60° directivity for tight stage control
- Two EQ modes: Floor (monitor) and Free Field (standalone PA)
- Bi-amplified 1400W peak power (700W RMS) with Class-D efficiency
- Compact and lightweight (36.6 lbs) with ergonomic side handle
- 35 mm pole mount for PA use, rugged Baltic birch plywood cabinet
- Fanless convection cooling ensures silent operation on stage
RCF NX 12-SMA Description
The
RCF NX 12-SMA combines compact portability with high-performance sound, making it ideal for stage monitoring and portable PA applications. Its coaxial design features a 12” high-power neodymium woofer paired with a 1.7” kapton dome compression driver for precise point-source sound, resulting in excellent vocal and instrument reproduction with a consistent 60° x 60° dispersion pattern.
Driven by a 1400W peak digital amplifier (700W RMS), this speaker delivers up to 129 dB SPL, ensuring clear and powerful sound in demanding live environments. Whether you're performing on stage or setting up a compact front-of-house system, the NX 12-SMA adapts to your setup with selectable EQ modes: “Floor” for wedge use and “Free Field” for standalone PA.
The cabinet is constructed from durable Baltic birch plywood and finished with road-ready black paint, designed to withstand the rigors of touring. Integrated PowerCON connections, a steel grille, and a side-mounted pole socket add flexibility and reliability for any live sound setup.
NX 12-SMA Features
- 1400 Watt Peak, 700 Watt RMS digital bi-amplification
- 12" neodymium woofer with 2.5" voice coil
- Coaxial 1.7" kapton dome, 1" exit HF neodymium driver
- 129 dB max SPL output
- 60° x 60° constant directivity dispersion
- DSP processing with floor / free field EQ presets
- Soft limiter and RMS/HF protection
- Combo XLR/Jack input and XLR signal output
- PowerCON in/out power connectors
- Fanless convection cooling for silent operation
- 35 mm pole mount for portable PA configurations
- Ergonomic side handle for easy transport
NX 12-SMA Specifications
- Frequency Response: 50 Hz – 20,000 Hz
- Max SPL @ 1m: 129 dB
- Horizontal Coverage: 60°
- Vertical Coverage: 60°
- Compression Driver: 1.0" exit, 1.75" voice coil, neodymium
- Woofer: 12" neodymium, 2.5" voice coil
- Input Connectors: XLR, 1/4" Jack (Combo)
- Output Connectors: XLR
- Input Sensitivity: +4 dBu
- Protections: RMS, HF
- Limiter: Soft Limiter
- EQ Modes: Floor / Free Field
- Total Amplifier Power: 1400W Peak / 700W RMS
- High Frequency Amp: 400W Peak / 200W RMS
- Low Frequency Amp: 1000W Peak / 500W RMS
- Cooling: Convection (fanless)
- Cabinet Material: Baltic birch plywood
- Handles: 1 ergonomic side handle
- Pole Mount: 35 mm socket
- Grille: Steel
- Color: Black
- Product Dimensions (H x W x D): 12.76 x 21.65 x 16.42 in (324 x 550 x 417 mm)
- Product Weight: 36.6 lbs (16.6 kg)
- Shipping Dimensions (H x W x D): 23.78 x 19.84 x 15.91 in (604 x 504 x 404 mm)
- Shipping Weight: 44.53 lbs (20.2 kg)
RCF NX12-SMA
(RCF NX-12 SMA)
