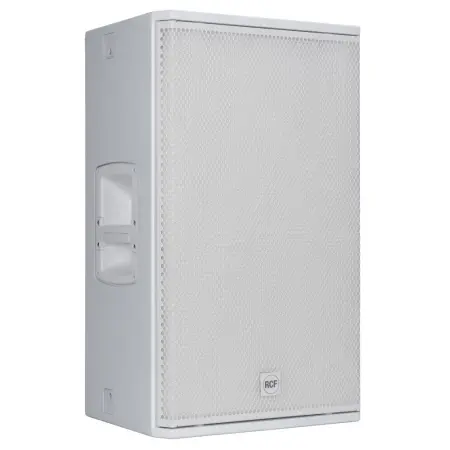

RCF NX 945-A W – 15" High-Output White Active Speaker
The
RCF NX 945-A W is a powerful, full-range active speaker designed for top-tier
FOH sound, stage monitoring, or flown installations. With a bold 135 dB SPL output from a
2100W bi-amplified Class-D amplifier, it combines a 15” neodymium woofer and a massive 4” titanium compression driver to deliver exceptional sound projection, precision, and reliability — now available in a sleek white finish.
Key Features:
- 135 dB Max SPL for high-output live sound
- 2100W peak Class-D amplification (1400W LF + 700W HF)
- 15” neodymium woofer for extended bass and punch
- 4” titanium/neodymium compression driver on TRW waveguide
- 100° x 70° coverage with True Resistive Waveguide
- 45 Hz – 20,000 Hz linear frequency response
- FiRPHASE and Bass Motion Control (BMC) DSP
- White painted all-plywood cabinet for modern installations
- Rigging-ready with 6 M10 and 4 Quick Lock points
Unmatched Clarity & Output
With its
4" compression driver, the NX 945-A W provides smooth high-frequency extension and definition across large spaces. The
neodymium woofer handles tight, deep bass with superior excursion and low distortion. Thanks to
FiRPHASE technology, you get a consistent sound image and near-zero phase distortion, ensuring every frequency hits with clarity.
Advanced DSP for Total Control
RCF’s
Bass Motion Control (BMC) algorithm maps woofer behavior in real time to extend low-end performance without the phase shift of traditional high-pass filters. Combine that with soft limiters and RMS/thermal protections, and you get reliable performance in any setting — from small clubs to large outdoor venues.
Versatile Deployment Options
The NX 945-A W is built for both mobile and installed applications. Use it
pole-mounted, floor-standing, wall-mounted, or flown. Its clean white finish makes it ideal for
modern installations, houses of worship, theaters, event spaces, and high-end venues.
Perfect For:
- FOH Speaker for Bands and DJs
- Stage Monitor (wedge or vertical)
- Corporate Events & House of Worship
- Fixed Installations with White Aesthetics
Specifications:
- Frequency Response: 45 Hz – 20 kHz
- Max SPL: 135 dB
- Coverage: 100° x 70°
- HF Driver: 1.4” exit / 4” v.c. titanium compression driver
- LF Driver: 15” neodymium woofer, 3.5” v.c.
- Amplifier Power: 2100W Peak (1400W LF + 700W HF)
- Connectors: Combo XLR/Jack input, XLR output
- Power: PowerCON TRUE1 TOP IN/OUT
- DSP Controls: Linear, Boost, Stage, Volume
Cabinet & Dimensions:
- Material: Baltic Birch Plywood
- Color: White
- Mounting: 6 x M10, 4 x Quick Lock Rigging Points
- Handles: 1 x Side
- Pole Mount: 35 mm insert
- Dimensions (HxWxD): 705 x 420 x 451 mm / 27.76 x 16.54 x 17.76 in
- Weight: 27.3 kg / 60.19 lbs
What’s Included:
- RCF NX 945-A W Active Speaker
- PowerCON TRUE1 Cable
- User Manual
RCF USA NX-945A-W
(RCF NX-945A White)
