RF Venue COMB4CP-ARC | 4-Channel IEM Combiner with...
$1,599.00

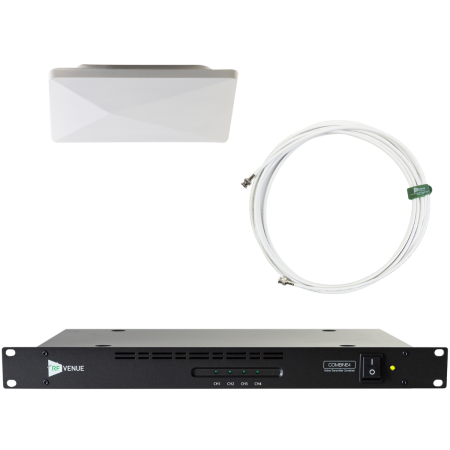

The RF Venue COMB4CP-ARC is a four-channel IEM transmitter combining package designed for permanent installations where reliable RF performance and a discreet appearance are equally important. It combines the COMBINE4 transmitter combiner with a white CP Architectural circularly polarized antenna and a 25 ft white RG8X BNC coaxial cable for a complete installed IEM antenna solution.
The RF Venue COMB4CP-ARC provides an integrated antenna and transmitter-combining solution for houses of worship, auditoriums, schools, conference spaces, theaters, and other venues using multiple wireless in-ear monitor channels. The COMBINE4 actively combines as many as four IEM transmitter outputs into a single antenna feed, helping create a cleaner RF installation than operating multiple transmitter antennas in close proximity.
The included CP Architectural Antenna is specifically designed for installed IEM applications. Its right-hand circularly polarized design distributes RF energy across changing polarization angles, helping maintain a more consistent signal as performers move and bodypack receiver antennas change orientation. The antenna has a 120-degree beam width, a slim 11 x 11 x 2 in enclosure, and can be mounted on a wall or ceiling in any orientation.
The white antenna enclosure provides a low-profile appearance for architecturally sensitive spaces and can be painted to coordinate with the surrounding interior. A rear BNC connection simplifies integration with in-wall or in-ceiling coaxial cable runs, while the included mounting hardware supports both wall and ceiling installation.
The COMBINE4 is a full-width rackmount transmitter combiner covering 470–960 MHz. In addition to its four BNC RF inputs and single antenna output, it includes four 12V DC outputs capable of supplying compatible IEM transmitters. With the antenna, combiner, RF jumpers, DC jumpers, AC power cord, mounting hardware, and white 25 ft RG8X cable included, the package provides the primary RF components needed for a professional four-channel installed IEM system.
| Beam Angle | 120 degrees degrees |
| Connectivity Protocols | BNC RF inputs and outputs |
| Frequency Response | 470–960 MHz MHz |
| Impedance | 50 ohms ohms |
| Power Consumption | 60W W |
| Power Rating | 12V DC, 1A max per output V |
| Brand | RF Venue |
| Name | RF Venue COMB4CP-ARC | 4-Channel IEM Combiner with CP Architectural Antenna | White Wall/Ceiling Mount System |
| Primary Category | In-Ear Monitor Antenna Combiner |
| Dimensions | 19 x 2 x 10 in (480 x 45 x 250 mm) |
| Included Accessories | Wall mounting hardware, ceiling mounting hardware, 4 x 14 in BNC jumpers, 4 x 2 ft DC jumpers, AC power cord, 25 ft white RG8X BNC coaxial cable |
| Mounting Options | Wall or ceiling mount |
| Weight | 5 lb (2.3 kg) kg |
| Warranty Length | Not specified years |
