Complete Wireless Microphone Antenna System Bundle
The

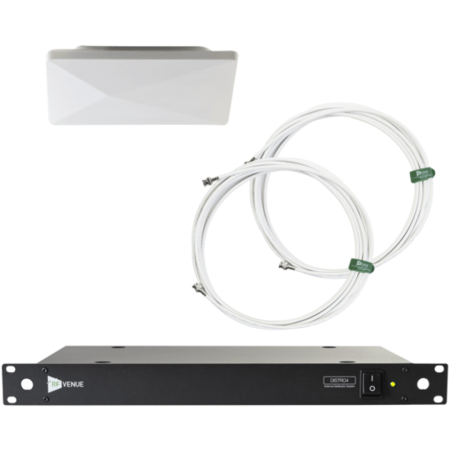

RF Venue D-ARCBDISTRO4 bundle is an all-in-one turnkey solution for up to five wireless microphone channels. It includes the patent-pending Diversity Architectural Antenna (D-ARCB),
DISTRO4 4-channel antenna distribution system, and two 25-foot
premium low-loss RG8X coaxial cables. This high-performance system is ideal for installations in churches, conference rooms, education facilities, and other professional environments requiring sleek design and reliable RF performance.
RF Venue D-ARCBDISTRO4 Competitive Differences
- Includes everything needed to deploy up to 5 channels of wireless microphones
- D-ARCB antenna features patent-pending dual-feed design for true diversity performance
- Slim-profile antenna enclosure easily mounts to wall or ceiling and can be painted to match interiors
- DISTRO4 delivers RF and power to 4 receivers, plus 1 additional via cascade
- Low-loss RG8X coaxial cables with BNC connectors ensure optimal signal integrity
- High-quality components provide professional-grade RF performance without signal dropouts
RF Venue D-ARCBDISTRO4 Description
The
Diversity Architectural Antenna is engineered for aesthetic and technical performance in modern venues. It combines A and B diversity connections within a single sleek enclosure, eliminating the need for two separate paddle antennas. With a
wall or ceiling mountable design, this unit fits seamlessly into any space and is ideal for installations where visual appeal and unobtrusive performance are key.
The
DISTRO4 antenna distribution amplifier allows a single Diversity Fin or D-ARCB to feed
up to 5 wireless receivers using a single antenna pair. Built-in RF amplification ensures consistent performance while integrated DC power distribution removes the need for multiple wall warts. The DISTRO4 includes 8 RF BNC cables and 4 DC power cables to simplify your system setup.
D-ARCBDISTRO4 Bundle Features
- Patent-pending Diversity Architectural Antenna (Black)
- DISTRO4 antenna distribution system with internal power supply and cascade ports
- (2) 25 ft RG8X premium low-loss coaxial cables with BNC connectors
- Supports up to 5 wireless microphone channels
- Sleek, paintable, wall/ceiling mount antenna design
- Quick and easy installation with mounting plate and hardware included
DISTRO4 Specifications
- Frequency Range: 470–952 MHz
- Gain: +3 dB (±2 dB)
- Cascade Output Level: 0 to +2 dB
- Output Connection Isolation: ≥ 25 dB
- Third Order Intercept: 24 dBm
- DC Power Output: 12VDC via 5.5mm OD, 2.1mm ID jacks
- Power Supply: Internal, 100–240V AC
- Dimensions: 19" x 2" x 10" (480 x 45 x 250 mm)
- Weight: 4.75 lbs (2.15 kg)
RF Venue RG8X Coaxial Cable Highlights
- Made in USA, double-shielded braid over foil design
- Low-loss 50Ω RG8X construction for wireless audio
- Terminated with BNC male connectors
- Tested on calibrated Agilent network analyzers
The RF Venue D-ARCBDISTRO4 bundle delivers unmatched reliability, streamlined setup, and seamless integration for professional wireless microphone installations.
RF VENUE D-ARCB-DISTRO4
(RF Venue D-ARCBDISTRO4)
