Complete Antenna Distribution Bundle for Wireless Microphone Systems
The
RF Venue DFINBDISTRO4 is a turnkey solution for powering up to five wireless microphone channels with premium RF signal clarity and stability. Featuring the industry-trusted
Diversity Fin™ Antenna, a
DISTRO4™ 4-channel antenna distribution system, and high-performance coaxial cabling, this bundle is perfect for professional AV installations, live performances, and touring setups. It delivers superior wireless audio performance with reduced signal dropouts and convenient rackmount integration.
RF Venue DFINBDISTRO4 Competitive Differences
- Includes patented Diversity Fin™ Antenna with cross-polarized LPDA + dipole design
- DISTRO4™ distributes diversity RF signals and DC power to 4 wireless receivers
- Expandable system supports up to 16 receivers via cascade ports
- High-gain amplification offsets signal loss from splitting
- Premium low-loss coaxial cabling (2 x RG8X25, made in the USA)
- Internal 2000 mA power supply — no wall wart required
- All necessary RF and DC cables included for full system setup
RF Venue DFINBDISTRO4 Description
The
RF Venue DFINBDISTRO4 package provides everything you need to deploy up to five wireless microphones with confidence. At the heart of the system is the
Diversity Fin™ Antenna, a hybrid, cross-polarized antenna combining a directional LPDA and a bidirectional dipole. This eliminates the need for dual paddle antennas and improves reception by capturing both vertical and horizontal signal polarizations — dramatically reducing RF dropouts.
The included
DISTRO4 antenna distribution system amplifies and splits incoming antenna signals to feed four wireless microphone receivers. It also provides 12V DC power to your receivers and active antennas through coaxial cable. Cascade outputs allow you to daisy-chain multiple DISTRO4 units to support larger systems up to 16 receivers, making it ideal for growing stage or broadcast environments.
Included in the bundle are two premium 25-foot
RG8X coaxial cables with BNC connectors. Manufactured in the USA and double-shielded for maximum RF integrity, these cables ensure signal reliability with minimal loss and flexible routing.

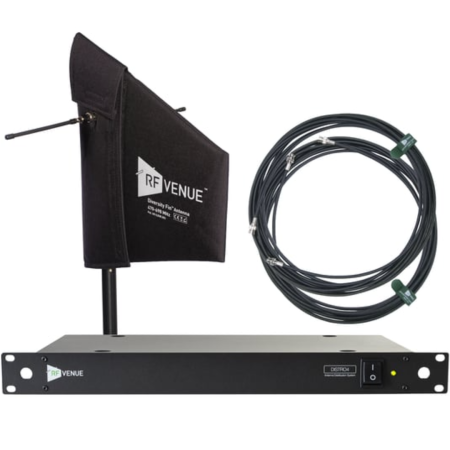

DFINBDISTRO4 Bundle Includes
- (1) RF Venue DFINB Diversity Fin Antenna (Wallmount Black)
- (1) RF Venue DISTRO4 Antenna Distribution System
- (2) 25-ft RG8X Low-Loss Coaxial Cables (BNC male connectors)
- (10) 2-ft BNC RF jumpers
- (4) 14” DC power jumpers
- (1) AC power cable
DISTRO4 Specifications
- Frequency Range: 470–952 MHz
- RF Gain: +3 dB ±2 dB
- Cascade Output: 0 to +2 dB
- Output Isolation: ≥ 25 dB
- Impedance: 50Ω
- DC Output (to receivers): +12V via 5.5mm OD / 2.1mm ID connectors
- DC over Coax (to antennas): 12–14 VDC switchable
- AC Input Voltage: 100–240V
- Power Consumption: 60W
- Dimensions: 19” W x 2” H x 10” D (480 x 45 x 250 mm)
- Weight: 4.75 lbs (2.15 kg)
The DFINBDISTRO4 is the ideal all-in-one antenna solution for wireless microphone systems that demand reliability, expandability, and uncompromising RF performance.
RF VENUE DFINBDISTRO4
(RF Venue DFINB-DISTRO4)
