Wireless Microphone Antenna

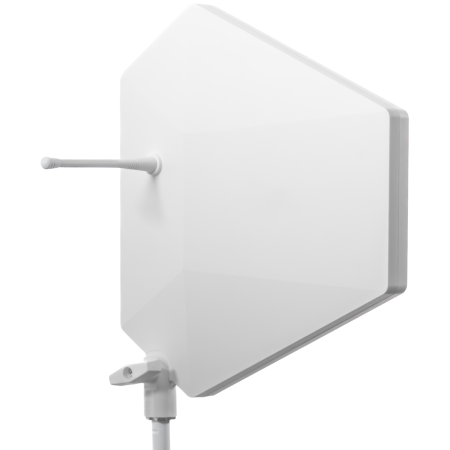

RF Venue DFIN-IPXW is a white IP44-rated Diversity Fin antenna designed for dependable wireless microphone reception in live sound, worship, touring, broadcast, and installed venue applications. Its patented cross-polarized design helps reduce multi-path interference while simplifying setup compared to using two separate paddle antennas.
RF Venue DFIN-IPXW Competitive Differences
- White finish for applications where a lighter antenna color is preferred
- Patented cross-polarized design replaces two traditional paddle antennas with one unit
- IP44-rated enclosure with weather-resistant seal for rain and dust protection
- 470-928 MHz operating range supports nearly all modern wireless microphone systems
RF Venue DFIN-IPXW Description
The RF Venue DFIN-IPXW is built for wireless microphone users who need stable RF performance in demanding indoor or outdoor environments. Its Diversity Fin design combines two antenna polarizations in one rugged antenna, helping improve reception while reducing setup time, cabling, and placement errors.
With coverage across 470-928 MHz, the DFIN-IPXW is compatible with a wide range of modern wireless microphone systems. It can be placed at stage wings, front of house, or other strategic positions and aimed toward transmitters or performer areas for reliable signal pickup.
The weather-resistant enclosure, IP44 rating, ruggedized construction, and downward-facing BNC connectors make it suitable for live events where rain, dust, and tough conditions are a concern. The white finish is especially useful for houses of worship, broadcast spaces, architectural installs, and events where visual appearance matters.
DFIN-IPXW Features
- White Diversity Fin IPX antenna for wireless microphone systems
- Patented cross-polarized antenna design
- Replaces two traditional LPDA paddle antennas with one antenna
- Designed to help combat multi-path interference
- Weather-resistant IP44-rated enclosure

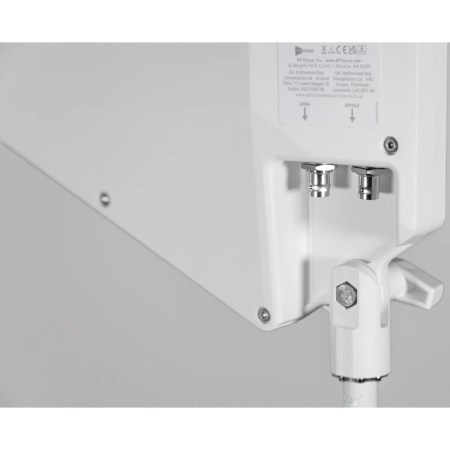

- Downward-facing BNC connectors for added weather protection
- Ruggedized housing for tough live sound environments
- 470-928 MHz operating range
- Suitable for touring, worship, venues, live events, and outdoor productions
- Can be used passively or powered
- Recommended placement at stage wings or front of house
DFIN-IPXW Specifications
- Product Type: Diversity wireless microphone antenna
- Color: White
- Antenna Design: Patented cross-polarized Diversity Fin
- Frequency Range: 470-928 MHz
- Weather Rating: IP44
- Connectors: Downward-facing BNC
- Compatible Systems: Modern wireless microphone systems operating within 470-928 MHz
- Recommended Use: Wireless microphones
- Placement: Stage wings, front of house, or aimed toward transmitters and talent areas
What's In The Box
- RF Venue DFIN-IPXW Diversity Fin IPX antenna, white
- 2 dipole antennas
- 2 spare dipole antennas
- Threaded EU microphone stand adapter
RF Venue DFIN-IPXW
(RF Venue DFINIPXW)
