Samson SAMICSPLITT | XLR/TRS Mic Splitter | Passiv...
$99.99
Samson SAMICSPLITT is a passive signal splitter designed to duplicate microphone or line-level signals for live sound, studio, and stage applications. With a combo XLR/TRS input, one XLR thru output, and two isolated XLR outputs, it provides a simple way to send the same signal to front-of-house mixers, monitor consoles, audio interfaces, or recording systems without requiring external power.

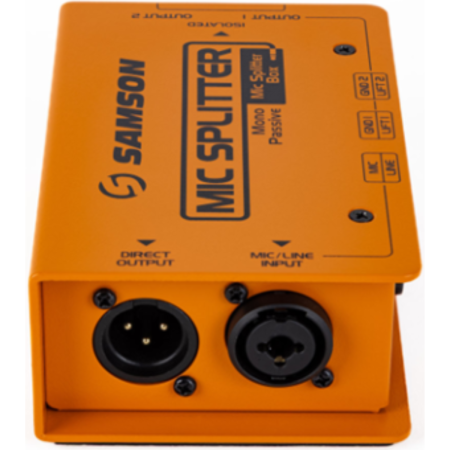

The Samson SAMICSPLITT is built for users who need a clean, straightforward way to split one incoming signal into multiple destinations. Its single combo input accepts either an XLR microphone cable or 1/4 in TRS cable, making it easy to integrate into different live sound and recording setups.
For output routing, the SAMICSPLITT includes one XLR thru output along with two isolated XLR outputs. This makes it useful for sending a signal to a front-of-house mixer, monitor console, broadcast feed, audio interface, or backup recording system from a single source.

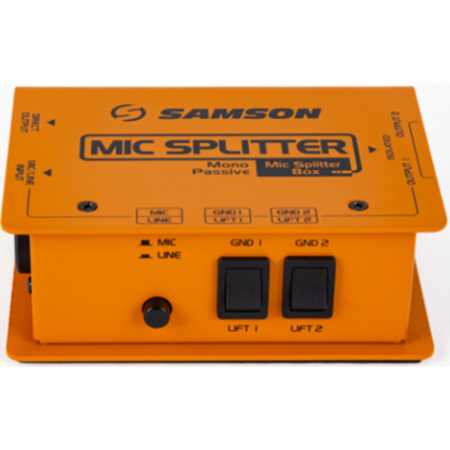

A Mic/Line switch allows the input level to be set appropriately for the connected source, while ground lift controls on the isolated outputs help reduce unwanted hum and noise. Because the unit is passive, it requires no power supply, making setup fast and dependable.
Housed in a rugged 14-gauge steel enclosure, the Samson SAMICSPLITT is designed for repeated use in demanding stage, rehearsal, and studio environments where reliable signal routing is essential.
| Brand | Samson |
| Name | Samson SAMICSPLITT | XLR/TRS Mic Splitter | Passive 3-Output Signal Splitter |
| Primary Category | Mic Splitter |
| SKU | SAMICSPLITT |
| Build Material | 14-gauge steel chassis |
| Depth | 5 in |
| Dimensions | 3.38 in (W) x 1.95 in (H) x 5 in (D) |
| Height | 1.95 in |
| Included Accessories | Ground lift controls on isolated outputs |
| Weight | 1.5 lb |
| Width | 3.38 in |
| Connectivity Protocols | XLR, TRS |
| Power Consumption | Passive, no external power required W |
