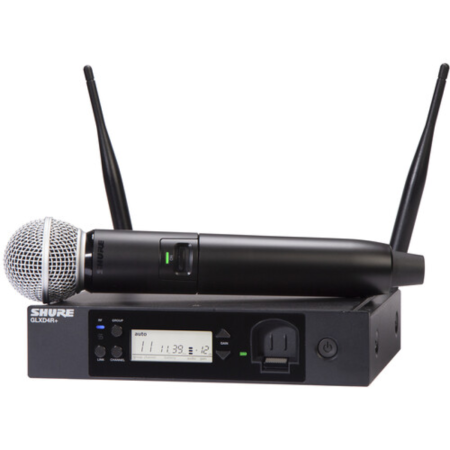

Digital Wireless Handheld Microphone System
The Shure GLXD24R+/SM58-Z3 is a rack-mountable digital wireless microphone system that combines automatic dual-band frequency management with the proven sound and durability of an SM58 cardioid dynamic microphone. It provides straightforward setup and dependable wireless performance for singers, presenters, houses of worship, schools, venues, and event production systems.
Shure GLXD24R+/SM58-Z3 Competitive Differences
- Automatically scans both the 2.4 and 5.8 GHz frequency ranges to locate a clean transmission channel
- Includes the industry-standard SM58 cardioid dynamic microphone capsule
- True digital diversity uses two antennas and independent receiver sections to help reduce signal dropouts
- Continuously monitors backup frequencies and automatically moves away from interference
- Front-panel charging bay charges the included SB904 battery or a spare battery
- Included rechargeable battery provides up to 12 hours of continuous operation
- Metal half-rack receiver includes removable antennas for flexible rack installations
- Expandable for installations requiring multiple simultaneous wireless microphone channels
Shure GLXD24R+/SM58-Z3 Description
The Shure GLXD24R+/SM58-Z3 is designed to make professional wireless audio accessible without requiring extensive RF coordination. Its automatic frequency management scans the 2.4 and 5.8 GHz bands, pairs the transmitter and receiver, and selects a suitable operating frequency for reliable performances and presentations.

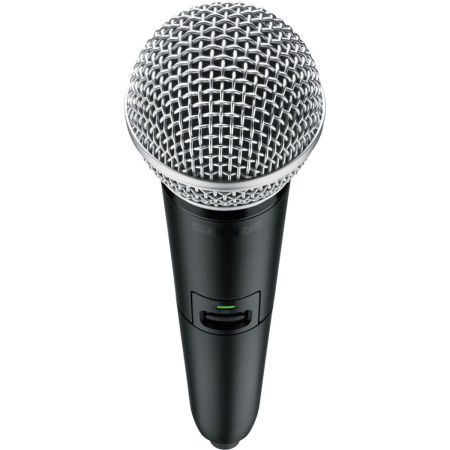

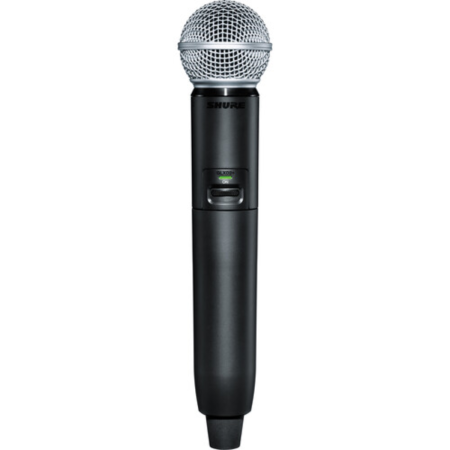

The included GLXD2+/SM58 handheld transmitter features the familiar SM58 dynamic microphone capsule. Its cardioid pickup pattern focuses on sound arriving from the front of the microphone to help reduce unwanted stage noise and feedback, while the built-in pneumatic shock mount helps minimize handling noise. A spherical filter reduces breath and wind noise, and the steel-mesh grille supports demanding live use.

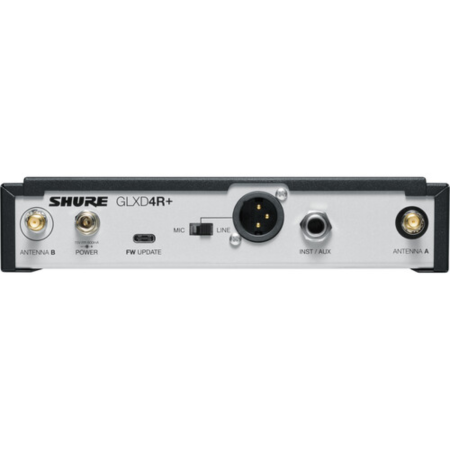

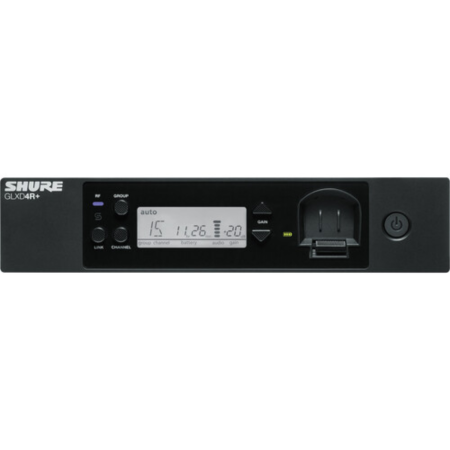

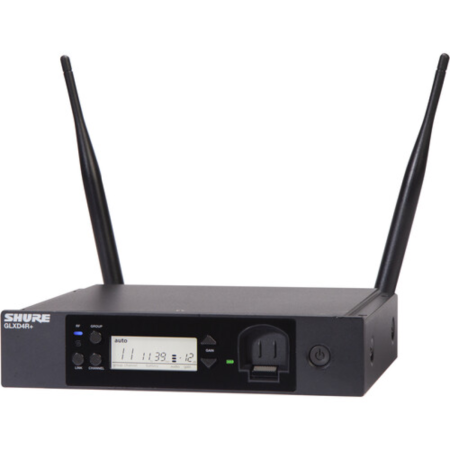

The GLXD4R+ receiver features a durable metal half-rack enclosure with an easy-to-read front-panel display. Balanced XLR and 1/4-inch audio outputs make it compatible with professional mixers, powered speakers, recording interfaces, and installed sound systems. Transmitter gain can be adjusted from the receiver for convenient system setup.
The included SB904 rechargeable lithium-ion battery delivers up to 12 hours of use on a full charge. It can be charged in the receiver's front-panel charging bay or through the transmitter's USB-C connection, while a 15-minute quick charge provides up to 1.5 hours of operation.
With removable rear-panel antennas and included rack-mounting hardware, the system is well suited for permanent installations and portable equipment racks. It can operate alongside additional GLX-D+ systems and can be expanded with compatible antenna distribution and frequency-management accessories for larger multichannel applications.
GLXD24R+/SM58-Z3 Features
- Digital wireless handheld microphone system
- GLXD4R+ metal half-rack receiver
- GLXD2+ handheld transmitter with interchangeable SM58 capsule
- Automatic 2.4 and 5.8 GHz dual-band frequency management
- 208.5 MHz of total operating bandwidth
- True digital diversity reception
- Automatic transmitter and receiver pairing
- Automatic backup-frequency monitoring
- Up to 100 ft (30.5 m) line-of-sight operating range
- 20 Hz to 20 kHz system frequency response, dependent on microphone capsule
- 120 dBA system dynamic range
- Front-panel SB904 battery charging bay
- Battery runtime displayed in hours and minutes
- Removable rear-panel receiver antennas
- Balanced XLR mic/line output
- Balanced 1/4-inch audio output
- Rack-mountable 1 RU half-rack design
GLXD24R+/SM58-Z3 Specifications
- Wireless Technology: Digital 2.4 and 5.8 GHz
- Frequency Band: Z3
- RF Frequency Range: 2400 to 2483.5 MHz and 5725 to 5850 MHz
- Total Operating Bandwidth: 208.5 MHz
- Receiver Diversity: True digital diversity
- Audio Channels: 1
- Maximum Operating Range: 100 ft (30.5 m) line of sight
- System Frequency Response: 20 Hz to 20 kHz, dependent on microphone capsule
- System Dynamic Range: 120 dBA
- System Latency: 4.5 to 8 ms
- Receiver Audio Outputs: 1 x balanced XLR mic/line and 1 x balanced 1/4 in TRS
- Receiver USB Connection: USB-C for firmware updates
- Receiver Antennas: 2 removable half-wave sleeve dipole antennas
- Transmitter RF Output Power: 10 mW
- Transmitter Gain Range: -18 to +42 dB in 1 dB steps
- Microphone Capsule: SM58 dynamic
- Microphone Polar Pattern: Cardioid
- Microphone Frequency Response: 50 Hz to 15 kHz
- Microphone Maximum SPL: 146 dB
- Microphone Sensitivity: -54.5 dBV/Pa
- Battery Type: Shure SB904 2420 mAh rechargeable lithium-ion battery
- Battery Life: Up to 12 hours
- Quick-Charge Performance: Up to 1.5 hours of operation from a 15-minute charge
- Receiver Dimensions: 7.8 x 6.4 x 1.7 in (197 x 163 x 42 mm)
- Transmitter Dimensions: 9.7 x 2 x 1.5 in (246 x 51 x 37 mm)
- Receiver Weight: 30.5 oz (866 g)
- Transmitter Weight: 9.7 oz (275 g) without battery
- Package Dimensions: 18.3 x 13.8 x 4.4 in
- Package Weight: 7.13 lb (3.23 kg)
What's In The Box
- GLXD4R+ dual-band half-rack receiver
- GLXD2+/SM58 handheld transmitter
- SB904 rechargeable lithium-ion battery
- PS43 power supply
- Microphone swivel adapter
- Removable dual-band antennas
- Rack-mounting hardware
- Antenna front-mounting hardware and cables
- Carrying case
