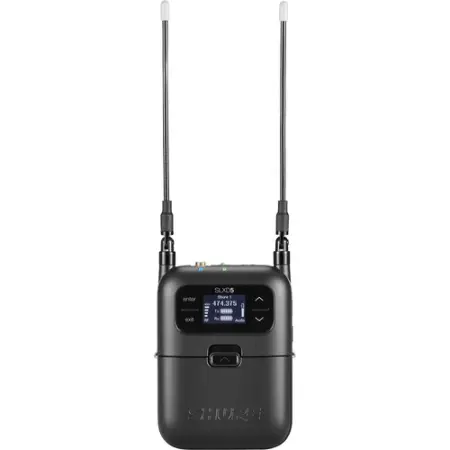

Shure SLXD5 Camera-Mount Digital Wireless Receiver
Designed to meet the needs of today's videographers, journalists, documentary makers, and content producers, the Shure SLXD5 is a camera-mount digital wireless microphone receiver that delivers crystal-clear sound quality and is quick and easy to set up, even if you're using multiple systems on set. Compatible with the SLXD1 bodypack, SLXD2 handheld, and SLXD3 plug-on transmitters, the versatile single-channel receiver includes a cold-shoe mount for your camera and also fits perfectly into an audio bag. The comprehensive feature set ensures reliable wireless transmission and professional-sounding, broadcast-ready results for demanding filmmakers and creators.
Transparent Digital Sound, Dependable Performance, and Multi-Mic Mode
- 24-bit digital audio with a 20 Hz to 20 kHz frequency response and 118 dB dynamic range
- Operates in the G58: 470 to 514 MHz UHF band with 44 MHz tuning range and 1760 frequencies
- Digital Predictive Switching Diversity to prevent dropouts
- Low latency of 3.2 ms for easy synchronization
- Supports up to 32 mics simultaneously
- Multi-Mic Mode for efficient channel allocation
A Rugged Receiver Ready for the Camera or Audio Bag
- Compact, user-configurable with a bright OLED screen
- Metal chassis with adjustable front-mounted antennas
- Adjustable gain control and dual 3.5mm outputs for headphone monitor and switchable line/mic output
- Automatic frequency scanning and IR sync

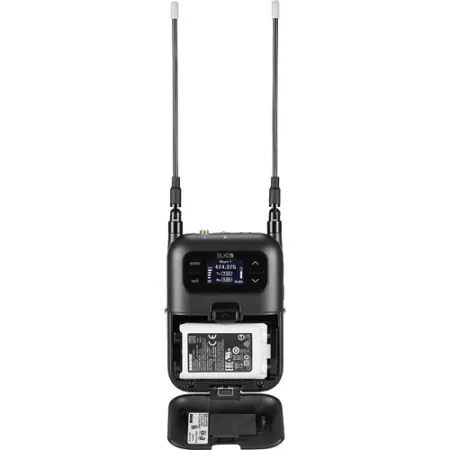

- Operates up to 5.5 hours on two AA batteries or SB903 rechargeable battery
- USB-C port for recharging the SB903 battery or powering the unit
Optional Rechargeable Battery Management
- SB903 lithium-ion rechargeable battery with single, dual-docking, or 8-bay chargers available
- Displays remaining battery life in hours and minutes when powered by SB903
- USB-C port for battery recharging and direct powering
A Variety of Mics and Transmitters Available
- SLXD1 bodypack transmitter with TA4M connector for lavalier and headset microphones
- WL183 omnidirectional lavalier mic
- WL184 supercardioid lavalier mic
- UL4 UniPlex subminiature cardioid lav
- DL4 DuraPlex miniature lavalier with IP57 rating
- SLXD2 handheld transmitter with various mic capsules
- SLXD3 plug-on transmitter for XLR microphones with 12 and 48V phantom power
Key Features
- Use with SLX-D Wireless Transmitters
- 1-Channel Receiver for Camera or Bag Use
- 118 dB Dynamic Range, 24-Bit Audio
- Reliable Predictive-Diversity Antennas
- 44 MHz Bandwidth, 1760 Frequencies
- Multi-Mic Mode for Complex Setups
- Easy-to-Read OLED Screen
- 5.5 Hours on Two AA or SB903 Battery
- Expandable to 32 Mic Channels/330' Range
Shure SLXD5 Specs
- Wireless Technology: Digital UHF
- Diversity: True Digital Diversity
- Max Operating Range: 328' / 100 m
- Receiver Type: Camera-Mount
- Number of Audio Channels: 1
- Audio I/O: 1x 1/8" / 3.5 mm TRS Female Balanced Mic/Line Output, 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
- Power Requirements: Battery, Bus Power (USB)
- Number of RF Channel Frequencies: 1760
- RF Frequency Band: G58: 470 to 514 MHz
- RF Bandwidth: 44 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Transmitters per Band: 32
- Latency: 3.2 ms
- THD: <0.02%
Receiver
- Receiver Type: Camera-Mount
- Mounting Options: Shoe-Mount (with Included Hardware)
- Antenna: 2x 1/4 Wave Flexible Whip, Fixed (Front-Mount)
- Number of Audio Channels: 1
- Audio I/O: 1x 1/8" / 3.5 mm TRS Female Balanced Mic/Line Output, 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
- Gain Range: -18 to +42 dB
- Audio Output Level: 1/8" / 3.5 mm Output: +15 dB (Line Level, Balanced)
- Phantom Power Protection: No
- Frequency Response: 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
- USB/Lightning Connectivity: 1x USB-C Female (Bus Power, Charging)
- Impedance: 1/8" / 3.5 mm Output: 450 Ohms (Balanced)
- Approximate RF Sensitivity: -97 dBm
- Spurious Rejection: >75 dB
- Power Requirements: Battery, Bus Power (USB)
- Battery Type: 2x AA, 1x Shure SB903
- Approx. Battery Life: 5.5 Hours
- Display & Indicators: OLED (AF Level, Battery Status, Channel, Frequency, Group, Menu Navigation, Metering, Multifunction, Output Level, RF Level, Sync, Transmitter Battery Status)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 2.7 x 4.2 x 1" / 68 x 107 x 25.3 mm
- Weight: 0.4 lb / 182 g
In the Box
- 1 SLXD5 Camera-Mount Digital Wireless Receiver
- 1 Zippered Carrying Pouch
- 2 AA Alkaline Batteries
SHURE SLXD5=-G58
(Shure SLXD5 (G58 band))
