Wall-Mounted Antenna for Enhanced Wireless Microphone Reception
The
Shure UA864US is a high-performance, wall-mounted wideband antenna designed to improve RF reception for wireless microphone systems. Its sleek, paintable enclosure ensures seamless integration into professional environments such as boardrooms, lecture halls, and conference rooms.
Shure UA864US Competitive Differences
- Wideband coverage from 470 to 698 MHz for compatibility with multiple Shure systems.
- Low-profile, paintable housing blends into corporate or classroom settings.
- Mounts on walls, ceilings, or metal surfaces for versatile installation options.
- 4-position selectable gain switch for optimal signal adjustment in any environment.
- Durable construction suitable for permanent installations.
Shure UA864US Description
The
Shure UA864US is tailored for permanent installations requiring superior RF reception. With its wide frequency range of 470 to 698 MHz, it supports Shure systems like ULX-D Digital, UHF-R, ULX, and the Axient wireless management network. A selectable gain switch with settings for attenuation and boosting ensures adaptability to various environments.

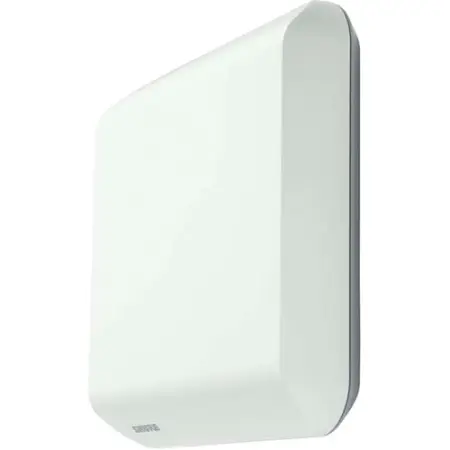

Its compact and neutral white housing can be painted to match surroundings, making it ideal for corporate and educational spaces. Whether mounted on a wall, ceiling, or metal surface, the UA864US delivers reliable performance and integrates seamlessly with its environment.
UA864US Features
- Wideband RF frequency range: 470 to 698 MHz
- Compatible with Shure ULX-D, UHF-R, ULX, and Axient systems
- 4-position selectable gain switch (+10, 0, -10, -20 dB)
- Low-profile, paintable enclosure
- Mountable on walls, ceilings, and metal surfaces
- Power via coaxial connection (10 to 15 VDC, 75 mA)
UA864US Specifications
- Connector Type: BNC female
- Impedance: 50 Ω
- Power Requirements: 10 to 15 VDC bias, 75 mA
- RF Frequency Range: 470 to 698 MHz
- Reception Pattern: 100° beam width at center frequency
- Third Order Intercept Point (3 OIP): >30 dBm
- Antenna Gain: 2.5 dBi at center frequency
- Signal Gain: ±1 dB, switchable +10, 0, -10, -20 dB
- RF Overload LED Threshold: −15 dBm
- Operating Temperature Range: 20 to 120° F (−7 to 49° C)
- Storage Temperature Range: -20 to 165° F (−29 to 74° C)
- Dimensions: 7 x 7 x 2" (176 x 176 x 51 mm)
- Weight: 17.2 oz (487 g)
- Shipping Dimensions: 12 x 9.05 x 3.25"
- Shipping Weight: 2.11 lb
