Improve Wireless Mic Clarity with Targeted Band-Pass Filtering
The

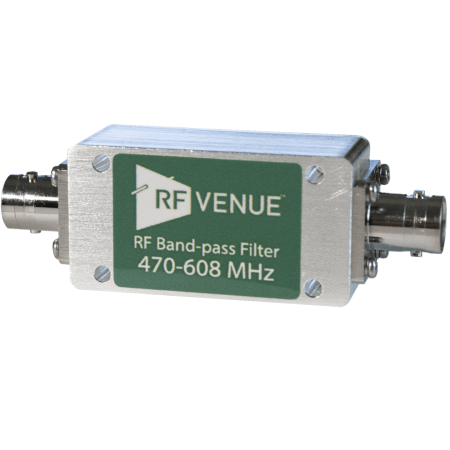

RF Venue BPF470T608 band-pass filter is an essential upgrade for wireless microphone systems operating in the 470–608 MHz UHF band. By eliminating out-of-band signals, this compact in-line filter ensures cleaner audio, better signal integrity, and enhanced performance reliability—especially in congested RF environments.
RF Venue BPF470T608 Competitive Differences
- Filters out RF interference outside the 470–608 MHz spectrum
- Over 40 dB rejection for out-of-band signals, reducing intermodulation distortion
- Industry-standard BNC connectors for fast, simple in-line setup
- Compact 3” x 1.75” design with included Velcro for easy mounting
- No power required – passive hand-tuned design
RF Venue BPF470T608 Description
Wireless microphone systems are vulnerable to RF interference, especially in crowded venues or urban areas. The
RF Venue BPF470T608 provides a simple and effective solution by filtering out all signals outside the critical 470–608 MHz band. This reduces the likelihood of signal saturation, dropouts, and distortion caused by external sources.
Installation is quick and tool-free: connect the filter between your wireless mic antenna and receiver using its integrated BNC connectors. Once installed, the BPF470T608 offers professional-grade filtering without requiring any power, tuning, or user setup.
Compatible with virtually all UHF wireless microphone systems operating within the specified band, this filter is ideal for live sound professionals, houses of worship, studios, and touring engineers seeking bulletproof wireless performance.
RF Venue BPF470T608 Features
- Designed specifically for wireless mics operating in the 470–608 MHz UHF band
- Provides over 40 dB rejection of signals outside the operating range
- Hand-tuned, passive band-pass filter with no power requirements
- Mountable via included Velcro for installation convenience
- Prevents out-of-band signal overload and improves dynamic range
BPF470T608 Technical Specifications
- Pass Band: 470–608 MHz
- Insertion Loss (max): 3.5 dB
- In-Band Ripple (max): 1.5 dB
- VSWR (max): 1.5
- Rejection:
- 40 dB @ DC–412 MHz
- 20 dB @ 412–426 MHz
- 20 dB @ 655–668 MHz
- 40 dB @ 668–1000 MHz
- Power Handling: 2W
- Operating Temperature: -22°F to 158°F (-30°C to 70°C)
- Connectors: BNC (male/female)
- Dimensions: 3" x 1.75"
System Compatibility (Sample List)
- Shure G50, G1, G5, H5
- Sennheiser A, A1, G, 6000/9000 Series
- Audio-Technica DE2, EE1
- Lectrosonics B19, B20, B21, B22, B23
Enhance the performance of your wireless microphones with the RF Venue BPF470T608 band-pass filter—your first line of defense against RF interference.
RF VENUE BPF470T608
(RF Venue BPF-470-T-608)
