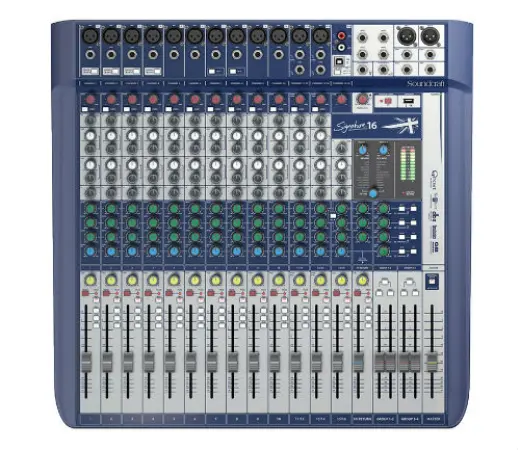

The Soundcraft Signature 16 is a high-performance 16-input small format analog mixer with onboard effects. It features smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. This mixer is built using tour-grade robust metal construction and top-quality components and has an internal universal power supply.
The Signature 16 incorporates Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal-to-noise ratio. This mixer also employs Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.
The Signature 16 includes a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. It offers XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.
Additionally, the Signature 16 comes equipped with a 2-in/2-out USB interface, and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.
Features:
High-Performance 16-input small format analog mixer with onboard effects
Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
dbx® Limiters (High-ratio Compressors) on input channels
2-in/2-out USB audio playback and recording
Switchable Hi-Z inputs for guitars, basses and other instruments
Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
Comprehensive Soundcraft® GB Series audio routing
Smooth premium-quality faders
Robust metal construction for tour-grade build quality and reliability
Internal universal power supply
Soundcraft Signature 16 Specifications:
Channels: 16
Soundcraft Ghost Preamps: 12
Soundcraft Sapphyre EQ: 4-band (2 bands of swept mids)
dbx Limiters on Inputs: 4
Lexicon Effects: Single Engine
USB Interface: 2-in/2-out
Auxes: 4
Subgroups: 4 mono / 2 stereo
Faders: 100mm
