Yamaha AG03

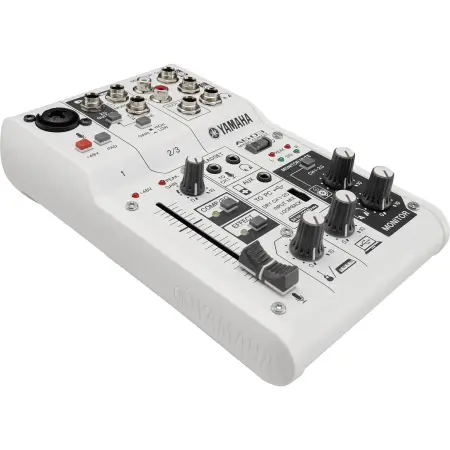

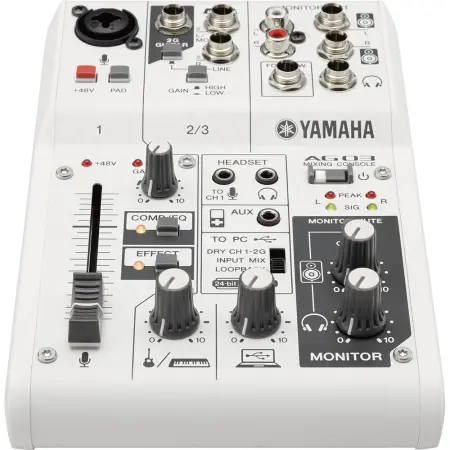

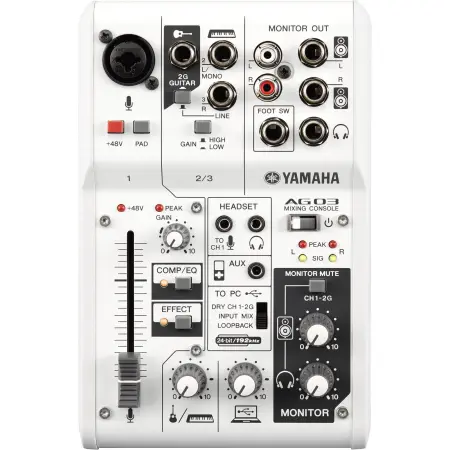

The AG03 from Yamaha is a compact 3-input mixer and USB interface with built-in DSP for sound-reinforcement and recording of small performances, podcasts, lectures and similar applications. Capable of recording and playback of high-resolution 24-bit/192 kHz sound, this mixer features one XLR/1/4" combo mic/line input, as well as stereo 1/4" line inputs with level control, and a Hi-Z switch for direct recording of guitar and bass. The mixer is compatible with Windows, Mac and iPad.

The XLR/1/4" combo mic/line input is equipped with a D-PRE mic preamp that was originally designed by Yamaha for use in their high-end recording gear. This channel features switchable 48V phantom power for use with dynamic and condenser microphones, and also features a pad switch for recording loud sound sources such as guitar amplifiers.

The AG03 mixer has stereo 1/4" and stereo RCA outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as an 1/8" aux input for monitoring portable devices and headset connectivity.

On-Board DSP
On-board 1-TOUCH DSP adds set COMP/EQ and EFFECT to signal path. For more precise control of these settings, the multi-platform AG DSP Controller software (download) allows users to access and edit the compressor, EQ, high-pass filter, and reverb

Perform and Broadcast Over Backing Tracks
LOOPBACK function allows users to broadcast their musical, or non-musical content live online along with backing tracks or additional audio from PC or Mac computers or an iPad

Features:
1x Mic/Line Combo Input
Stereo 1/4" Line Inputs
Record and Playback up to 24-Bit/192 kHz
Built-In DSP
1x "D-PRE" Mic Preamp
48V Phantom Power
Hi-Z Switch for Recording Direct Guitar
1/4" & RCA Stereo Outs
USB Bus or iPad Powered
Works With PC, Mac and iPad

Specifications:
Form Factor Tabletop
Display None
Channels of I/O 3 Input / 4 Output
Max Sample Rate/Resolution 192 kHz / 24-Bit
Number of Mic Preamps 1
Built-In Microphone None
Input Level Adjustment 2 x Knob
1 x Fader
Expansion Slots None
Signal Processing
Pad -26 dB
Solo/Mute Mute per Master
Connectivity
Analog Audio I/O 1 x Combo XLR-1/4" TRS Input
1 x 1/4" TRS Line Input
2 x 1/4" TRS Stereo Input
Phantom Power 48 V
Digital Audio I/O None
Host Connection / USB 1 x USB Type-B (Class-Compliant USB 2.0)
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Digital Audio
Sample Rates Up to 192 kHz
Sample Rate Conversion None
Bit Depths Up to 24-Bit
Sync Sources None
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility Windows 7 or Later
macOS 10.7 or Later
Included Software Cubase AI
Included Plug-Ins None
Mobile Device Compatibility iPad 2nd Gen. or Later (with USB OTG (On-The-Go))
Required Hardware USB Port
Internet Connection Required for Software/Driver Download, Media Streaming
Power
Power Requirements USB Bus Power
AC/DC Power Adapter 5 V at 500 mA
Power Consumption 2.5 W (Maximum)
Physical
Dimensions 8 x 5.1 x 2.5" / 202 x 129 x 63 mm
Weight 1.8 lb / 0.8 kg
