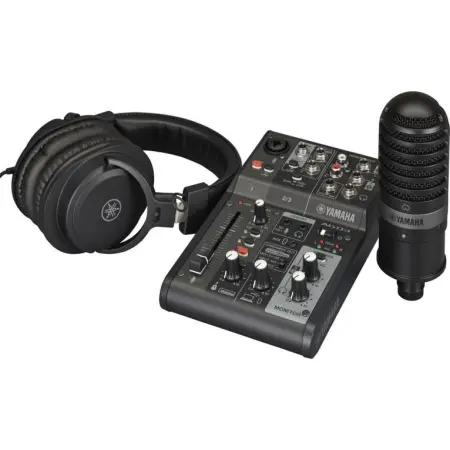

The black Yamaha AG03MK2 3-Channel Mixer/Interface Live Streaming Pack bundles together a mixer, microphone, headphones, and cable for podcasting/streaming applications, voiceover work, and vocal recording with your Mac/Windows computer or iPhone.
The AG03MK2 mixer offers flexible connectivity options and podcast-ready features including a 3.5mm TRRS in/out jack and loopback functionality. The YCM01 mic is a condenser mic with a cardioid pickup pattern that focuses audio capture on the subject in front of the mic for less background sound. Connect the mic to the mixer with the included 9.8' XLR cable, and monitor your audio using the included pair of YH-MT1 high-fidelity headphones.
Yamaha AG03MK2 3-Channel Mixer & USB Audio Interface (Black)
The black AG03MK2 from Yamaha is a compact 3-channel mixer and USB interface with built-in DSP for streaming, sound reinforcement, and recording small performances, podcasts, lectures, and similar applications. This updated MK2 version adds a mute button and 3.5mm TRRS input for more flexible live streaming work; it also features an improved build design with updated circuitry for better sound. Capable of recording and playback of high-resolution 24-bit / 192 kHz sound, this mixer features one XLR-1/4" combo mic/line input, as well as stereo 1/4" line inputs with level control, and a 3.5mm aux input for portable music players and headsets. The mixer is compatible with Windows/Mac computers as well as iPads and iPhones.
The XLR-1/4" combo mic/line input features switchable 48V phantom power for use with a condenser microphone, and input 2 offers a Hi-Z switch for use with an electric guitar or bass. The AG03MK2 mixer has stereo 1/4" and stereo RCA outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring.
Features:
1-Person Streaming/Podcasting, Recording
AG03MK2 Mixer and USB Audio Interface
YCM01 Cardioid Condenser Microphone
YH-MT1 Headphones, XLR Mic Cable
Mic/Line Combo Input
Stereo 1/4" Line Inputs
Record & Playback up to 24-Bit / 192 kHz
Zero-Latency DSP FX
USB Bus or iPad Powered
Works With PC, Mac, and iPad
Specifications:
Mixer
Number of Analog Input Channels 3 (1 Mono / 1 Stereo)
Number of Mic Preamps 1
Analog Output Channels 1 x Stereo Control Room/Monitor Output
1 x Stereo Tape/Record Output
1 x Stereo Headphone Output
Max I/O Capacity 3 x Input / 2 x Output
Mix Routing 1 x Insert per Mono Input Channel, Stereo Input Channel
Faders 1 x 2.4" / 60 mm Channel Fader
Meters Main Meter:
2 x 2-Segment LED
Signal Processing
Input Pad -26 dB (Line Inputs, Hi-Z Inputs)
Dynamic Processing Input Channels:
Compressor
EQ Input Channels:
4-Band Parametric
Built-In Effects 1 x Stereo Reverb
Digital Audio
Sample Rates Up to 192 kHz
Bit Depth Up to 24-Bit
Performance
Frequency Response 20 Hz to 48 kHz (at 192 kHz)
Crosstalk -80 dB
EIN -128 dBu
Noise Floor -103 dBu
THD+N Analog Input to Analog Output:
0.01% at Min Gain (+4 dBu)
Connectivity
Analog Inputs 1 x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input
1 x 1/4" TS Unbalanced Line/Hi-Z Input
1 x 1/4" TS Unbalanced Line Input
1 x 1/8" / 3.5 mm TRS Balanced Mic/Aux Input
1 x 1/8" / 3.5 mm TRRS Balanced Stereo Line Input
Analog Outputs 2 x RCA Coaxial Unbalanced Mono Monitor/Record Output (1 Stereo Pair)
2 x 1/4" TS Unbalanced Mono Monitor/Record Output (1 Stereo Pair)
1 x 1/4" TRS Balanced Stereo Headphone Output
1 x 1/8" / 3.5 mm TRRS Unbalanced Stereo Output
1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Output
Phantom Power +48 V, Selectable On/Off
Digital I/O None
MIDI I/O None
USB 1 x USB Type-C (USB 2.0, 2-Track Record, Audio Playback, Audio Streaming, Control, Host Connection)
Bluetooth None
Compatibility
OS Compatibility macOS
Windows
iOS
Mobile Device Compatibility iPad
iPhone
Internet Connection Required for Software/Driver Download, Media Streaming
Required Hardware USB Port
Power
DC Input Power 5 VDC at 900mA (USB Bus Power)
Power Consumption 4.5 W (Maximum)
Physical
Rack Mountable No
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 5 x 2.5 x 7.9" / 12.6 x 6.3 x 20.1 cm
Weight 1.8 lb / 0.8 kg
Packaging Info
Package Weight 2.565 lb
Box Dimensions (LxWxH) 10 x 8.1 x 4.5"
Yamaha YCM01 Cardioid Condenser Microphone (Black) Specs
Microphone
Primary Applications Studio Recording
Form Factor Stand/Boom Mount
Intended Sound Sources Vocals, Speech/Voice Over, Instrument
Sound Field Mono
Capsule 1 x Electret Condenser
Polar Pattern Cardioid
Orientation Side Address
Circuitry Solid-State
Pad None
High-Pass Filter None
Gain Adjustment None
Indicators 1 x Blue Single LED (Power)
Performance
Frequency Range 30 Hz to 20 kHz
Maximum SPL 130 dB SPL
Impedance 200 Ohms ± 30% at 1 kHz
Load Impedance ≥ 1000 Ohms
Sensitivity -37 dB
Equivalent Noise Level 23 dB A-Weighted
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin Male (on Mic)
Headphone Connector None
Power
Operating Voltage 48 V
Operating Current Consumption 2 mA
Physical
Color Black
Mounting Boom, Floor Mic Stand (with Included Hardware)
Mounting Thread Size Not Specified by Manufacturer
Included Case None
Included Filters None
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions ø: 2.2 x H: 6.5" / ø: 55 x H: 166 mm
Weight 0.9 lb / 0.4 kg
Packaging Info
Package Weight 1.975 lb
Box Dimensions (LxWxH) 9.8 x 8 x 4.4"
