Connect. Express. Inspire.
Now more than ever, people are communicating with audiences, friends, and colleagues online. Whether you’re a hobbyist, professional, or somewhere in between, the YCM01U USB microphone was designed to give you and your audience a natural and comfortable listening experience that adds an extra touch of professionalism to your streaming or remote working environment.

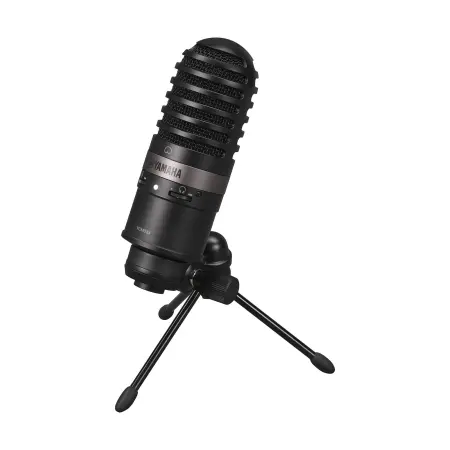

Close-up view of YCM01U
A streaming setup in a matter of seconds
Creating your own streaming or telework setup has never been easier. No driver installation is required — simply connect the included USB cable to a computer or iOS device and you’re ready to go. Operating the YCM01U is just as simple, with intuitive volume control of your voice and the person/people you’re communicating with assigned to a single dial on the microphone body. Headphones/earphones can be connected directly to the stereo mini jack on the back of the main unit.
*Some devices may require an additional adapter.
Angle view of YCM01U
High-definition condenser microphone
The YCM01U’s capsule is a unidirectional or “cardioid” condenser type, capable of capturing the full texture and power of your voice while simultaneously conveying the most subtle nuances. The cardioid design suppresses unwanted ambient noise from the rear of the microphone, creating a clear and comfortable sonic experience for listeners that allows them focus on what you’re saying.
Close-up view of YCM01U
Retro-modern design
The head of the YCM01U is decorated with thick lines to create a modern yet nostalgic look reminiscent of iconic condenser microphones that have become a staple of professional audio environments the world over. Available in white or black, the YCM01U looks great as a desktop microphone, adding flair to your room's interior décor.

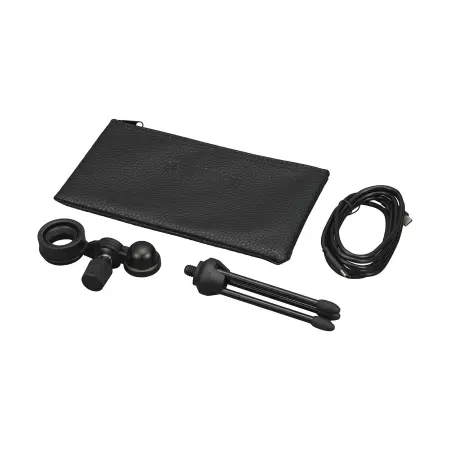

Close-up view of microphone pouch
Practical accessories
In addition to the USB cable, the YCM01U comes with a microphone stand. You can also store and carry the microphone in the included microphone pouch without worrying about damaging the unit.
FEATURES:
Follows the retro-modern design of the AG01 and YCM01
Plug-and-play USB-C connection
Zero-latency monitoring
Fewer knobs, simple operation
SPECIFICATIONS:
Microphone UnitPolar PatternAddress TypeFrequency ResponseMax Input SPLSensitivityConnectorDimensions (Microphone Only)Weight (Microphone Only)OutlineInput ChannelsMicrophoneUSBOutput ChannelsPHONESUSBFunctionsUSBUSB AudioUSB DC Power inputGeneral specificationsPower requirementsPower consumptionIncluded AccessoriesOthers
YCM01U
YCM01U
Microphone
Microphone Unit Back electret condenser type
Polar Pattern Cardioid
Address Type Side
Frequency Response 30 Hz - 20 kHz
Max Input SPL 111 dB (THD ≤1.0% at 1 kHz)
Sensitivity -33 dB±3 dB (0 dB=1 V/Pa, 1 kHz)
Connector USB Type-C (USB2.0)
Dimensions (Microphone Only) 55 x 166 mm (2.2" x 6.5")
Weight (Microphone Only) 0.5 kg (1.1 lb)
Outline
Input Channels Microphone 1 (Mono condenser microphone)
USB 1
Output Channels PHONES 1 - Stereo mini
USB 1
Functions Microphone volume adjustment dial x 1, Headphones volume adjustment dial x 1
USB USB Audio 1 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 16-bit, Type-C
USB DC Power input 1 - Type-C, 5 V DC, 100 mA
General specifications
Power requirements USB DC 5 V, 100 mA
Power consumption Max. 0.5 W
Included Accessories USB C to C Cable x 1, Mic stand adapter (5/8 inch to 3/8 inch adapter included) × 1, Mic stand × 1, Pouch x 1, Read This First (manual) x 1
Others Operating Temperature: 0 to +40 °C
