Yorkville EL18S

Powered PA Subwoofer

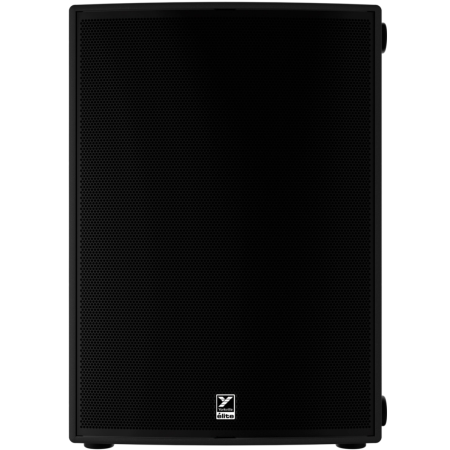

Yorkville EL18S is a high-output powered subwoofer designed for professional live sound reinforcement, DJs, venues, and event production. Featuring an 18" woofer with a 4" voice coil and 3200 watts of peak power, it delivers deep, controlled low-frequency performance with exceptional output and clarity.

Yorkville EL18S Competitive Differences

• 3200W peak power with deep bass response down to 35Hz
• Durable 15mm birch plywood cabinet with integrated casters and dual pole mounts

Yorkville EL18S Description

The Yorkville EL18S is engineered to provide powerful low-frequency reinforcement for professional audio systems. Its high-performance 18-inch woofer with a 4-inch voice coil delivers strong bass impact while maintaining clarity and control in demanding live environments.

Powered by a built-in amplifier delivering 3200 watts peak output, the EL18S achieves a maximum SPL of 140 dB peak, making it suitable for mobile DJs, bands, clubs, houses of worship, and event production applications. The subwoofer extends down to 35Hz, providing solid low-end support for modern music playback and live performance.

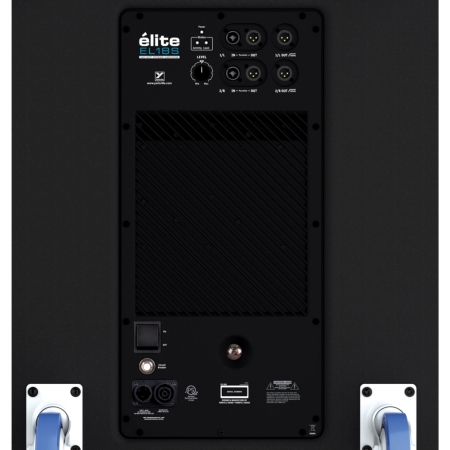

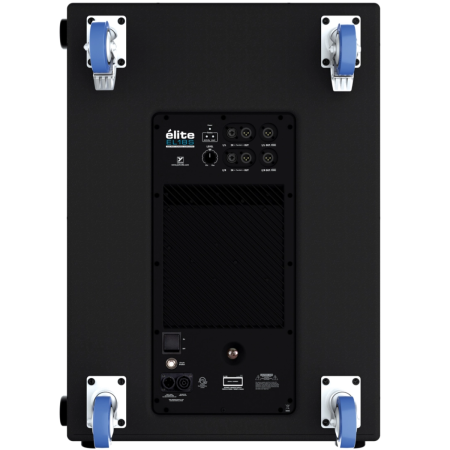

The rear panel includes dual combo XLR/TRS inputs, full-range XLR link outputs, and dedicated high-pass XLR outputs for seamless integration into professional PA systems. An onboard limiter helps protect the system during high-output operation.

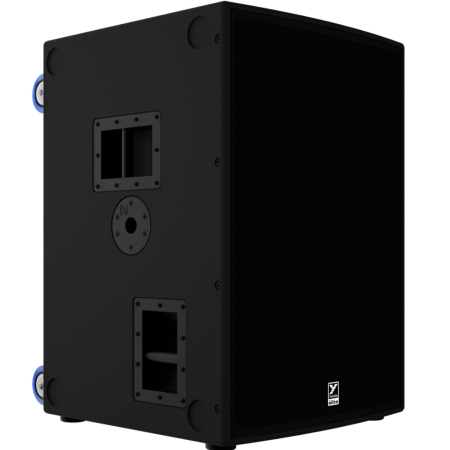

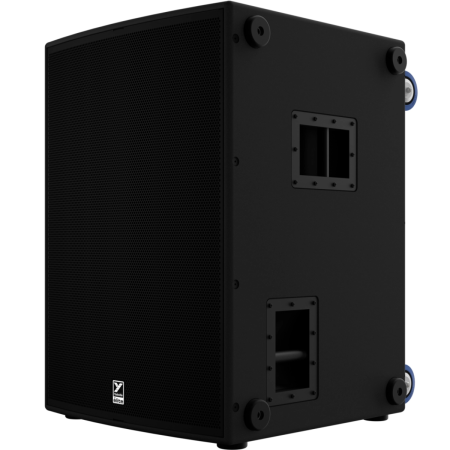

Constructed from rugged 15mm birch plywood and finished with textured paint, the EL18S is designed for road-ready durability. Integrated casters, multiple carry handles, and top and side pole mount adapters provide flexibility for transport and system configuration.

EL18S Features

• Powered 18" subwoofer
• 3200W peak power output
• 1600W program power
• 18" woofer with 4" voice coil
• Onboard limiter protection
• Dual combo XLR/TRS inputs
• Full-range XLR link outputs
• High-pass XLR outputs
• powerCON TRUE1 compatible power connectors
• 15mm birch plywood cabinet construction
• Integrated casters and multiple handles
• Top and side pole mount adapters
• Made in Canada

EL18S Specifications

• System Type: Powered Subwoofer
• Power Rating: 3200W Peak / 1600W Program
• Maximum SPL: 140 dB Peak / 134 dB Continuous
• Frequency Response: 35 Hz – 100 Hz (+/- 3 dB)
• Crossover Frequency: 100 Hz
• LF Driver: 18" woofer with 4" voice coil ceramic magnet
• Inputs: 2 x Combo XLR / 1/4" TRS
• Outputs: 2 x XLR High-Pass, 2 x XLR Full-Range Link
• Power Connectors: powerCON TRUE1 compatible input/output
• Power Consumption: 4A typical / 10A max
• Enclosure Material: 15mm Birch Plywood
• Grille: Powder-Coated Steel
• Finish: Textured Paint
• Dimensions: 24.8 x 25.7 x 35.7 in (63 x 65.3 x 90.7 cm)
• Depth with Casters: 29.8 in (75.7 cm)
• Weight: 176.5 lb (80 kg)

What's In The Box

• Yorkville EL18S Powered Subwoofer

Yorkville EL18S (Yorkville EL-18S)
