LED Pixel Driver
Acclaim PIX001 is a low-voltage DMX driver built to control multi-color LED fixtures with precision and flexibility. Designed for use in architectural and entertainment lighting systems, it offers stable dimming and simple integration with DMX networks. Its compact size and removable terminal blocks make it ideal for tight installations.
Acclaim PIX001 Competitive Differences
- DMX control of up to 5A multi-color LED products
- 12–24VDC input and output range for broad compatibility
Acclaim PIX001 Description
The

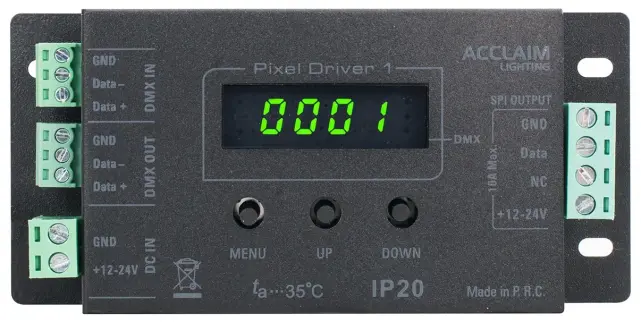

Acclaim PIX001, also known as Pixel Driver 1, is a PWM dimming driver designed for low-voltage LED installations requiring smooth, responsive control. It supports up to 5A total output across multiple channels, making it suitable for RGB or tunable white LED systems.
It accepts 12–24VDC input and delivers the same voltage output, ensuring compatibility with standard low-voltage power supplies. When connected to a DMX system, the driver provides fine-tuned dimming capabilities. Alternatively, manual color settings can be configured when external control isn't available.

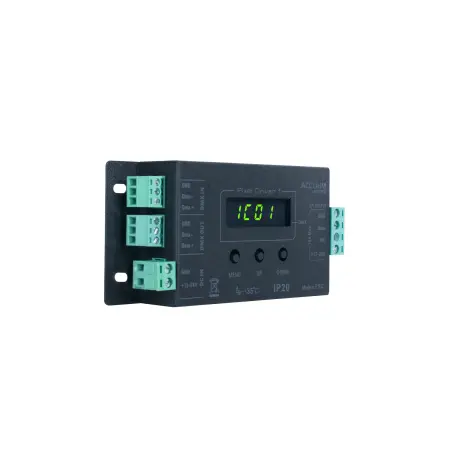

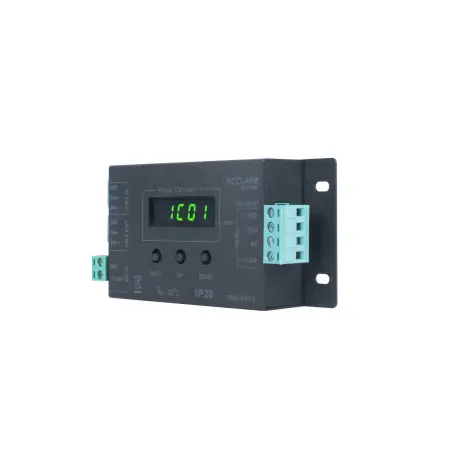

The unit is housed in a lightweight black polycarbonate enclosure with removable multi-pin terminal blocks for streamlined wiring. It's a great choice for dry indoor environments where flexible, DMX-driven LED control is required.
Model Features
- Supports PWM dimming via DMX
- Manual color setting available
- Removable multi-pin terminal blocks
- Black polycarbonate housing
- ETL and CE certified
Model Specifications
- Input Voltage: 12–24VDC
- Output Voltage: 12–24VDC
- Output Power: 5A total
- Control Protocol: DMX
- Connectors: Removable terminal blocks
- Material: Black polycarbonate
- Certifications: ETL, CE
- Impact Protection: IK02 (0.2 joule impact)
- Ingress Protection: IP20 (dry location only)
- Ambient Temperature Range: 14°F to 131°F (-10°C to 55°C)
- Weight: 1.6 oz (45 g)
- UPC: 815853025953
What's In The Box
- Pixel Driver 1 (PIX001)
- Removable terminal blocks
- Quick start guide
Acclaim PIX 01
(Acclaim Driver 01 Pixel Controller)
