This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

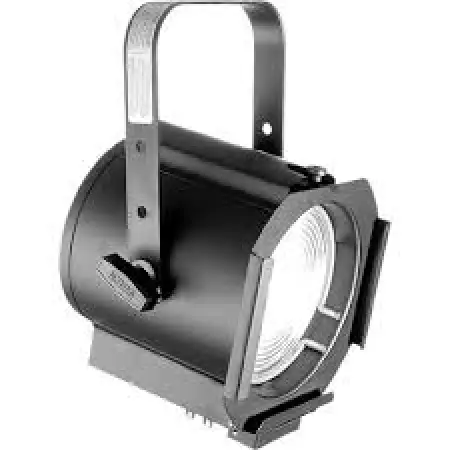

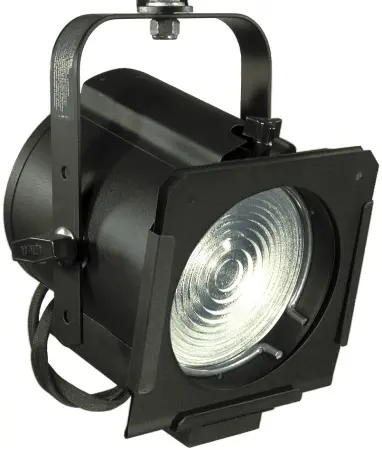

The Altman 65Q 6" fresnel is a lightweight, short-throw, all-purpose lighting device that produces a soft-edged beam varying in diameter from 4.2 feet to 21 feet at a throw distance of 15 feet. The 65Q is designed for operation with long-life, high-intensity tungsten-halogen lamps. The luminaire is used in theatre for acting area lighting where beam shaping is not required, or in television studios for key and back lighting. Other uses include nightclubs, museums and show windows where soft-edged controlled lighting is required.
Altman 65Q 6" Fresnel Features:
Sheet-steel welded construction
Specular spherical Alzak aluminum reflector
Spot-to-flood focus adjustment
6" heat-resistant fresnal lens
Medium prefocus socket
Color frame and safety cable with spring clip included
Three 36" Teflon lead wires
Up to 25' of Hi-Temp rubber cable optional
U.L.-, c.U.L.-, and CE-listed for 750 watts
Made in the U.S.A.
Altman 65Q 6" Fresnel Specifications:
Housing: Sheet-Steel construction
Materials: Corrosion-resistant materials and hardware
Yoke: Rigid flat steel with clearance hole for 1/2" bolt
Reflector: Alzak aluminum, spherical design
Lens: Pyrex fresnel lens with stippling on flat surface
Socket: Altman medium prefocus, tool-free relamping
Rating: 120/240 volts AC/DC operation, 6.3/3.1 amps,750 watts maximum
Cable: 36" Teflon leads encased in black fiberglass sleeving. Up to 25 ft Hi-Temp rubber cable optional
Access Door: Hinged, allows tool-free access to lens, reflector and lamp
Focusing: Adjusted with locking thumb screw on bottom surface
Accessories: Accepts standard 7 1/2" accessories
Finish: Black epoxy Sandtex, electrostatic application
Weight: Approx. 9.0 lbs
