ompact, lightweight, and designed for reliability, the TS415 2500W Active Loudspeaker from Alto Professional is a versatile 2-way PA speaker that delivers potent, room-filling sound for nearly any application. Bluetooth compatibility allows you to stream your audio wirelessly or connect a second loudspeaker for a completely cable-free stereo setup.

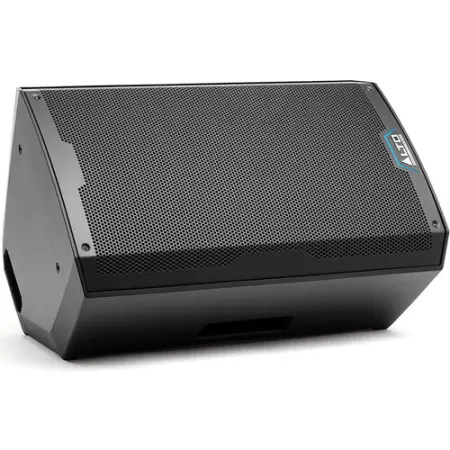

The TS415 features two combo XLR-1/4" balanced inputs with an XLR output for your final mix or for linking directly to a second loudspeaker. An onboard mixer makes dialing in the perfect performance a cinch, but further options are provided by the free Alto App to remotely adjust any settings, including custom 5-band EQ presets and three DSP speaker modes, with instant recall ability. The loudspeaker even comes with flexible mounting options for meeting any application demand, whether it requires freestanding placement, wedge monitor use, pole socket mounting, or even flown rigging.
True Sonic Power
Whether you need a powerful vocal PA or club-shaking bass performance for a DJ set, TS4 speakers deliver loud, clear, room-filling sound for any application. With a 15" woofer, and a 1.4" compression driver, the TS415 provides 2500W of class-leading power and clarity in equal measure.
15" woofer, 1" ceramic compression driver
Class-D 2500W peak amplifiers (1600W LF, 900W HF)
2 kHz crossover frequency
90 x 60° horn dispersion
Wide 44 Hz to 20 kHz frequency response
Free Remote Control App
Available free for both Android and iOS, the Alto App gives hands-on remote control over Bluetooth levels, Speaker Use modes, Custom EQ, and Sub Size selection. Further, true-wireless stereo linking can be configured remotely via the app to save time during setup. A USB charging port is also included to keep your smart device fully powered.
Three DSP Speaker Modes
TS415's three preset Speaker Use modes let you optimize the speaker for any application, so you'll get great sound every time at the touch of a button. For even more control over your sound, you can configure a custom EQ within the Alto App and remote adjust the settings from any listening point in the venue. You can even save your favorite custom EQ setting direct to the TS415 for easy recall whenever you need it.
Simple Bluetooth Streaming and Speaker Linking
As an ideal high-powered streaming solution, TS415's built-in Bluetooth connectivity makes it easy to pair your laptop, phone, or tablet and get the music pumping in no time at all. With the True Wireless Stereo function, you can stream Bluetooth audio to two TS4 speakers in perfect stereo without the need for any cables.
SPECIFICATIONS:
Configuration
Active 2-Way
Enclosure Type
Loudspeaker
Total Power Capacity
2500 W Peak
HF Driver
1 x 1" / 2.5 cm Ceramic Compression Driver
MF Driver
No
LF Driver
1x 15" / 38.1 cm Woofer
Frequency Range
33 Hz to 20 kHz -10 dB
Wireless Connectivity
Bluetooth
Color
Black
Enclosure Type
Loudspeaker
Total Power Capacity
2500 W Peak
Amplifier Power Rating
LF:
1 x 1600 W Peak (at 2 Ohms)
1 x 800 W RMS (at 2 Ohms)
HF:
1 x 900 W Peak (at 4 Ohms)
1 x 450 W RMS (at 4 Ohms)
Amplifier Class
HF/LF:
Class-D
Drivers
HF Driver
1 x 1" / 2.5 cm Ceramic Compression Driver
HF Voice Coil
1.4" / 3.6 cm
MF Driver
No
LF Driver
1x 15" / 38.1 cm Woofer
LF Voice Coil
2.5" / 6.3 cm
Performance
Frequency Range
33 Hz to 20 kHz -10 dB
Frequency Response
44 Hz to 20 kHz ±3 dB
Maximum SPL
135 dB (Peak)
132 dB (Continuous)
Coverage Angle
90° H x 60° V
Gain Range
Line Input:
to +10 dB
Mic Input:
to +50 dB
I/O Impedance
1/4" Line Input:
10 Kilohms (Unbalanced)
20 Kilohms (Balanced)
XLR Mic Input:
1.2 Kilohms (Balanced)
Protections
Signal Limiter, Thermal, Transducer Overdrive
Connectivity
Audio I/O
2x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input
1x XLR 3-Pin Male Balanced Link/Mix Output
Network I/O
No
USB I/O
1x USB-A 2.0 (Device Charging)
Wireless Connectivity
Bluetooth
Bluetooth
Yes
Mobile App Compatible
Yes: Android & iOS
App Name: TrueSonic TS4
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
Signal Processing
Crossover
2 kHz
EQ
No
Parametric EQ
Yes
Semi-Parametric EQ
No
Filters
1x High-Pass
Dynamic Processing
Peak Limiter
Alignment Delay
No
Phase Adjustment
No
Digital Signal Processing
Voicing Modes (Adjustable via Optional Software)
Power
AC Input Power
100 to 120 VAC, 50 / 60 Hz (T 10 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 5 A L 250 V)
AC Power I/O
1x IEC Input
Power Consumption
1100 W
Physical
Color
Black
Mounting
1 x 1.4" / 36 mm Pole Socket (Bottom)
2 x M10 Fly Point (Top)
Handles
1x Each Side
Environmental Protection
No
Construction Material
Metal Grille, Plastic
Operating Temperature
14 to 113°F / -10 to 45°C
Dimensions
25.3 x 16.4 x 15.8" / 64.3 x 41.7 x 40.1 cm
Weight
38 lb / 17.2 kg
Packaging Info
Package Weight
50.18 lb
Box Dimensions (LxWxH)
29 x 20.25 x 19.5"
