Versatile 12-Inch Powered Speaker for Live Sound and Monitor Applications
The
Alto TX312 is a compact yet powerful 700-watt powered speaker built to deliver high-performance sound reinforcement in any live setting. Featuring a bi-amplified Class D design, precision horn-loaded driver configuration, and integrated EQ shaping, this speaker is the ideal choice for DJs, bands, mobile entertainers, or venues needing clear and reliable audio night after night.
Alto TX312 Competitive Differences
- 700W peak (350W continuous) Class D amplifier delivers high output with minimal distortion
- 12-inch woofer with 2-inch voice coil for full low-frequency extension
- 1-inch titanium HF compression driver provides crisp, articulate highs
- Bi-amplified design with active crossover ensures accurate frequency separation
- 90° x 60° horn improves coverage and projection for audiences
- Contour switch provides +3 dB boost to lows and highs for enhanced tone
- Ground-lift switch eliminates unwanted hum or buzz in complex setups
- Rugged polypropylene cabinet with full metal grille and wedge monitor shape
- Standard 36mm pole socket for easy mounting on speaker stands
Alto TX312 Description
The
TX312 from Alto Professional is a full-featured 12" powered PA speaker built with performance, portability, and protection in mind. Utilizing advanced Class D amplification, the TX312 delivers 700 watts peak power (350W continuous) in a lightweight cabinet that’s tough enough for heavy-duty use on the road or in installations.
Its bi-amplified design features a 12-inch woofer with a 2-inch voice coil for rich, deep bass and a 1-inch titanium compression driver for clean, accurate highs. A carefully designed horn ensures controlled dispersion with a 90° horizontal x 60° vertical pattern, perfect for evenly covering audience areas.
The built-in contour switch enhances your sound with a +3 dB boost to both low and high frequencies, ideal for live music playback or DJ events. Additionally, a ground-lift switch helps eliminate hum when needed. With its multiple mounting options, including a 36 mm pole mount and wedge-friendly cabinet shape, the TX312 can serve as a front-of-house speaker or a stage monitor.
This speaker is designed to provide high-fidelity audio reproduction, system flexibility, and professional-grade durability—making it a reliable solution for any mobile sound application.
TX312 Features
- 700W peak / 350W continuous Class D amplifier
- 12” low-frequency woofer with 2” voice coil
- 1” titanium HF compression driver
- Bi-amplified 2-way system with precision active crossover
- 90° H x 60° V horn for wide and consistent coverage
- Contour EQ switch for LF and HF boost (+3 dB)
- Ground-lift switch for eliminating unwanted noise
- Rugged injection-molded polypropylene cabinet with metal grille
- Dual handles and wedge design for use as a floor monitor
- Standard 36 mm pole socket
TX312 Specifications
- Amplifier: Class D, 700W peak / 350W continuous
- LF Driver: 12” woofer with 2” voice coil
- HF Driver: 1” titanium diaphragm compression driver
- Frequency Response: 70 Hz – 20 kHz (-3 dB)
- Crossover Frequency: 2.5 kHz
- Max SPL: 120 dB @ 1m
- Coverage Pattern: 90° H x 60° V
- Inputs: 1 x XLR/TRS combo (Line/Mic)
- Outputs: 1 x XLR Link Out
- Power Input: IEC cable

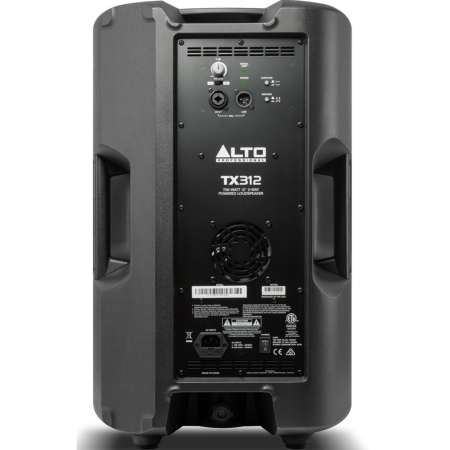

- Controls: Volume, Contour, Ground Lift, Power
- Enclosure: Polypropylene, metal grille, rubber feet
- Mounting: 36 mm pole socket, floor wedge
- Dimensions (H x W x D): 23.7” x 15.0” x 13.5” (602 x 381 x 343 mm)
- Weight: 29.3 lbs (13.3 kg)
The Alto TX312 is the perfect powered loudspeaker for musicians, DJs, and venues looking for affordable, reliable performance with professional features.
ALTO TX312
(Alto TX-312)
