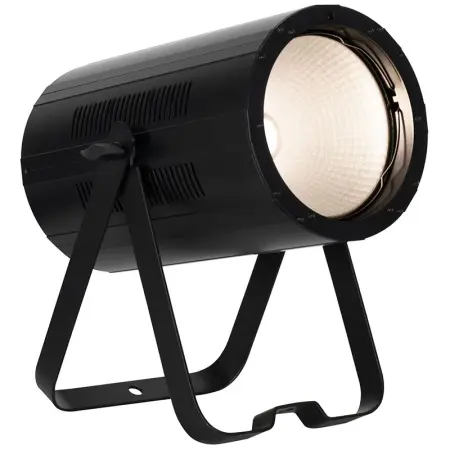

Featuring a high output 200-Watt COB (Chip On Board) LED engine, the ADJ COB Cannon LP200 is a potent color mixing wash lighting fixture. It’s 5-in-1 light source combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors with a high CRI, plus a tunable white color temperature between 2300K and 9900K. A compact and versatile fixture, it offers a wide 80-degree native beam angle but is also supplied with both 40-degree and 50-degree lens options.
FEATURES:
Primary / Secondary Mode
Flicker Free operation (No flickering on camera)
Produces powerful, smooth RGBAL color mixing with
rich palettes of color
Scissor yoke allows fixture to be mounted on truss or
set on the ground
Optional Barn Doors (BAR001) sold separately
SPECIFICATIONS:
OPTICAL:
Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine
LED Engine Life Rating: Approximately 50,000 hrs.
CRI: >90
Tunable White Color Temperature: 2300~9900K
80-degree beam angle
Includes lens kit to change to 40-degrees or 50-degrees beam angle
CONTROL:
10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)
Linear color temperature control via DMX
Built-in color temperature presets accessible via DMX
64 built-in color macros

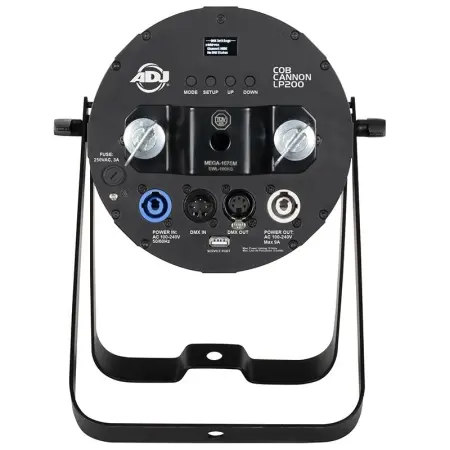

4-button OLED digital DMX display on rear panel
Compatible with the ADJ UC IR remote control (included)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
6 selectable Dim Modes (Standard, Stage, TV,
Architectural & Theatre)
4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)
Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)
CONNECTIONS:
5-pin XLR connectors for DMX data linking
Indoor locking power In & Out connections to daisy chain power
USB Service Port
ELECTRICAL:
Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
Power Draw: 175W max
Daisy chain up to 5 fixtures (120V) or 10 fixtures (230V) maximum
DIMENSIONS / WEIGHT:
Dimensions (LxWxH): 16.25”x9.75”x7.5” / 415x245x192mm)
Weight: 9.45 lbs. / 4.30 kg.
WHAT’S INCLUDED:
(1) 50-degree lens
(1) 40-degree lens
UC IR Wireless Remote
Power Cord
Scissor Yoke

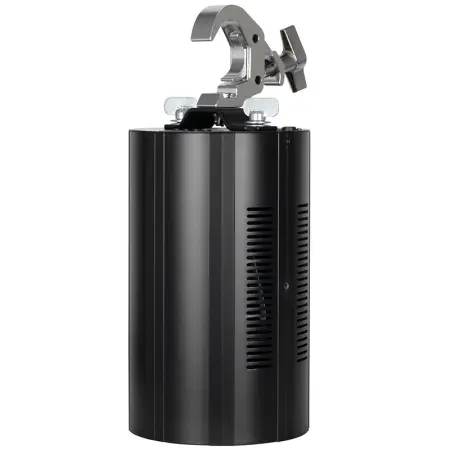

Omega Bracket
ACCESSORIES:
BAR001 - COB Cannon Wash Barn Doors
RATING / APPROVALS:
cETLus (Pending)
