American DJ UBL6H | 6x 20W HEX Linear Wash Bar | R...
$279.99
The American DJ UBL6H is a professional half-meter linear wash fixture with six 20W RGBAL+UV LEDs, high CRI output over 90, and tunable white control from 2,300K to 9,900K. Built for event production, wall washing, and uplighting applications, it delivers precise color mixing in a compact, linkable design.

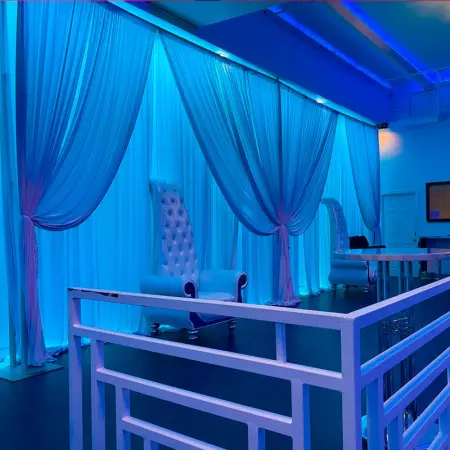

American DJ UBL6H is a professional half-meter LED linear wash fixture designed for event production, wall washing, uplighting, and architectural accent lighting. Its lime-infused HEX LED engine delivers rich RGBAL+UV color mixing, high CRI output, and tunable white light control, making it a strong choice for designers who need both vibrant color and more accurate white light reproduction.

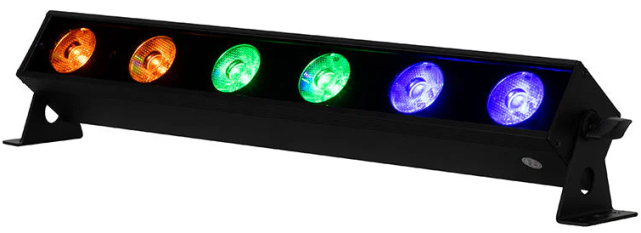

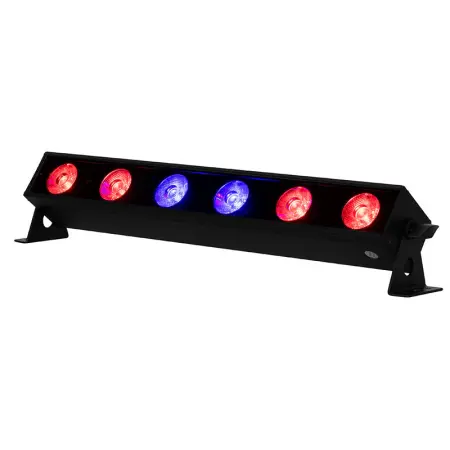

The American DJ UBL6H is built for lighting professionals who want a compact linear fixture that can deliver both saturated color and refined white light. It uses six ultra-bright 20-Watt LEDs with red, green, blue, amber, lime, and UV sources to create smooth color blends for stages, event spaces, ceilings, walls, and floors.

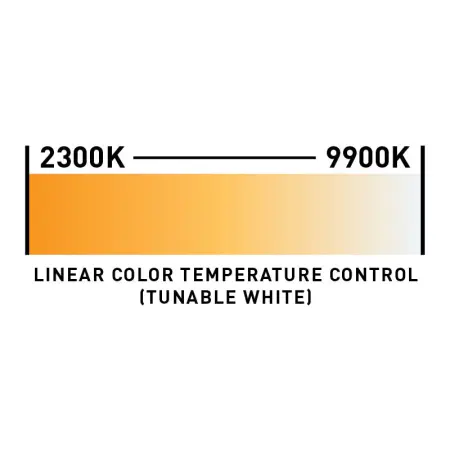

The addition of the lime LED chip helps the fixture achieve a CRI above 90, giving it an advantage in applications where color quality and more natural-looking output matter. With linear color temperature control from 2,300K to 9,900K, the UBL6H can move from warm ambient tones to crisp cool white looks, making it suitable for weddings, corporate events, productions, and installation work.
Control is flexible and production-ready, with seven DMX channel modes, RDM compatibility, onboard OLED display navigation, sound trigger capability, built-in color macros, selectable dim modes, and multiple dim curves. The fixture also supports pixel control in select DMX modes, allowing designers to create more dynamic chases and segmented effects across its 3 groups of 2 RGBAL+UV LED pixels.

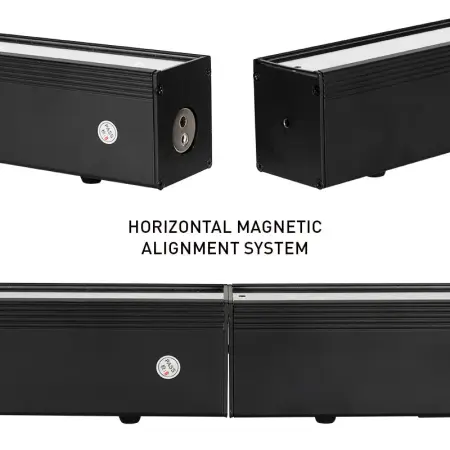

Its compact housing, locking power input/output, and 5-pin XLR DMX connectivity make it easy to deploy in linked systems. Included mounting brackets allow the fixture to be placed on the floor for uplighting or mounted to truss, while the included diffusion filter and optional lens accessories offer added flexibility for shaping output to fit different production environments.
| Beam Angle | 17° degrees |
| Frequency Response | 1.9KHz Hz |
| IP Rating | IP20 |
| Lumen Output | Not specified lumens |
| Power Rating | 6 x 20W LEDs W |
| Voltage Range | AC 100V to 240V, 50/60Hz volts |
| Wattage | 26W W |
| Brand | American DJ |
| Name | American DJ UBL6H | 6x 20W HEX Linear Wash Bar | RGBAL+UV with Tunable White |
| Primary Category | LED Linear Wash Fixture |
| SKU | UBL600 |
| Color Mixing | RGBAL+UV with tunable white from 2,300K to 9,900K |
| CRI | >90 |
| DMX Channel Modes | 6, 11, 13, 16, 18, 25, 28 |
| Control Interfaces | 5-pin XLR DMX input/output, OLED display with 4-button menu, RDM compatible |
| Dimensions | 2.96 x 22.40 x 4.2 in (75 x 568.9 x 106.7 mm) |
| Included Accessories | Indoor locking power cord, UC-IR24 remote, 20° diffusion filter, mounting brackets |
| Weight | 4.41 lb (2 kg) kg |
| Warranty Length | Not specified years |
