Powered Stage Monitor
BassBoss CCM12-MK3 is a compact powered coaxial stage monitor built for professional performers, portable sound systems, and venue installations. Featuring a 1200W bi-amplified Class-D design, integrated DSP processing, and consistent conical coverage, it delivers clear and accurate sound for stage monitoring, front-fill, side-fill, and main speaker applications.
BassBoss CCM12-MK3 Competitive Differences
- Coaxial 12" design for consistent phase response and coverage
- 1200W bi-amplified Class-D power system
- 80° conical coverage with strong feedback resistance
- Compact Baltic birch enclosure with multiple monitor angles
- 96 kHz DSP with eight onboard presets and LAN preset management
BassBoss CCM12-MK3 Description
The BassBoss CCM12-MK3 is designed for performers and engineers who need a compact stage monitor with powerful output and consistent sound coverage. Its coaxial driver configuration places the high-frequency driver in the center of the woofer, helping maintain phase accuracy and intelligibility across the entire listening area.
A 12" neodymium woofer with a 3" voice coil combines with a 3" compression driver in a sealed Baltic birch enclosure to deliver detailed sound with strong transient response. The integrated 1200W Class-D amplifier provides 900W to the low-frequency section and 300W to the high-frequency section for reliable performance in live sound environments.
The MK3 platform adds enhanced DSP processing, expanded preset storage, and network connectivity through etherCON ports. The BassBoss CCM12-MK3 supports multiple monitor angles, pole mounting, and fly-point installation, making it adaptable for stage wedges, DJ monitors, front-fill systems, and compact venue reinforcement.
CCM12-MK3 Features
- Powered 12" coaxial stage monitor
- 1200W bi-amplified Class-D amplifier system
- 900W LF amplifier and 300W HF amplifier
- 50 Hz to 19 kHz frequency response
- 126 dB peak SPL and 123 dB continuous SPL
- 12" neodymium woofer with 3" voice coil
- 3" compression driver with 1.4" throat
- 80° conical coverage pattern
- Coaxial design for consistent off-axis response
- 96 kHz DSP with user, venue, and voicing presets
- Eight onboard pushbutton presets
- Stores up to 100 presets through LAN control
- ControlBASS software compatibility
- 2 etherCON/RJ45 network ports for Ethernet/Milan AVB support
- Neutrik powerCON True1 waterproof power input
- 35 mm pole socket
- M10 fly points for wall or ceiling mounting
- Multiple monitor wedge angles
- Braced Baltic birch enclosure with waterproof finish
CCM12-MK3 Specifications
- Speaker Type: Active Loudspeaker
- Configuration: 2-Way
- Enclosure Type: Sealed
- Total Output Power: 1200W
- Amplifier Class: Class-D
- LF Amplifier Power: 900W
- HF Amplifier Power: 300W
- LF Driver: 1 x 12" woofer
- LF Voice Coil: 3" / 7.6 cm
- LF Magnet: Neodymium
- HF Driver: 1 x 3" horn-loaded compression driver
- HF Throat: 1.4" / 35.6 mm
- HF Magnet: Neodymium
- Frequency Response: 50 Hz - 19 kHz ±3 dB
- Maximum SPL: 123 dB continuous, 126 dB peak
- Coverage Angle: 80° conical
- Audio Input: 1 x XLR 3-pin line input
- Audio Thru: 1 x XLR 3-pin line thru
- Network I/O: 2 x etherCON/RJ45
- AC Power Input: 100 - 240 VAC, 50/60 Hz
- AC Power I/O: 1 x powerCON TRUE1 input
- Current Consumption: 1.4A at 120 VAC, 0.7A at 240 VAC
- Mounting: 1 x 1.38" / 35 mm pole socket
- Construction Material: Plywood, polyurethane, steel
- Color: Black
- Dimensions: 16.5 x 15.8 x 14 in (41.9 x 40.1 x 35.6 cm)
- Weight: 35 lb (15.9 kg)
- Package Weight: 39.345 lb
- Box Dimensions: 19.7 x 19.6 x 16.2 in
What's In The Box
- BassBoss CCM12-MK3 powered stage monitor
- Neutrik powerCON True1 power cable

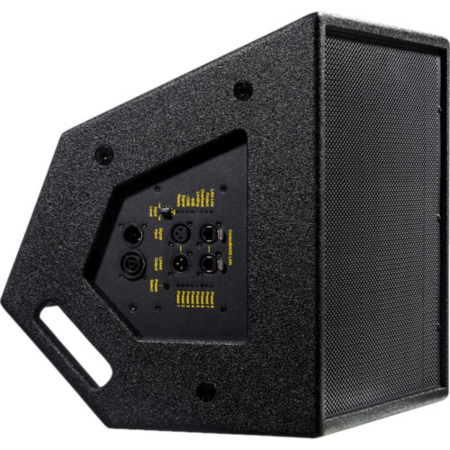

BassBoss CCM12-MK3
(BassBoss CCM12MK3)
