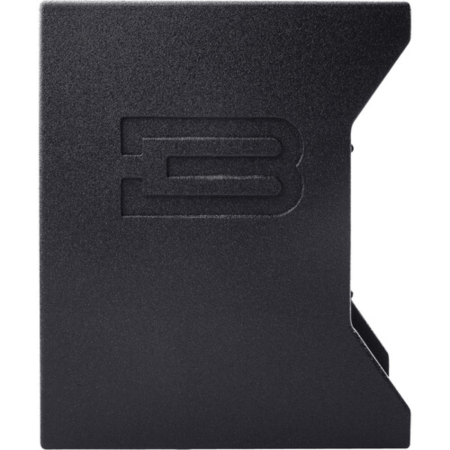

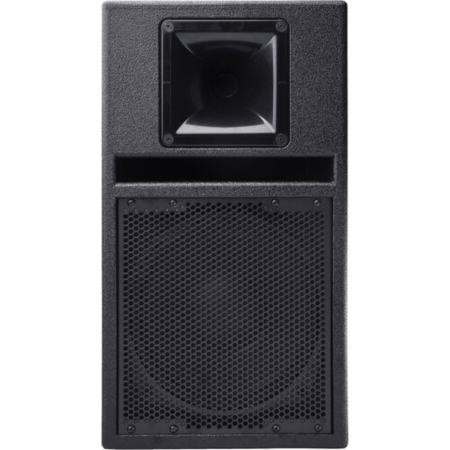

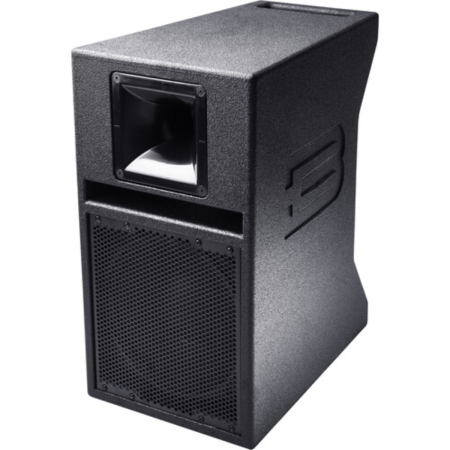

BassBoss SV9 MK3

SV9-MK3 Single 9" Powered Top
Studio monitor sound quality, pro audio output. This baby makes your job easy.

Why the SV9-MK3?

The SV9-MK3 is a two-for-one deal. It provides studio-monitor performance that you can take out of the studio. This lets you do things a studio monitor can't do in terms of output power and portability. It also lets you do things you wouldn't want to do with an ordinary PA speaker, like using them for reference or just listening to music for the pleasure of it.

You can use these for studio monitors and trust what you hear. Have you ever wanted a set of studio monitors that are extremely accurate as well as dynamic? The SV9-MK3 can do that. Have you ever wanted just a little bit more volume out of your studio monitors? How about a lot more? The SV9-MK3s can do that. When you want to show off a track to a friend, or a whole bunch of friends, you want them to hear it with the same quality that you experience in the studio. The SV9-MK3s can do that.

Have you ever wished you could find a small speaker that's easy to carry and gets loud enough to do gigs? The SV9-MK3 can do that. Have you ever wished you could get more SPL out of a top box when you add a sub? The SV9-MK3 can do that.

Ideal for smaller parties and events, the SV9-MK3 provides surprising output for its size and weight, making it the perfect option when you don't want to lug a large, heavy system. The SV9-MK3 can do a lot of different things, and, whether you use all their capabilities or not, it's nice to know you can.

If you need something that can put out more SPL, the next thing to look at is the DiaMon-MK3.



SPECS:
Loudspeaker Description
2-way active, Single 9" Self Powered, Vented, Direct-radiating Full-range

Frequency Response (±3 dB)
50 – 19,000Hz

Maximum Sustained Output
118dB
Max SPL (Peak)*
121 dB

Nominal Dispersion (H° x V°)
90 x 60 (Rotatable)

Amplification
1200 Watts Class D

Processing
Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

Electrical Connector Amp
Neutrik powerCON True 1 TOP IP65 rated waterproof connectors

Electrical Connector Mains
Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)

Voltage Operating Range
100-240V AC, 50-60Hz

Current Draw 120V
2 Amps (Nominal)

Current Draw 240V
1 Amp (Nominal)

Signal Input Connector
XLR-F
Signal Output Connector
XLR-M (direct pass-through only)

Enclosure Type
2-way full-range/mid-high. Direct radiating vented LF section, horn-loaded HF section

Transducer Low Frequency
1 x 9 in. diameter (220mm) neodymium motor woofer with 2.5 in. (64mm) copper winding voice coil and carbon-fiber cone

Transducer High Frequency
1.5 in. (38mm) diaphragm compression driver on 1 in. (25mm) throat 90 x 60 degree constant directivity horn

Cabinet Construction
CNC machined 15mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket

Exterior Finish
High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black

Grille
Perforated, powder-coated steel

Dimensions (HxWxD)
18in. (45.7cm) x 10 in. (25.4cm) front, 7 in. (18cm) rear, x 15 in. (38cm)

Net Weight
26 lbs

Shipping Weight
31 lbs

What's Included
Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card

Optional Covers
Heavy-duty padded nylon transport cover

True Specifications
Our forward-thinking approach means that we never rest on our laurels. As we continue to innovate and refine our technology, our specifications will evolve. We're committed to constantly pushing the boundaries and raising the bar.
‍
*Peak output is calculated using “industry standard” techniques. These calculation methods create theoretical specifications that are inflated over what can actually be achieved. BASSBOSS real world output specifications are provided as “Maximum Sustained Output” ratings, which reflect actual measured, continuous output levels.


STUDIO QUALITY
Do you produce your own tracks? Do you DJ in your bedroom, spare bedroom, living room, converted garage? Do you lose yourself in the music for hours? Do you do gigs for select audiences? Would you rather have great sound than great big speakers?

LET ME HEAR YOU
Because everyone, everywhere, should have access to studio-monitor sound quality And because everyone, everywhere wants to turn their monitors up to show off what they've got.

LOAD IN BLISS
We had a woofer custom-made with a carbon-fiber cone, rubber surround and a big voice coil. We designed a special, rock-solid wooden cabinet around it. We put top-of-the-line processing and amplification in it and tuned it for reference-grade response.

PREMIUM EVERYTHING
It's either a reference monitor you can take on the road or an ultra-compact production speaker that you can use as a reference monitor. Either way, it's a pleasure to listen to, hour after hour, and a pleasure to carry when you have to move the music.

MK3 Amp Update
There are all-new amplifiers in the MK3 series. Total power has increased, however power allocated to woofers increased substantially. The higher output voltages provide more impact. Universal input voltage compatibility of 90-250V provides more flexibility. Waterproof connections provide more peace-of-mind.

MK3 Enhanced DSP
The MK3 features an all-new 96kHz DSP. The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN. The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.

ControlBASS Software
ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups. The latest in DSP programming developments can be added via easy remote updating.
