The INGENIA IG1 T is equipped with 2x6.5"premium low frequency transducers and 1 1"compression driver.
All models of the series are designed to work individually, but they can also be coupled by simply turning one speaker upside down and placing it upon the other one.
Thanks to infrared technology, INGENIA detects the presence of a second speaker, and an onboard-configuration wizard automatically sets up the system in order to ensure the best coverage and acoustic coherence.
INGENIA’s horn design is horizontally symmetric and vertically asymmetric: this way, horizontal dispersion is wide and constant while vertical dispersion is narrow in the upper part and wider in the lower part. Thanks to such feature, when 2 Ingenias are coupled high frequencies add up avoiding any interferences. In addition to that, a sophisticated digital steering function process each way of the speaker in order to adjust the dispersion without moving the box. As a result, the whole audience enjoys a perfect intelligibility.
Users can easily control the system through an intuitive OLED display. In fact, behind the simple interface runs a cutting-edge processing which manages mix, coverage steering, EQs levels and input devices.
INGENIA can be easily and safely coupled through a LP-IG accessory which fits all the 4 INGENIA models. Moreover, feet and recessions on the top and the bottom of the enclosure ensure the speakers to be perfectly aligned, avoiding any incorrect setup operation.
Ingenia DRK-IG flybar adapts to all the speakers of the series allowing to fly coupled speakers in a vertical array.
SPECIFICATIONS:
Technical Data
Speaker Type2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]85 - 20.000 Hz
Frequency Response [-6dB]92 - 19.200 Hz
Max SPL128 dB
HF1"
HF Voice Coil1.4"
Directivity (HxV)100 x 80° (+15°/- 65°)
HF TypeNeodymium compression driver
HornVertical asymmetric
Crossover Frequency2100 Hz
LF2x6.5”
LF Voice Coil1.5"
LF TypeNeodymium
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass-D
Peak Power800 W
RMS Power400 W
User InterfaceOLED display + rotative knob w/switch
Self-rotating displayYes
PositioningEPD (Element Position Detection)
Display MirroringYes
Processor
ControllerDSP 56 bit
AD/DA Converter24bit/48kHz
System PresetsFactory presets + User defined
LimiterDual Active Peak, RMS, Thermal
DSP ProcessingFIR Linear Phase
Input
Signal Input1 x Combo IN (XLR + Jack 6.3mm)
Signal Out1 x XLR link OUT
USB connectorYes - mini USB
Mechanics
HousingPolypropylene PP reinforced
GrilleFULL /Invisible screws
FlyableYes
Handles1x on top / 1x on bottom
Pole MountYes
Width195 mm (7.68 in)
Height536 mm (21.10 in)
Depth271 mm (10.67 in)
Weight10.6Kg (23.37 lbs.)

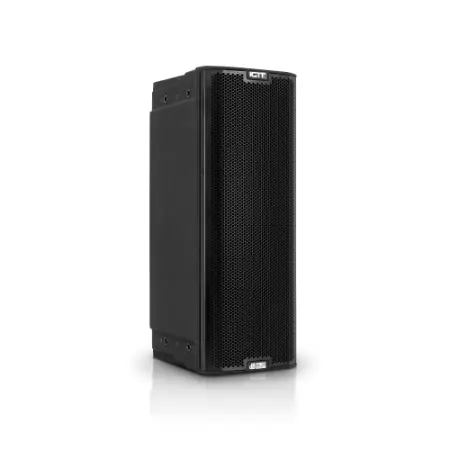

db Technologies IG1T
(dB Tech Ingenia IG1T)
