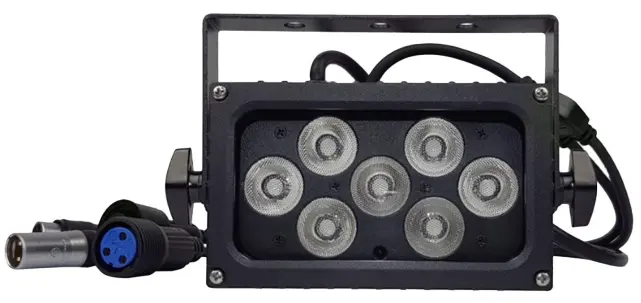

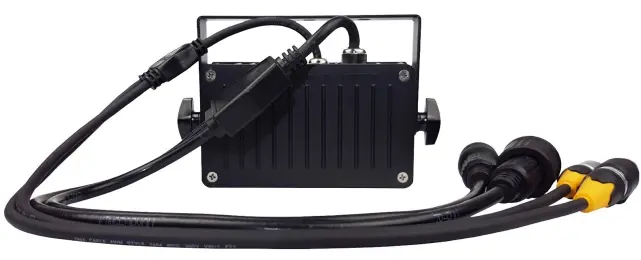

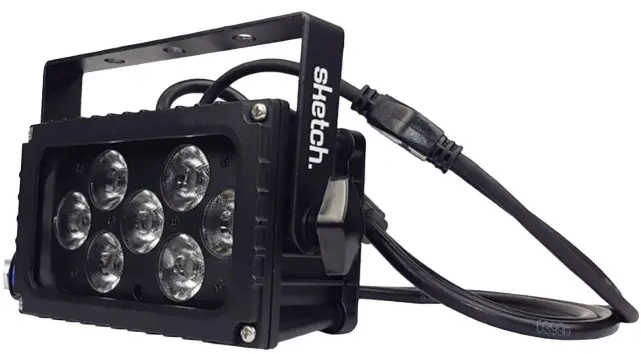

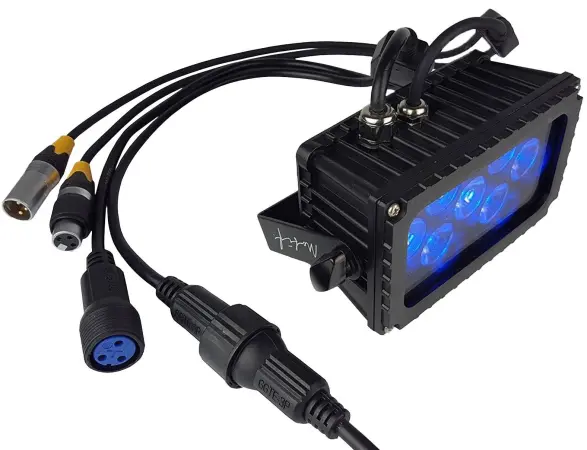

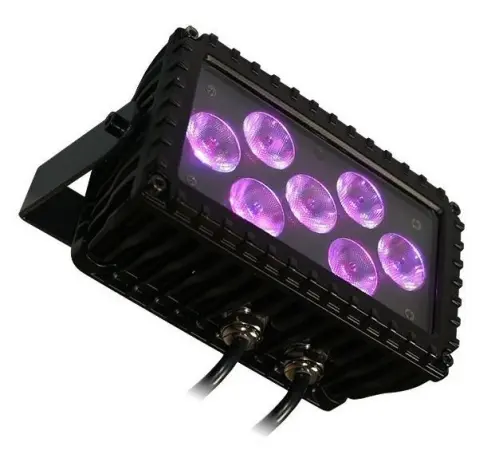

Blizzard Lighting Motif Sketch (Blizzard Sketch)
Meet sketch
Sketch grew up always knowing he was somehow just a little different from all
the rest of the lights.
While everyone else was hanging out with those loud, brash musicians, Sketch
found himself more of a wallflower. He’s a little fella sure, but he’s got
plenty where it counts.
For starters, he’s got a thick skin - IP65 to be exact. And he’s always in
control thanks to his infrared remote (included). And even though he’s
small in stature, he makes up for it by being an extra bright little guy, mainly
thanks to his seven three-watt tri-color LEDs with custom-designed lenses.
In short, our little sketch has been a bit of an inspiration to us all.
We’d love to see sketch light up your life the way he has ours, whether that’s
in or on your home, office, shop, or... wherever. Sketch is our first fixture
designed specifically to beautify the many spaces of our lives off the stage.
Make him feel welcome!
• Exceptional RGB color mixing from 7x 3-watt TRI-color LEDs
• Fully controllable via IR remote control (included)
• Advanced heat sink design for zero fan noise
• Secure mounting bracket
• Multiple built-in color presets and auto programs
• User adjustable program speed & fade times
• 0-100% variable electronic dimmer
• Variable electronic strobe
• Durable cast aluminum housing
• Tempered glass lens and watertight internal gaskets
Power
• Operating Voltage: 100-260VAC, 50-60 Hertz
• Fuse: 2A 250V
• Power Consumption: 23W
Light Source
• LED 7x 3-watt TRI-color LEDs, 100,000 hours.
Optical
• Beam Angle: 25 degrees
Thermal
• Max. Operating Temp.:104 degrees F (40 degrees C) ambient
Control
• Protocol: USITT DMX-512
• DMX Channels: 3-channel
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
Operating Modes:
• Standalone or Master/Slave
Weight & Dimensions
• Length: 6.29 inches (16 cm)
• Width: 2.78 inches (7.5 cm)
• Height: 3.54 inches (9 cm)
• Weight: 2.87 lbs (1.3 kg)
Warranty:
• 2-year limited warranty, does not cover malfunction caused by damage to LED’s.
