Blizzard Lighting Tough Par Fab 5
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

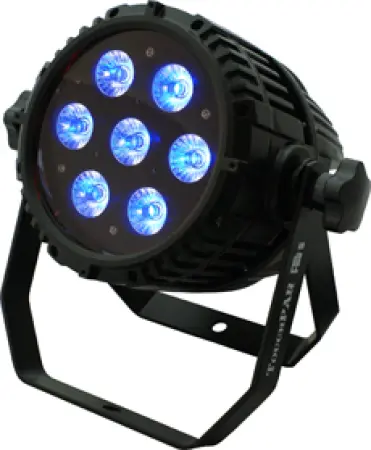

Blizzard Lighting ToughPar Fab 5 (Blizzard Tough Par Fab 5)
P65 rated for outdoor use, the ToughPARâ„¢ Fab5â„¢ is built from durable cast aluminum with a tempered glass lens and watertight internal gaskets. Under the hood, 7x 15-watt LED's bring beauty and light to all sorts of settings, from building exteriors to rock concerts! Plus, our industry-first 32-bit user-selectable dimming curves brings new subtlety and nuance to LED dimming, and ultra-high frequency PWM switching means the ToughPAR Fab5â„¢ is video safe at any resolution and frame rate.
In DMX mode, you can control the ToughPar Fab5â„¢ with either 3/4/5/6/7 or 12 DMX channels. You'll have full control of many features such as RGBAW color mixing, strobe, ultra smooth flicker-free 32-bit dimming, 10 auto run modes, or even 10 user-defined programs of up to 30 steps. The 4-button LED control panel also allows total control over the fixture including master/slave settings, 11 separate customizable RGBW based white balance settings, upload feature and more.
It's the perfect fixture for any outdoor use, and you won't have to sell your indoor space to buy one!
And of course, the ToughPar Fab5â„¢ is also backed by Blizzard's 2-year warranty.
Features:
• Light Source: 7* 15-watt, 5-in-1 RGBAW 5-in-1 LED’s
• User selectable DMX personality modes
• Fixture ID address assignment and operation
• Built-in automated programs via master/slave
• User defined programs/scenes and upload feature
• Fixture temperature display and protection settings
• Preset or user adjustable white balance settings
• Menu key protection settings
• Easy to use LED digital control panel
• 3-pin male input and 3-pin female output
• Totally silent convection cooling
• IP Rated AC power cord with cable cap
• IP Rated DMX in/out cables
Additional Features
• 4-Button LED control panel for easy programming
• Dual bracket for flexibility in mounting
• Flicker-free constant-current LED driver
• Running hours display
• Two-piece mounting yoke allows flexibility in positioning
• Tough-As-Nails IP65-rated enclosure
Specifications:
Optical
• Light source: 7* 15-watt, 5-in-1 RGBWA 5-in-1 LED’s
• Photometrics: 12,420 Lux @ 1m, 3,520 Lux @ 2m (full on)
• Beam Angle: 25°, Field Angle: 29°
• Flicker-free constant-current LED driver
Power and Current
• AC power: 90-240VAC, 50/60 Hz
• 85W, 1.1A (.1A inrush)
• Power factor: 0.65
Weight & Dimensions
• Weight: 11lbs/ 5kg
• Size: 10 x 11 x 7.5 in / 254x 278 x 190 mm
Thermal
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control
• Protocol: USITT DMX-512
• DMX Channels: 3/4/5/6/7/ 12-Channels
• Input: 3-pin XLR Male
• Input: 3-pin XLR Female
• Modes: Standalone, Master/Slave, Color Preset
This is a solid color wash LED instrument. Heavy construction. Excellent RGBAW color mixing. Awesome dimmer curves; by default it seems to have a nice fade out like an incandescent fixture. Waterproof. Best of all: dead silent. No fans. I have some of the noisy Puck Fab5s as well. This Tough Par Fab 5 is great for quiet musical acts and theatrical use. I'll never allow a fan above the stage again unless it is a super loud music performance.<br /> <br /> There was confusion about the connectors. Neither KPODJ opt Blizzard document it well. The fixture comes with waterproof connector pigtails instead of sockets for both power and DMX. These connectors screw together with o-rings for a water tight seal. Pigtail cables are about 18-24" long. DMX has smaller watertight connectors than the power connectors. Each light also includes an Edison adapter cable with an Edison male plug on one end and watertight connector on the other. This adds 3-4' to the power cable length. Each light also includes two DMX adapter cables to convert from 3-pin DMX (male and female) to the appropriate watertight connection. If you use both of these, you can extend the spacing between lights to 6 to 8 feet. You lose the watertight feature with regular 3-pin DMX but that's usually OK. Blizzard sells watertight extension DMX cables as well.<br /> <br /> I love these lights and will buy more. Same brightness as the Puck Fab5 but absolutely silent, waterproof, and built tough as a tank.
