RGB LED Strip Light with Pixel Mapping
The

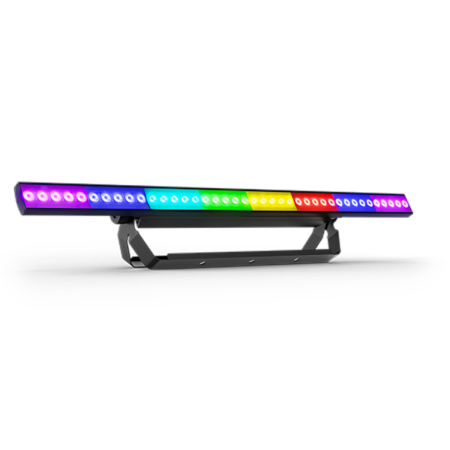

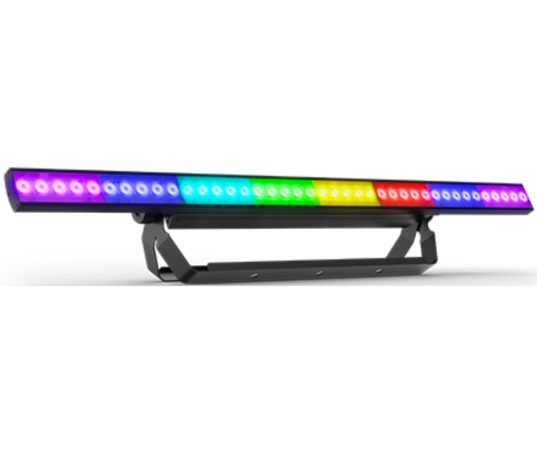

Chauvet DJ COLORstrip Pix ILS is a versatile LED strip light that functions as a pixel-mapping effect, dynamic uplight, or eye-catching runway fixture. Designed for DJs, production companies, and event professionals, this fixture features 40 individually controlled tri-color LEDs and supports ILS integration and wireless DMX via D-Fi USB (sold separately).
Chauvet DJ COLORstrip Pix ILS Competitive Differences
- Pixel-mappable with 40 tri-color LEDs for animated visual effects
- ILS and D-Fi USB compatibility for wireless, synchronized light shows
Chauvet DJ COLORstrip Pix ILS Description
The
Chauvet DJ COLORstrip Pix ILS delivers vivid RGB lighting with advanced pixel control in a slim, low-profile strip design. Each of its 40 tri-color LEDs is individually controllable, allowing for dazzling animations, chases, and video-like effects. Whether you're lighting a stage, creating uplight ambiance, or adding visual flair to a dance floor or runway, this strip offers unmatched flexibility and performance.
This fixture is fully compatible with Chauvet’s Integrated Lighting System (ILS), making it easy to synchronize with other ILS-enabled fixtures for cohesive, immersive shows. D-Fi USB support (dongle sold separately) allows for wireless Master/Slave or DMX operation, while silent operation makes it ideal for theaters and sound-sensitive venues.
Multiple DMX modes (up to 122 channels) provide full customization potential, or you can go cable-free with the optional IRC-6 remote for simple color and effect control.
Model Features
- Full-size RGB strip light with pixel mapping
- 40 individually controlled tri-color LEDs (RGB)
- ILS compatibility for easy show integration
- D-Fi USB ready for wireless DMX/Master-Slave control
- Create runway chases by linking multiple units
- Silent, fan-free operation for quiet environments
- Supports IRC-6 remote for wireless, non-DMX use
- Fits in optional CHS-60 VIP gear bag
Model Specifications
- DMX Channels: 3, 8, 120, 122
- DMX Connectors: 3-pin XLR
- Light Source: 40 tri-color LEDs (2W each, 50,000-hour life)
- Beam Angle: 14°
- Field Angle: 24°
- Illuminance: 4,967 lux @ 2 m
- Lumens: 1,491
- Strobe Rate: 0 to 20 Hz
- Power Linking: 7 units @ 120V, 10 units @ 230V
- Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 79W, 1.2A @ 120V | 77W, 0.8A @ 230V
- Dimensions: 38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
- Weight: 6.2 lb (2.8 kg)
- Cable Length: 5 ft (1.52 m)
- Bracket Mounting Hole: 13 mm
- Certifications: CE, RoHS
What's In The Box
- COLORstrip Pix ILS fixture
- Power cord
- Quick reference guide
Chauvet COLORSTRIPPIXILS
(Chauvet DJ COLORSTRIP PIX ILS)
