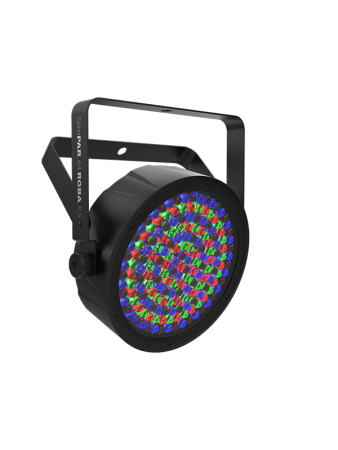

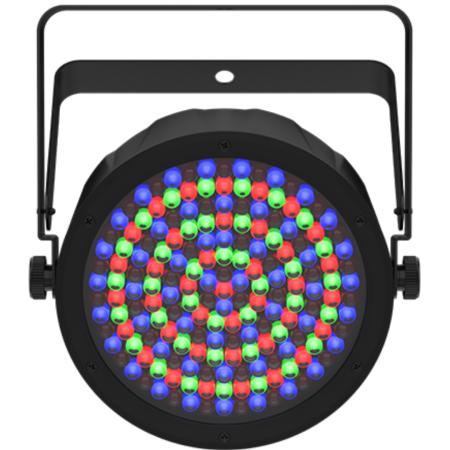

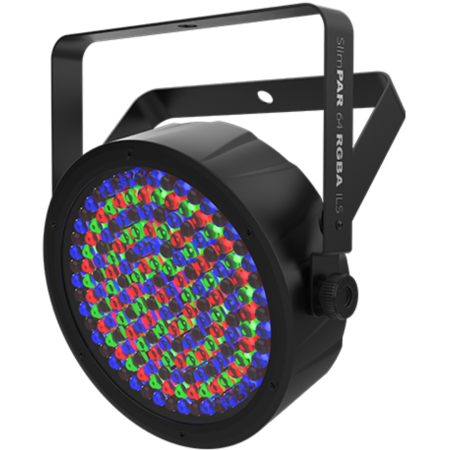

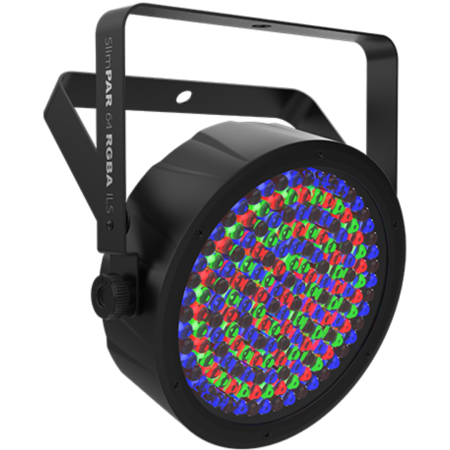

SlimPar 64 RGBA ILS is a compact wash light with 180quad-color (Red, Green, Blue, and Amber) LEDs. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures thanks to punchy amber LEDs. Its multiple user-configurable settings and power linking capabilities make this fixture ideal for a range of wash lighting needs.
FEATURES:
LED Par designed for any application in need of a compact quad-color wash light
ILS compatibility for use in the ILS ecosystem
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
Convenient access to RGBA color mixing and static colors with or without DMX
Increase standalone versatility with multiple user-configurable settings
Save time running cables and extension cords by power linking multiple units
Fits best in the CHS-30 VIP gear bag
SPECIFICATIONS:
DMX Channels:DMX Channels: 4 or 8
DMX Connectors:DMX Connectors: 3-pin XLR
Max Unobstructed Distance:Light Source: 180 LEDs (39 red, 39 green, 51 blue, 51 amber) 0.25 W (20 mA), 50,000 hours life expectancy.
Light Source:180 LEDs (39 red, 39 green, 51 blue, 51 amber) 0.25 W (20 mA), 50,000 hours life expectancy.Strobe Rate:0 to 20 Hz
Beam Angle:15°Field Angle:24°
Illuminance:872 lux @ 2 m
Power Linking:33 units @ 120 V; 57 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:17 W, 0.2 A @ 120 V, 60 Hz
Weight:2.2 lbs. (1 kg)
Size:9.7 x 11.1 x 2.5 in (246 x 282 x 64 mm)
Approvals:CE, RoHS, MET
Power and Current: 17 W, 0.2 A @ 120 V, 60 Hz
Power and Current: 17 W, 0.1 A @ 230 V, 50 Hz
Bracket Mounting Hole: 13 mm
Optional Controllers: ILS Command
WHAT'S INCLUDED
SlimPAR 64 RGBA ILS
Power cord
Quick Reference Guide
