Chauvet DJ LED Splash 86B
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

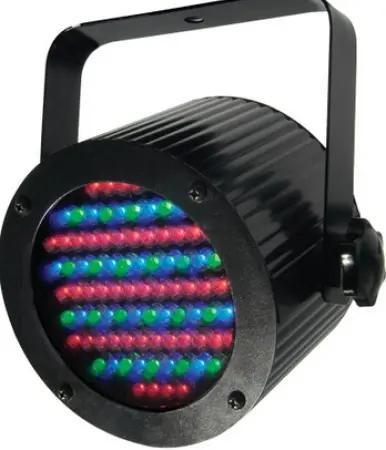

Chauvet LEDsplash 86B (Chauvet LED-Splash 86 B)
The compact and lightweight Chauvet LEDsplash 86B is a red, green and blue LED wash fixture with 3 or 7 channels of DMX control. This compact, lightweight fixture is powered by 86 RGB LEDs. It features static colors and color mixing, built-in automated and sound-activated programs with or without DMX.
3 or 7-channel DMX-512 LED wash
Operating modes:
3-channel: RGB control
7-channel: RGB, macros, run/strobe speed, automatic/sound, dimmer
Static colors and RGB color mixing with or without DMX controller
Built-in automated programs via master/slave or DMX with variable speed
Built-in sound activated programs via master/slave or DMX
Pulse effect with adjustable speed
Additional power output: max 37 units @ 120V (see manual for details)
Beam angle: 19°
Field angle: 36°
Lux: 530 @ 1m
Light Source: 86 (44 red, 21 green, 21 blue) LEDs
Power and current: 120V, 60Hz: 9W, 0.2A operating, 0.2A inrush
Power and current: 230V, 50Hz: 5W, 0.1A operating, 0.1A inrush
AC power: Autoswitching 100V-240V 50/60Hz
Weight: 1.8lbs (0.8kg)
Size: 4.9in x 6in x 6.2in / 124mm x 153mm x 157mm
