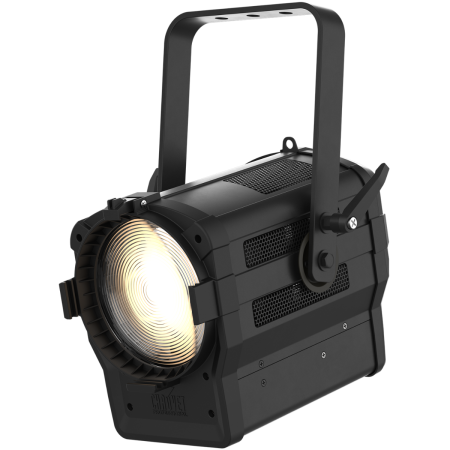

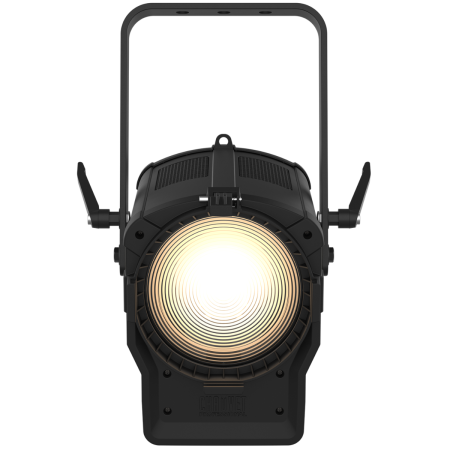

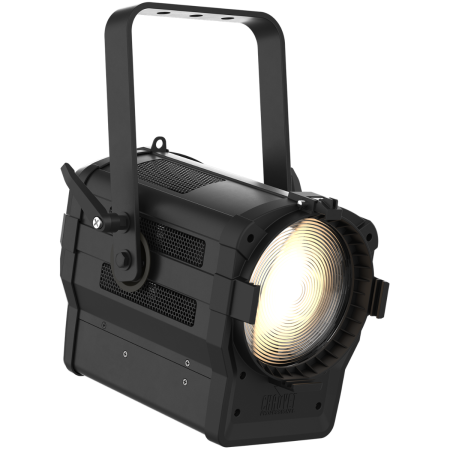

Chauvet Pro Ovation F-145WW

Warm White LED Fresnel

The CHAUVET Professional Ovation F-145WW is a compact warm white LED Fresnel designed to deliver a soft, even field of high-quality light for theater, studio, broadcast, and production applications. Its 70W LED produces output comparable to a traditional 650W incandescent Fresnel while providing a high CRI of 97, smooth 16-bit dimming, and a versatile motorized zoom system.

CHAUVET Professional Ovation F-145WW Competitive Differences

• 70W warm white LED provides output comparable to a traditional 650W incandescent Fresnel
• High CRI of 97 delivers accurate color reproduction for performers, scenery, and on-camera applications
• Motorized 16° to 65° zoom range provides flexible control from narrow illumination to wide washes
• 16-bit dimming with four selectable dimming modes provides smooth, precise fades
• Selectable PWM frequencies up to 25 kHz help minimize visible flicker in camera applications
• Virtually silent operation makes the fixture ideal for theaters, studios, and other noise-sensitive environments
• DMX and RDM support provides flexible professional control and remote fixture management
• Power linking supports up to 18 fixtures at 120V and 35 fixtures at 230V

CHAUVET Professional Ovation F-145WW Description

The CHAUVET Professional Ovation F-145WW delivers the familiar soft-edged light of a traditional Fresnel while providing the efficiency, long life, and controllability of LED technology. Its 70W warm white LED produces a 3096 K color temperature and CRI of 97, making it particularly well suited for theatrical lighting, television studios, houses of worship, performance spaces, and other applications where natural skin tones and accurate color rendering are important.

A motorized zoom system gives lighting designers extensive control over coverage without requiring manual lens adjustment. The fixture offers a beam angle range of 16° to 48°, a field angle range of 25° to 65°, and an overall zoom range of 16° to 65°. Zoom can be adjusted directly from the fixture or remotely through DMX.

Electronic 16-bit dimming and four selectable dimming modes provide smooth fades suitable for professional theatrical programming. An electronic shutter supports strobe rates from 0 to 30 Hz, while selectable PWM frequencies ranging from 600 Hz to 25 kHz allow the fixture to be optimized for video and broadcast environments.

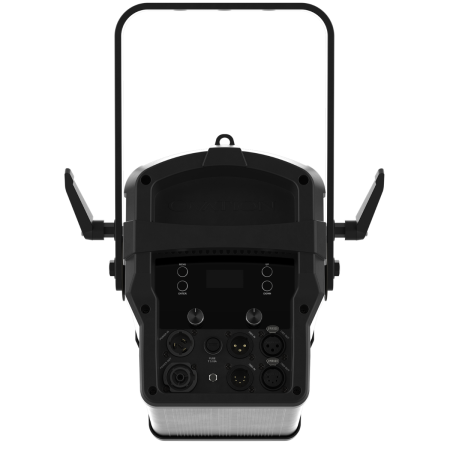

The Ovation F-145WW is housed in durable aluminum alloy and aluminum die-cast construction and is engineered for virtually silent operation. It supports DMX and RDM protocols through both 3-pin and 5-pin XLR connections, while Seetronic Powerkon IP65 input and output connectors provide convenient power linking for multi-fixture installations.

Ovation F-145WW Features

• Warm white LED Fresnel fixture
• 70W warm white LED light source
• Output comparable to a traditional 650W incandescent Fresnel
• CRI of 97
• 3096 K color temperature
• Motorized zoom
• 16° to 65° zoom range
• 16-bit electronic dimming
• Four selectable dimming modes
• Electronic shutter and strobe
• 0 to 30 Hz strobe rate
• Selectable PWM frequencies up to 25 kHz
• DMX and RDM control
• Four DMX personalities
• 3-pin and 5-pin XLR data connections
• Virtually silent operation
• Power input and output for fixture linking
• 6.25-inch accessory holder and gel frame size
• Designed for theater, television, studio, and production applications

Ovation F-145WW Specifications

• Fixture Type: Warm white LED Fresnel
• Light Source: 1 x 70W warm white LED
• LED Life Expectancy: 50,000 hours
• Color Temperature: 3096 K
• CRI: 97
• Beam Angle: 16° to 48°
• Field Angle: 25° to 65°
• Zoom Range: 16° to 65°
• Output at 25°: 2,787 lumens
• Output at 65°: 4,266 lumens
• Illuminance at 25°: 1,290 lux at 5 m
• Illuminance at 65°: 252 lux at 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• Dimmer: Electronic
• Dim Modes: 4
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Zoom: Motorized
• Control Protocols: DMX, RDM
• DMX Personalities: 4
• DMX Channels: 1, 2, 2, or 5
• Data Connectors: 3-pin and 5-pin XLR
• Input Voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging
• Power Consumption: 75W at 120V; 73W at 208V; 73W at 230V
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Power Linking: 18 units at 120V; 32 units at 208V; 35 units at 230V
• Power Cable Length: 5 ft (1.5 m)
• Housing Material: Aluminum alloy and aluminum die-cast
• Exterior Color: Black
• Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
• IP Rating: IP20, dry location
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)
• Dimensions: 11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
• Weight: 11 lb (5 kg)
• UPC: 781462226961

What's In The Box

• Ovation F-145WW fixture
• Seetronic Powerkon IP65 power cord
• Gel frame
