ColorKey Halo Par HEX 18P

LED Wash Par

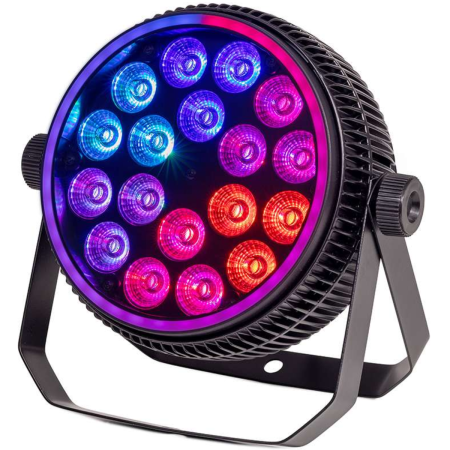

ColorKey Halo Par HEX 18P is a full-spectrum RGBWA+UV LED wash par designed for vibrant stage washes, UV-driven looks, and dynamic pixel-mapped effects. With 18 high-output LEDs, 6 independently controllable wash zones, and a 34-zone RGB halo ring, it gives DJs, venues, bars, restaurants, and installers a flexible lighting fixture that goes far beyond a traditional color wash.

ColorKey Halo Par HEX 18P Competitive Differences

• 18x10W RGBWA+UV LEDs provide full-spectrum color mixing with dedicated UV output
• 6 independently addressable wash zones allow chases, waves, and segmented color effects

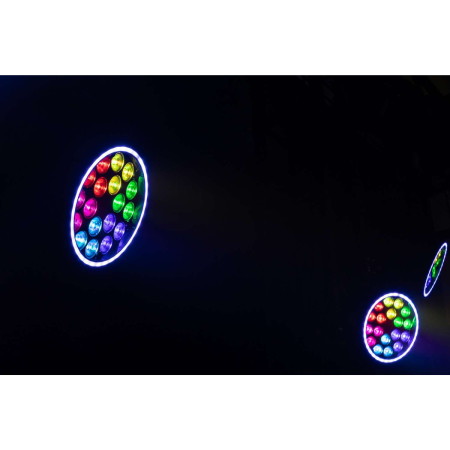

• 34-zone RGB halo ring adds a separate visual layer for pixel effects and animated looks
• UHX™ compatibility delivers consistent halo control, effects, and visual identity across compatible fixtures
• All-metal housing is built for mobile DJs, rentals, touring, and permanent installs
• 9, 20, and 138-channel DMX modes support everything from simple operation to detailed pixel-level programming

ColorKey Halo Par HEX 18P Description

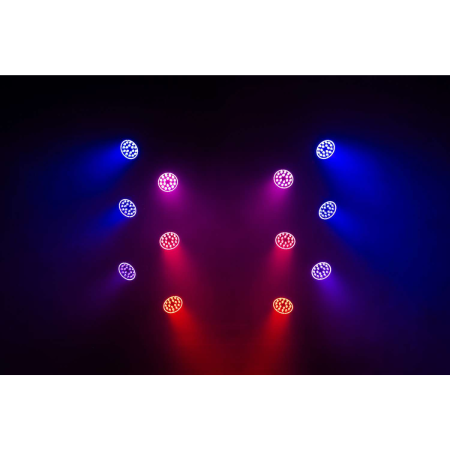

The ColorKey Halo Par HEX 18P is built for users who need bold color output, flexible control, and a more visually engaging par fixture. Its 18x10W RGBWA+UV LEDs produce saturated washes, warm and cool tones, and crisp UV looks for stages, dance floors, bars, restaurants, and event spaces.

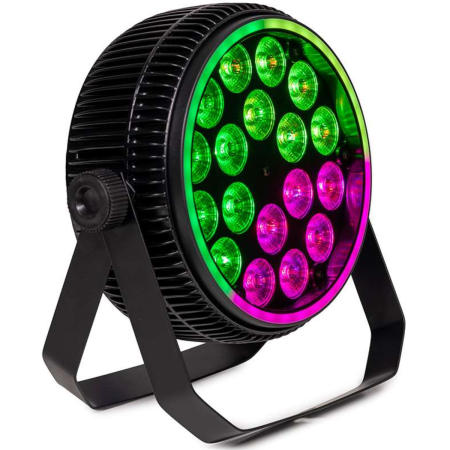

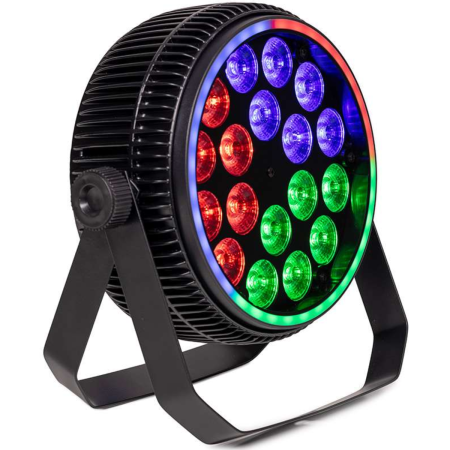

Unlike standard wash pars, the Halo Par HEX 18P groups its main LEDs into 6 independently controllable zones. This allows programmers to create moving color patterns, waves, chases, and segmented effects across the face of the fixture instead of relying on static color changes alone.

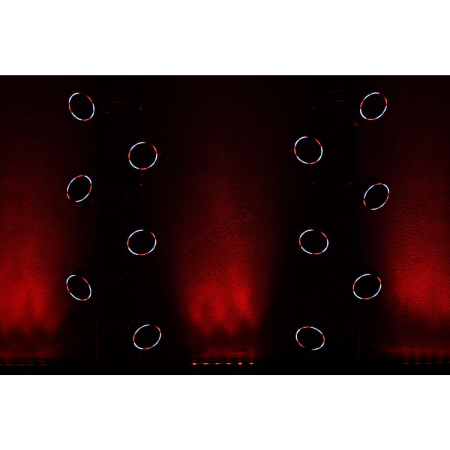

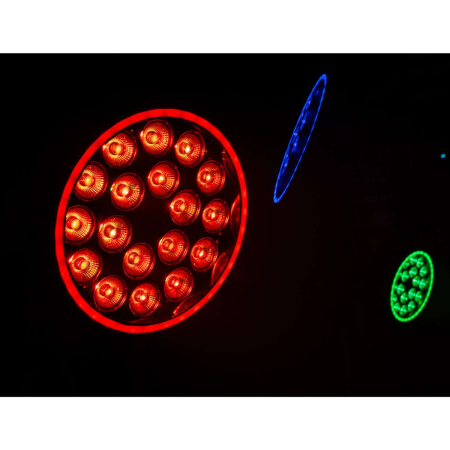

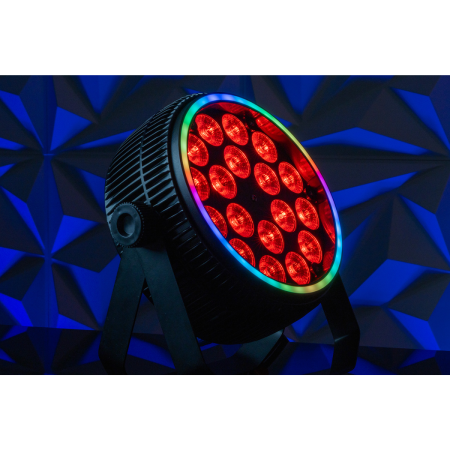

The 34-zone RGB halo ring adds another layer of visual impact with pre-programmed chases, patterns, and color mixing. As part of ColorKey’s UHX™ fixture family, the halo is designed for consistent control and visual identity with other compatible UHX™ fixtures.

With DMX512, RDM, Auto programs, Sound Active, and Master/Slave operation, the ColorKey Halo Par HEX 18P works for both hands-on lighting designers and users who need quick setup. Its rugged all-metal housing makes it suitable for mobile DJ rigs, rental inventory, touring systems, and permanent installations.

Halo Par HEX 18P Features

• 18 x 10W RGBWA+UV LEDs for full-spectrum color mixing
• 6-zone pixel control for segmented wash effects
• 34-zone RGB LED halo ring for animated visual effects
• UHX™ fixture design for consistent halo control with compatible ColorKey fixtures
• Pre-programmed chases, patterns, and color mixing
• DMX512 and RDM control support
• Auto, Sound Active, and Master/Slave operating modes
• 9, 20, and 138-channel DMX modes
• 2500K to 8000K color temperature control

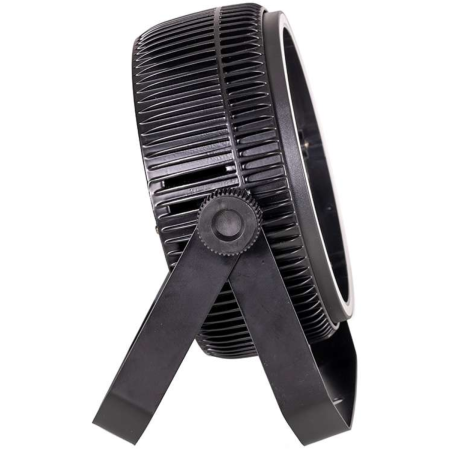

• All-metal housing for durable touring, rental, and install use

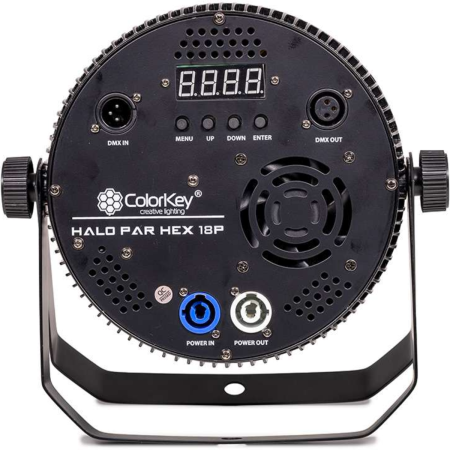

• PowerCON power input and output
• 3-pin DMX input and output

Halo Par HEX 18P Specifications

• Light Source: 18 x 10W RGBWA+UV LEDs
• Wash Zones: 6
• Halo Ring: 34-zone RGB LED halo
• Beam Angle: 25°
• Field Angle: 45°
• Illuminance: 3590 lux @ 2m
• Color Temperature: 2500K to 8000K
• Control Protocols: DMX512, RDM, Auto, Sound Active
• DMX Channel Modes: 9 / 20 / 138
• Power I/O: PowerCON in/out
• DMX I/O: 3-pin in/out
• Voltage: AC90-240V, 50/60Hz
• Max Power Consumption: 120W
• Dimensions: 10.24 x 8.27 x 3.54 in (260 x 210 x 90 mm)
• Weight: 5 lb (2.3 kg)

Colorkey CKU-5073 (Color Key Halo Par Hex 18P)
