DMX512 Signal Splitter
Crisp DMX SPLITTER is a professional-grade DMX distribution unit designed to deliver reliable, noise-free signal routing for lighting systems. Featuring 8 optically isolated outputs, signal amplification, and full ground loop protection, it ensures stable performance across large and complex lighting rigs.
Crisp DMX SPLITTER Competitive Differences
- 8 Optically Isolated Outputs with Ground Loop Protection
- Built-In Signal Amplification and Rackmount Design
Crisp DMX SPLITTER Description
The

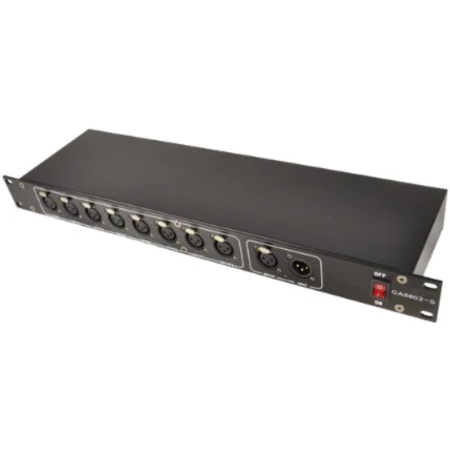

Crisp DMX SPLITTER is an essential tool for any lighting professional managing a multi-fixture DMX setup. It enables a star-configuration layout with 8 (or 4) fully isolated outputs, allowing secure and reliable distribution of DMX512 signals to dimmers, moving heads, color changers, and other devices.
Each output is optically isolated, preventing signal noise, interference, and dangerous ground loops—especially critical in large venues and mobile rigs. Built-in signal regeneration ensures that even weak or long-distance DMX inputs are reshaped and boosted for consistent data integrity across all connected fixtures.

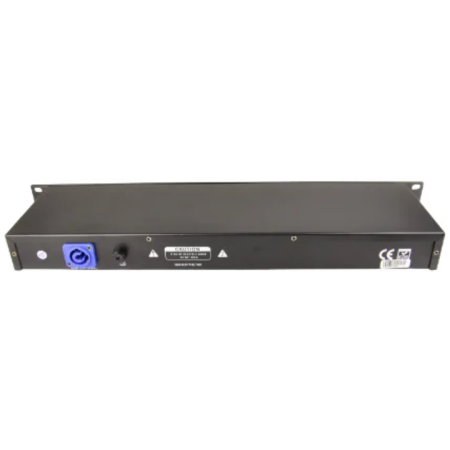

With a wide power input range (AC 90–240V, 50/60Hz), the unit is globally compatible and ready for use in any touring or installed lighting environment. Housed in a compact 1U 19″ rackmount chassis, it integrates easily into standard rack systems, offering a space-saving, durable solution for control rooms, production racks, and front-of-house setups.
Model Features
- 8 Optically Isolated DMX Outputs (Also Available in 4-Output Configuration)
- Amplifies and Regenerates Incoming DMX512 Signal
- Ground Loop Protection for Stable, Clean Signal
- Supports Star Configuration Signal Distribution
- Wide Voltage Input Range (AC 90–240V, 50/60Hz)
- 19" Rack-Mountable 1U Metal Chassis
Model Specifications
- DMX Outputs: 8 Optically Isolated
- Signal Type: DMX512
- Signal Processing: Amplification and Regeneration
- Power Input: AC 90–240V, 50/60Hz
- Construction: Metal Housing
- Form Factor: 1U Rackmount
- Dimensions: 19.1 × 1.8 × 5.5 in (485 × 45 × 140 mm)
- Weight: 4.2 lb (1.9 kg)
What's In The Box
- Crisp DMX SPLITTER Unit
- Power Cable
- User Manual
Crisp DMX Splitter
(Crisp Splt-802)
