Weatherized Surface-Mount Installation Speaker

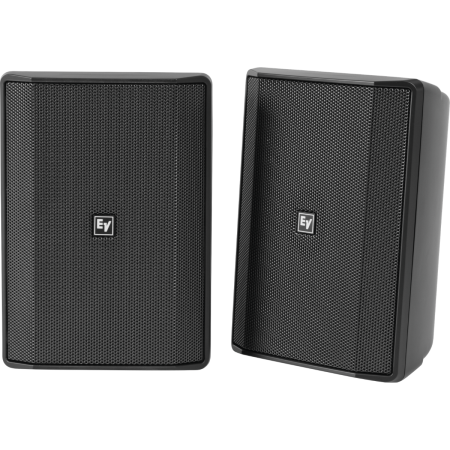

Electro-Voice EVID-S5.2XB is a black 5.25-inch two-way surface-mount speaker pair designed for demanding indoor and outdoor commercial audio systems. With IP65 weather resistance, a marine-grade aluminum grille, 70V/100V transformer operation, and flexible U-bracket mounting, it is ideal for patios, coastal areas, restaurants, bars, retail spaces, hospitality venues, theme parks, and other challenging installed sound applications.
Electro-Voice EVID-S5.2XB Competitive Differences
- IP65-rated weatherized construction with marine-grade aluminum grille for tough outdoor environments
- Integrated 60W transformer supports 70V/100V systems plus 8-ohm bypass
Electro-Voice EVID-S5.2XB Description
The Electro-Voice EVID-S5.2XB delivers full-range performance from a 5.25-inch long-throw woofer and 0.75-inch high-frequency transducer. Its 90° x 90° coverage pattern helps provide wide, uniform dispersion for background music, foreground audio, paging, voice evacuation, and sound reinforcement.
The built-in 60W transformer supports 70V and 100V distributed audio systems, with selectable taps of 7.5W on 70V only, plus 15W, 30W, and 60W. An 8-ohm bypass is also available for low-impedance operation, with tap selection located on the rear input panel.
Engineered for severe outdoor conditions, the EVID-S5.2XB features IP65 protection against sun, salt, and moisture. Its UL 94-5VB fire-rated ABS enclosure, marine-grade aluminum grille, and included U-bracket make it a durable solution for demanding commercial installations.
EVID-S5.2XB Features
- Black 5.25-inch two-way surface-mount speaker pair
- IP65-rated for tough indoor and outdoor environments
- Marine-grade aluminum grille
- UL 94-5VB fire-rated ABS plastic enclosure
- Long-throw 5.25-inch woofer for extended low-frequency performance
- 0.75-inch high-frequency transducer
- 90W power handling
- 108 dB maximum SPL / 114 dB peak
- 55 Hz – 20 kHz frequency range
- 90° x 90° nominal coverage
- Integrated 60W transformer for 70V/100V operation
- 8-ohm bypass for low-impedance systems

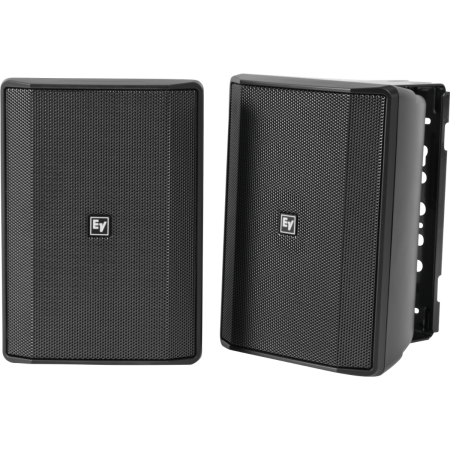

- Included U-bracket with 80° rotation
EVID-S5.2XB Specifications
- Speaker Type: Passive 2-Way Weatherized Surface-Mount Speaker Pair
- Frequency Range: 55 Hz – 20 kHz (-10 dB)
- Frequency Response: 90 Hz – 20 kHz (-3 dB)
- Max SPL: 108 dB Continuous / 114 dB Peak
- Sensitivity: 90 dB, 1W/1m
- Power Handling: 90W
- Transformer: 70V/100V, 60W
- Transformer Taps: 70V: 7.5W / 15W / 30W / 60W
- Transformer Taps: 100V: 15W / 30W / 60W
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 6 Ohms
- Coverage: 90° H x 90° V
- LF Driver: 5.25 in (122 mm)
- HF Driver: 0.75 in (20 mm)
- Recommended High Pass: 60 Hz
- Connector Type: Removable Locking 4-Pin Euroblock for Distributed Line Connection
- Maximum Wire Size: 12 AWG (2.5 mm²)
- Weatherized: Yes
- Environmental Rating: IP65
- Color: Black
- Dimensions: 10 x 7.1 x 5.8 in (255 x 180 x 148 mm)
- Net Weight: 7.1 lb (3.2 kg) per pair
- Shipping Weight: 20.9 lb (9.5 kg)
What's In The Box
- 2 x Electro-Voice EVID-S5.2XB Speakers
- U-Brackets
Electro-Voice EVID-S5.2XB
(Electro-Voice EVID-S5.2X)
